工業 / 製程
Industrial & Process
從濾芯、濾袋到過濾器殼體，製程過濾需要把濾材與設備一起考量。依處理介質、目標流量與安裝條件，討論產品搭配與系統配置；並提供中空纖維膜供應、濾心封裝及材料與水樣分析，配合設備整合與產品開發。Process filtration brings media and equipment together, from cartridges and filter bags to housings. Discuss product combinations and system configurations for your fluid, target flow rate and installation conditions. Hollow-fiber membrane supply, cartridge packaging, and material and water-sample analysis support equipment integration and product development.
情境示意圖（AI 生成），非實際產品／廠房照片或檢驗證據。Illustrative image (AI-generated), not a real product/facility photo or test evidence.
濾芯、濾袋與過濾器Cartridges, filter bags and housings
中空絲膜濾芯、熔噴濾芯、摺疊式濾芯、活性碳與燒結濾芯、PP 濾芯、濾袋，以及濾袋式與濾芯式過濾器。可封裝為多種濾心尺寸，彈性配合開發新樣式產品。
Hollow-fiber membrane cartridges, melt-blown cartridges, pleated cartridges, activated carbon and sintered cartridges, PP cartridges, filter bags, and bag-type and cartridge-type filters. Cartridges can be packaged in many sizes, and new formats can be developed flexibly.
客製化系統Customized systems
可依製程需求討論過濾系統配置；適用性與處理結果須依原水條件、目標規格及實際測試確認。
Filtration system configurations can be discussed for process requirements. Suitability and treatment results depend on feed conditions, target specifications and testing.
供應過濾模塊與濾筒製造商Supply to module and cartridge makers
膜淨將絲膜供應給過濾模塊製造商或筒式生產商，納入其最終產品中。
We supply the hollow fibers to filter-module or cartridge manufacturers, who build them into their end products.
產品特色 Key Features
- 膜材選擇：PES、Nylon（親水性）、PVDF、PP（疏水性）中空絲膜Membrane materials: PES and Nylon (hydrophilic), PVDF and PP (hydrophobic) hollow-fiber membranes
- 除菌的同時保有高流速，實際數值依型號而定（除菌結果見技術頁特定樣品的檢驗報告）Removes bacteria while keeping a high flow rate; figures depend on the model (bacteria-removal results: see the sample-specific test reports on the Technology page)
- 專業實驗室：提供各式客戶材料與水樣分析服務Laboratory support: analysis of customer materials and water samples
- 獨立生產線：自有產線Independent production line

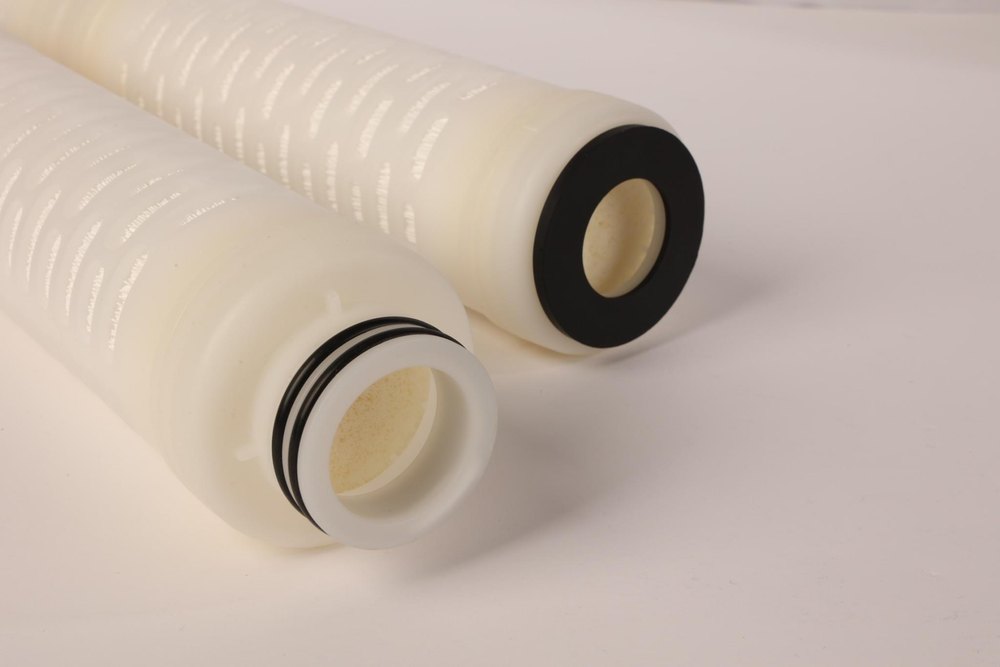

Industrial-use hollow-fiber membrane filter (MGN).
需要您製程的流量、壽命等數據？ Need flow-rate or lifetime figures for your process?
告訴我們應用與水質條件，我們會依適合的型號回覆可提供的規格與測試資料。
Tell us your application and water conditions; we will reply with the specifications and test data we can provide for a suitable model.
Mbranguard 中空纖維膜濾心（MGN 系列） Mbranguard hollow fiber membrane cartridge (MGN series)
用於關鍵製程的中空纖維膜濾心；型錄說明膜面積最高可達摺疊式膜濾心的 2 倍，10 吋濾心可達 20 吋摺疊濾心的表現。
A hollow-fiber membrane cartridge for critical applications. The datasheet states up to 2 times the surface area of pleated membrane cartridges, so that a 10" cartridge can match a 20" pleated cartridge.
- 材質：PES 膜、PP 殼體、PUR 封膠；O-ring 可選 EPDM／Viton／Silicon／TeflonMaterials: PES membrane, PP housing, PUR potting; O-ring EPDM / Viton / Silicon / Teflon
- 絕對過濾等級 60／100／200 nm；過濾面積 1.8 m²；操作溫度 4–40 °C；外徑 68 mmAbsolute removal rating 60 / 100 / 200 nm; filtration area 1.8 m²; operating temperature 4–40 °C; outer diameter 68 mm
- 長度 5／10／20／30／40 吋；端蓋：雙開口、222/Flat、222/Fin、226/Flat、226/FinLengths 5" / 10" / 20" / 30" / 40"; end caps: double open end, 222/Flat, 222/Fin, 226/Flat, 226/Fin
- 訂購碼：MGN＋過濾等級＋長度＋端蓋＋密封材，例如 MGN200-10F2S（型錄 V1R1，2025-04-08；規格可能變更，恕不另行通知）Order code: MGN + rating + length + end cap + seal, e.g. MGN200-10F2S (datasheet V1R1, 2025-04-08; specifications may change without notice)
出廠檢驗與原料資料 Release inspection and raw-material data
- 每批濾心出廠前檢驗：外觀（無污漬、裂紋、摺痕或皺褶）及漏測（4 psi、30 秒無洩漏、無可見氣泡）。Every batch is inspected before release: appearance (no stain, cracks, creases or wrinkles) and a leak test (no leaking or visible bubbles for 30 s at 4 psi).
- 每批原料檢驗資料由原料供應商逐批提供，對應 FDA 21 CFR 條目：PP 177.1520、PES 177.2440、PUR 177.1680、濾材 211.72、不脫落纖維濾材 210.3(b)(6)。Raw-material test data for each batch are provided by the raw-material suppliers, against FDA 21 CFR items: PP 177.1520, PES 177.2440, PUR 177.1680, filters 211.72, non-fiber-releasing filter 210.3(b)(6).
- COA 範例：MGN200-10F6T，LOT 241202001，2024-12-02 檢驗（0.2 μm）——外觀 Pass、漏測 Pass、原料 5 項 Pass；結果僅適用該批號受測產品。Example COA: MGN200-10F6T, LOT 241202001, inspected 2024-12-02 (0.2 μm) -- appearance Pass, leak test Pass, all 5 raw-material items Pass. The results apply only to the product tested and batched under that lot number.
- 第三方清潔度檢測：明基透析科技生物實驗室報告 BDT-NT-250802（2025-08-11 發行），依 21 CFR 210.3(b)(6) Nonfiber Releasing Filter——「鏡檢後，沒有發現雜質纖維」；僅適用該受測樣品，報告僅引用、不轉載。Third-party cleanliness test: BenQ Dialysis Technology Corp. biology lab report BDT-NT-250802 (issued 2025-08-11), per 21 CFR 210.3(b)(6) Nonfiber Releasing Filter -- "no impurity fibers found under microscopy". Applies to the tested sample only; the report is cited, not reproduced.
