產品 Products
中空纖維膜、濾芯與過濾設備 Hollow-Fiber Membranes, Cartridges & Filtration Equipment
微過濾中空纖維薄膜為主力產品，可封裝為多種濾心尺寸，彈性配合開發新樣式產品。Microfiltration hollow-fiber membranes are our main product, which can be packaged into cartridges of many sizes, and new formats are developed flexibly.
索取產品資料 Request Product Data 代工與客製洽詢 OEM & Customization Inquiry圖意：以中空纖維集束成形的意象，呈現膜材與封裝共同成就過濾產品品質的概念。Visual meaning: The bundled hollow fibers illustrate how membrane materials and module assembly together shape filtration product quality.
中空絲膜 Hollow Fiber Membranes
不同材質的中空絲膜是膜淨的主力產品。
Hollow-fiber membranes in different materials are our main product.
親水性高分子 Hydrophilic polymer
PES 聚醚碸 PES
中空絲膜材質之一。
One of our hollow-fiber membrane materials.
親水性高分子 Hydrophilic polymer
Nylon 聚醯胺（尼龍） Nylon
中空絲膜材質之一。
One of our hollow-fiber membrane materials.
疏水性高分子 Hydrophobic polymer
PVDF 聚偏二氟乙烯 PVDF
中空絲膜材質之一。
One of our hollow-fiber membrane materials.
疏水性高分子 Hydrophobic polymer
PP 聚丙烯 PP
中空絲膜材質之一。
One of our hollow-fiber membrane materials.
材質化學結構式，僅供示意。 Chemical structure diagrams, illustrative only.
各材質的孔徑、通量與適用條件依型號而異；規格資料請索取技術資料。
Pore size, flux and suitable conditions vary by model; please request technical data for specifications.
濾芯與濾袋 Filter Cartridges
可封裝為多種濾心尺寸，彈性配合開發新樣式產品。
Cartridges can be packaged in many sizes, and new formats are developed flexibly.

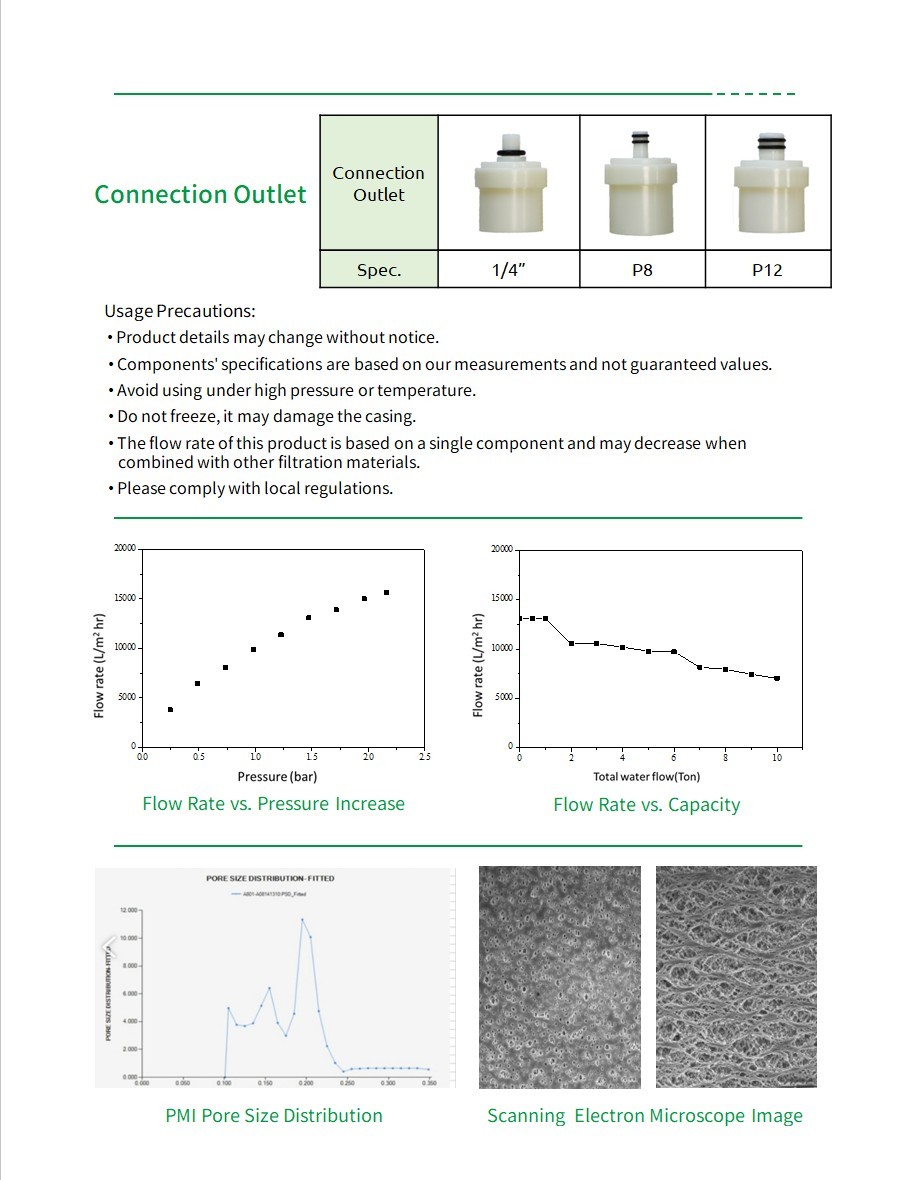

中空絲膜濾芯 Hollow-fiber cartridges

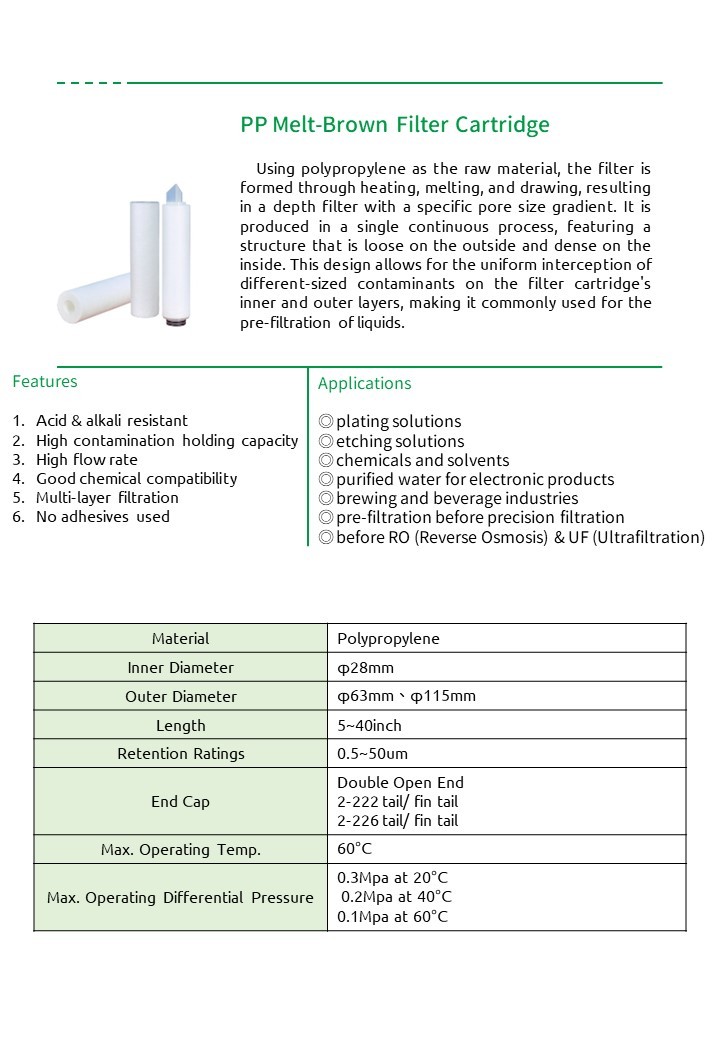

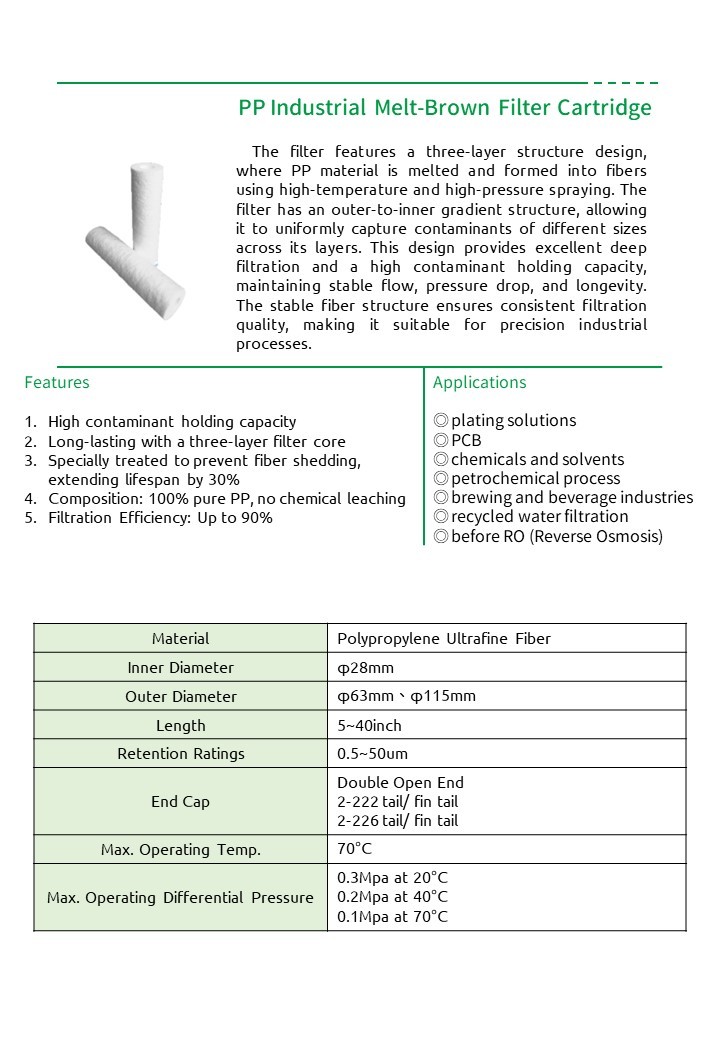

熔噴濾芯 Melt-blown cartridges

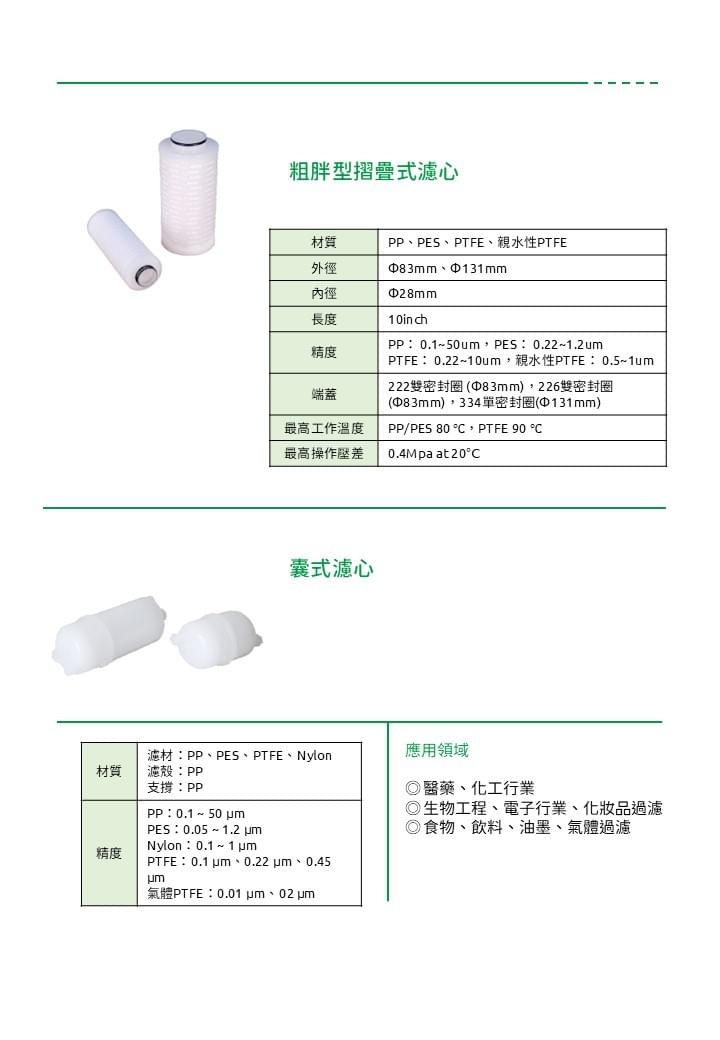

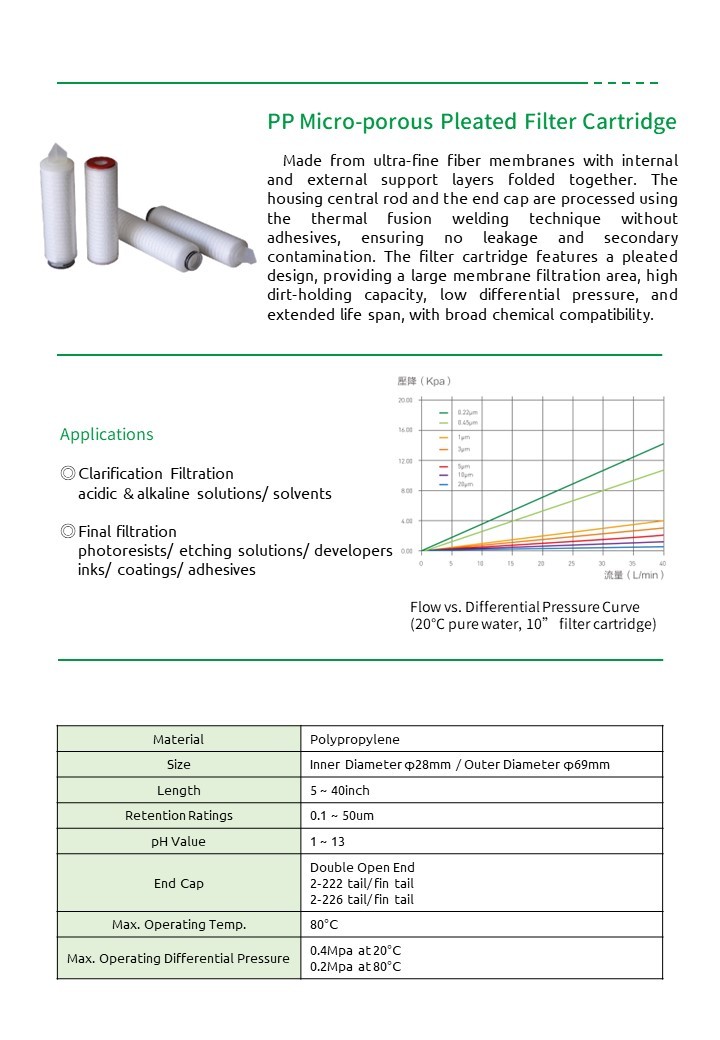

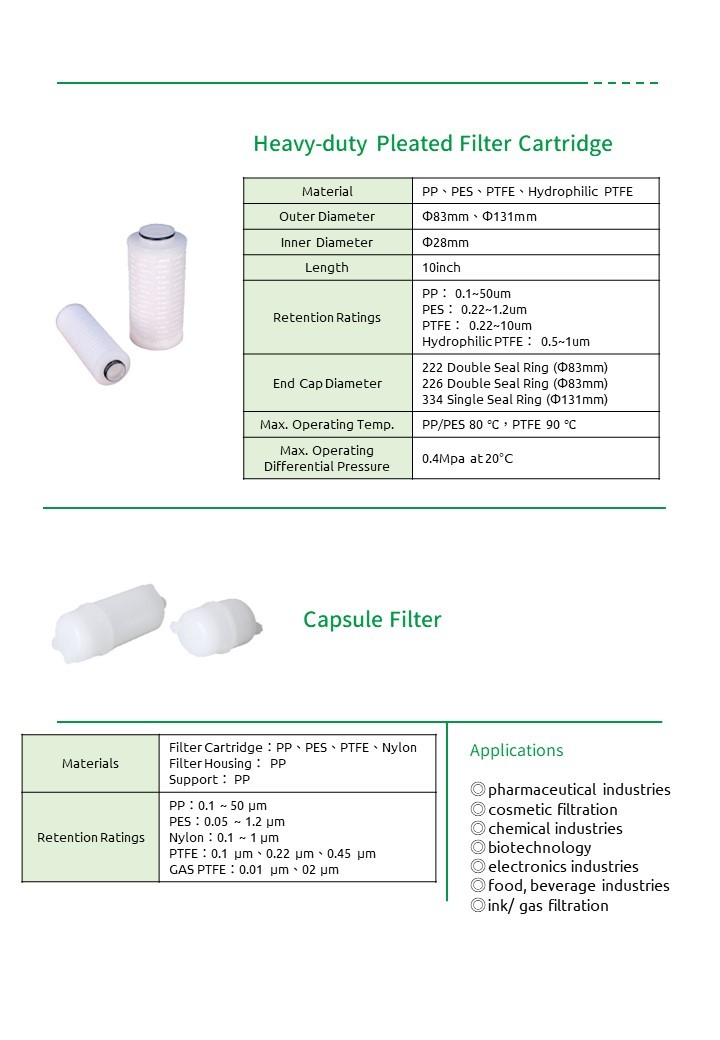

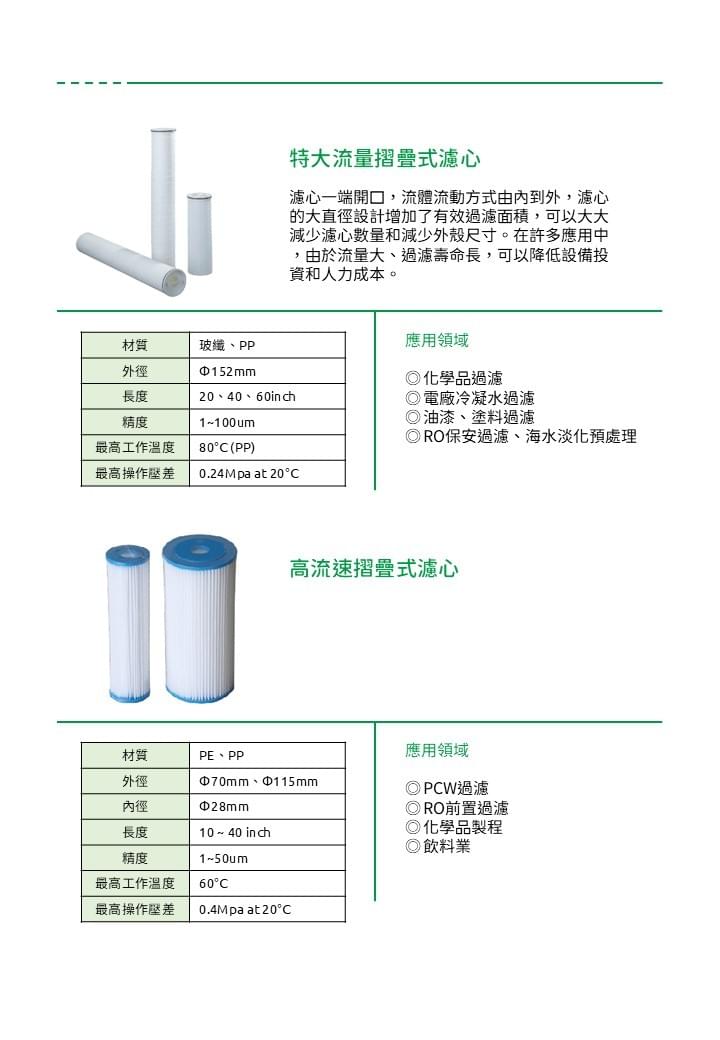

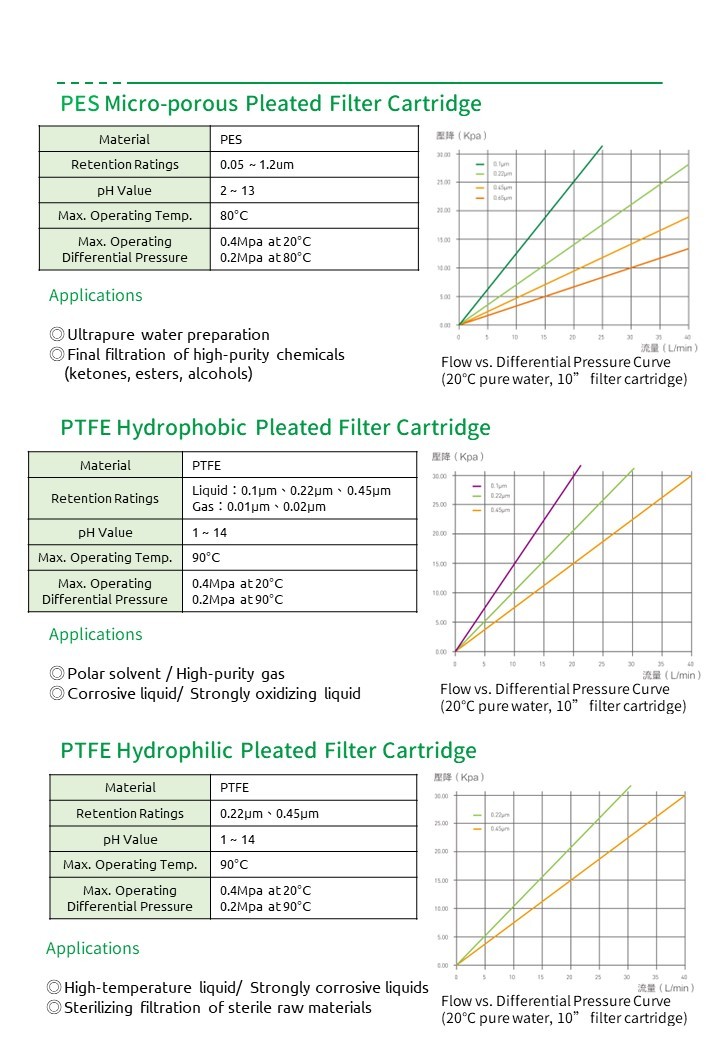

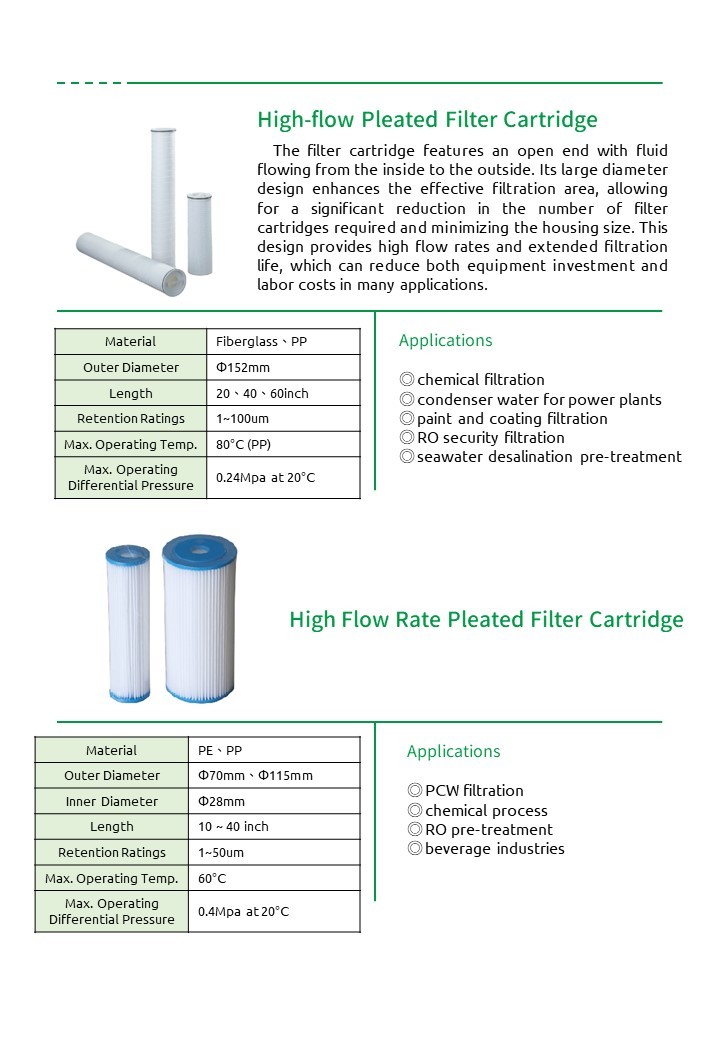

摺疊式濾芯 Pleated cartridges

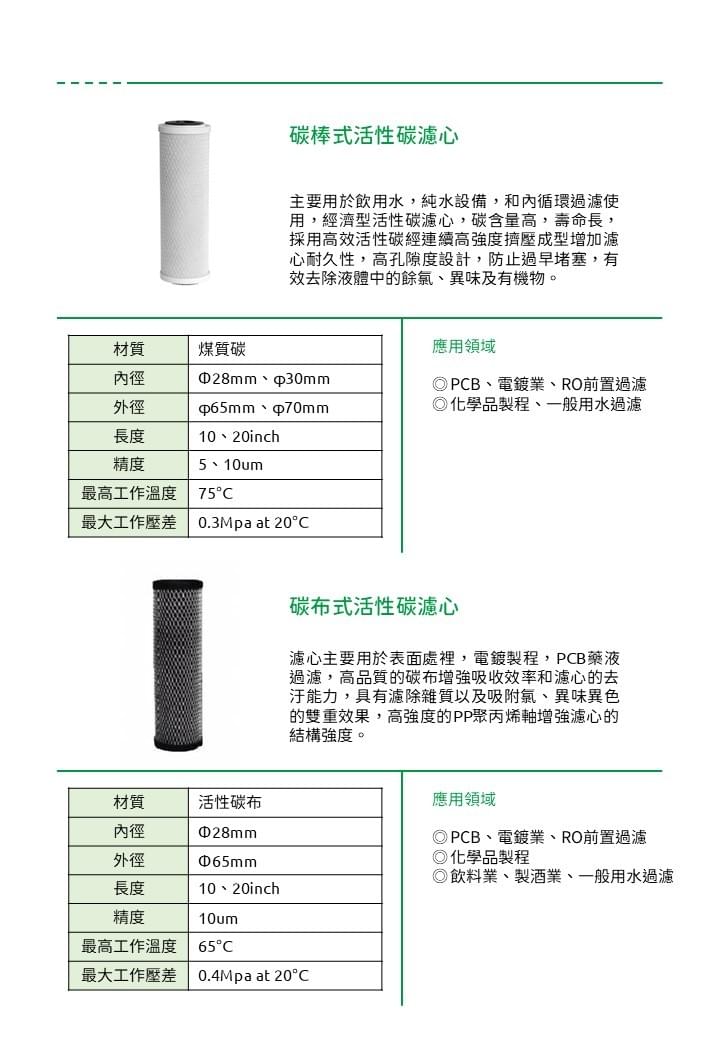

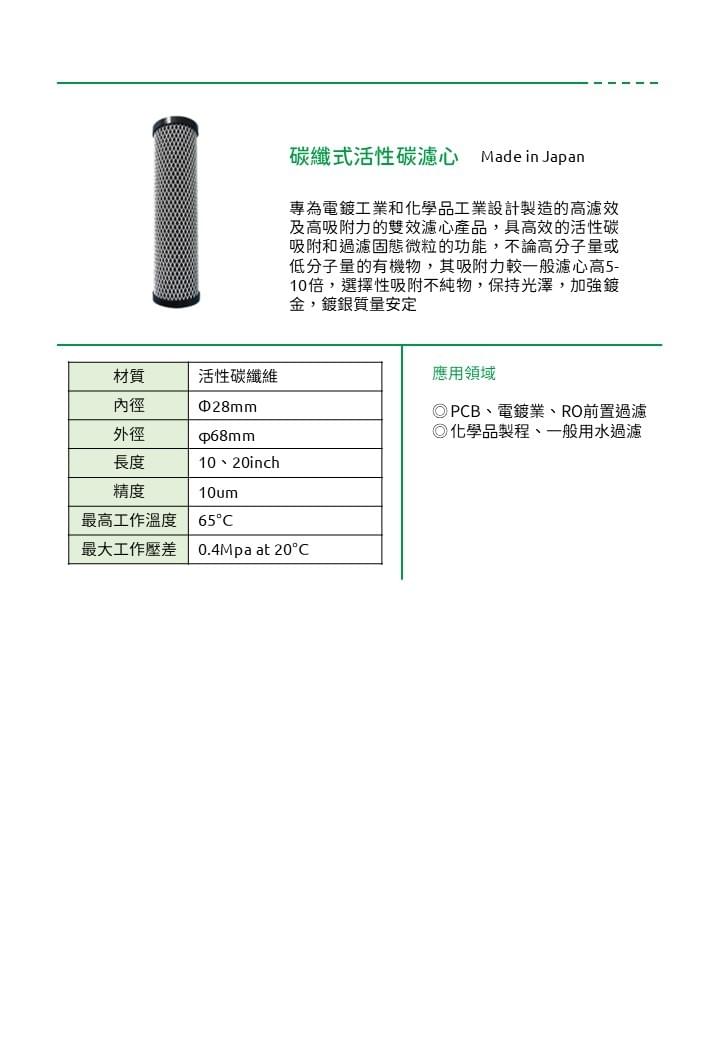

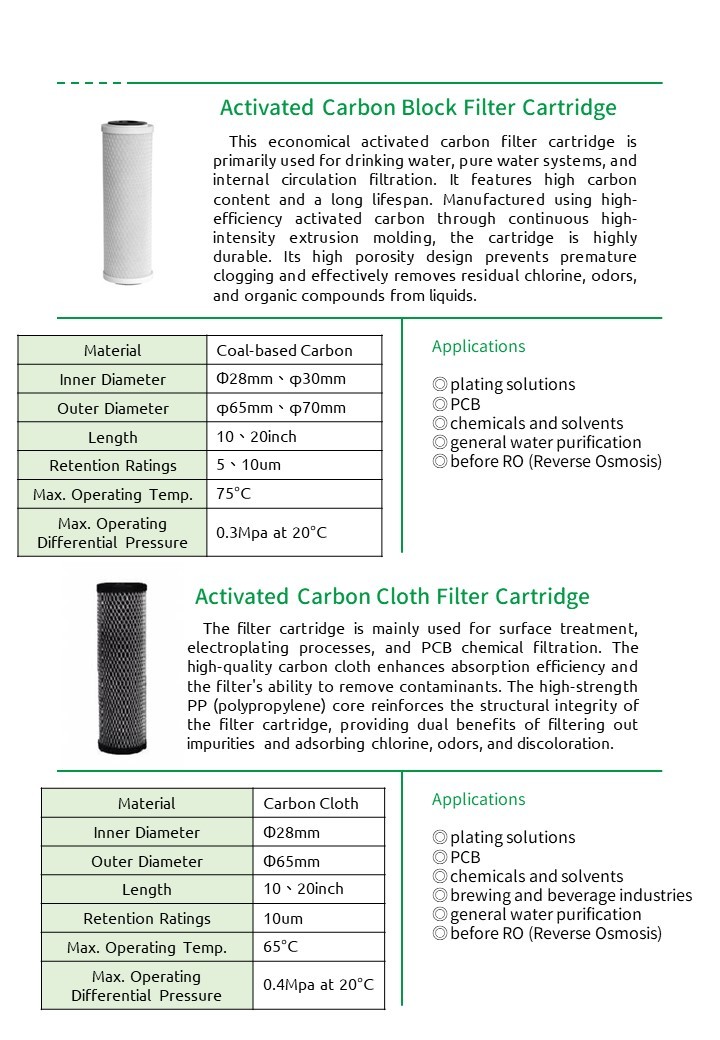

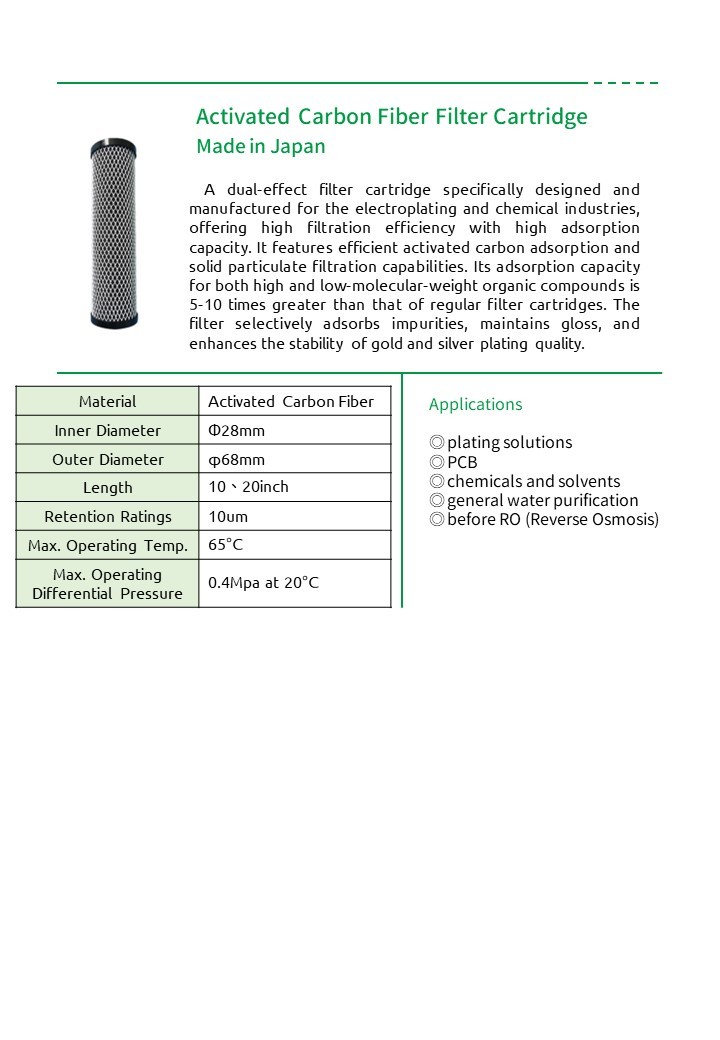

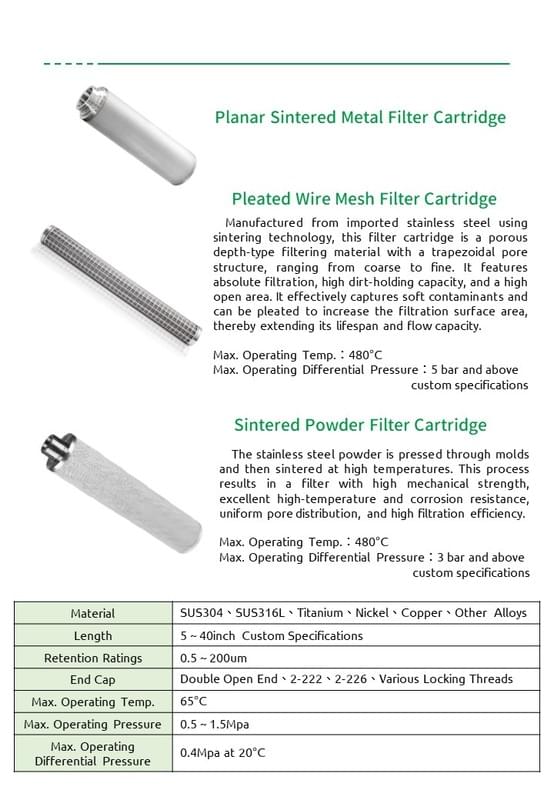

活性碳 & 燒結濾芯 Activated carbon & sintered cartridges
PP 濾芯 PP cartridges

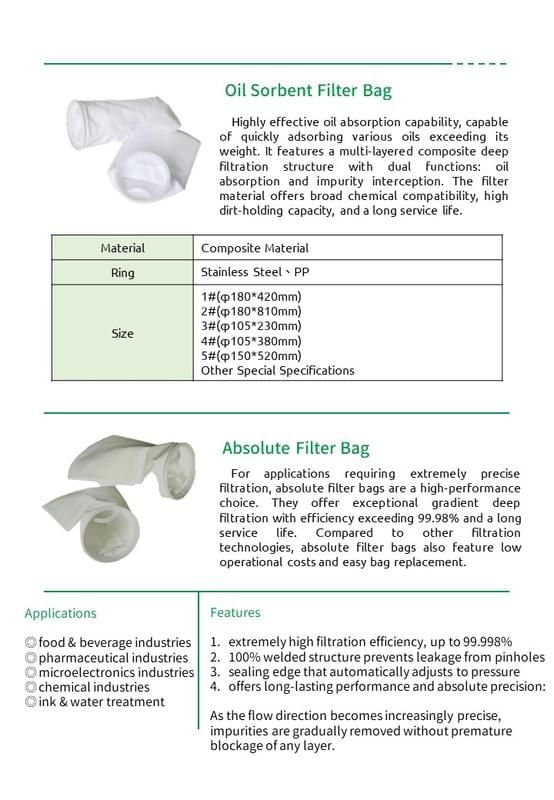

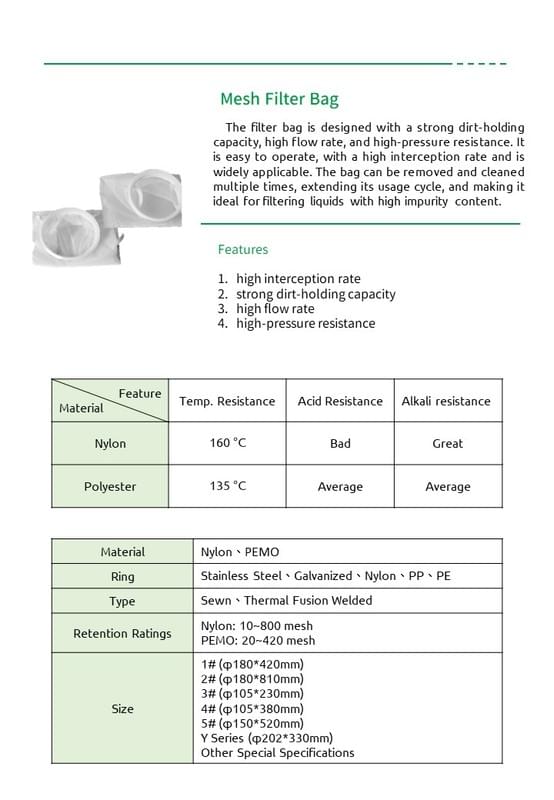

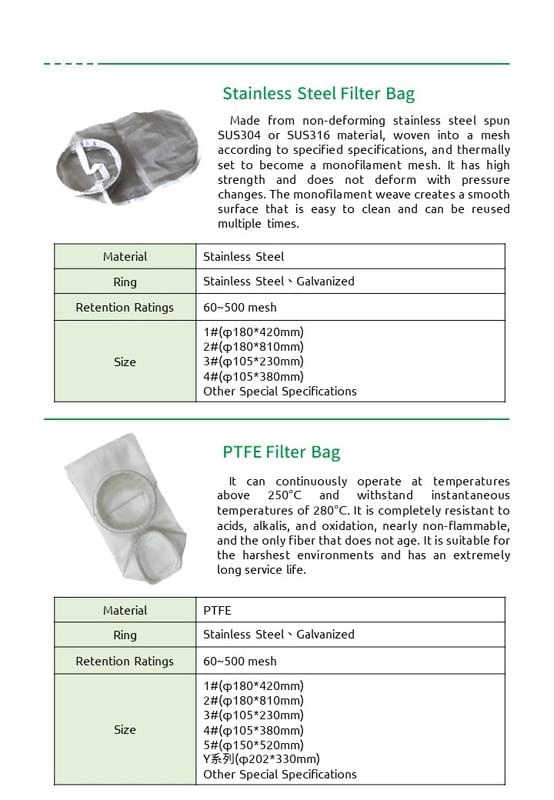

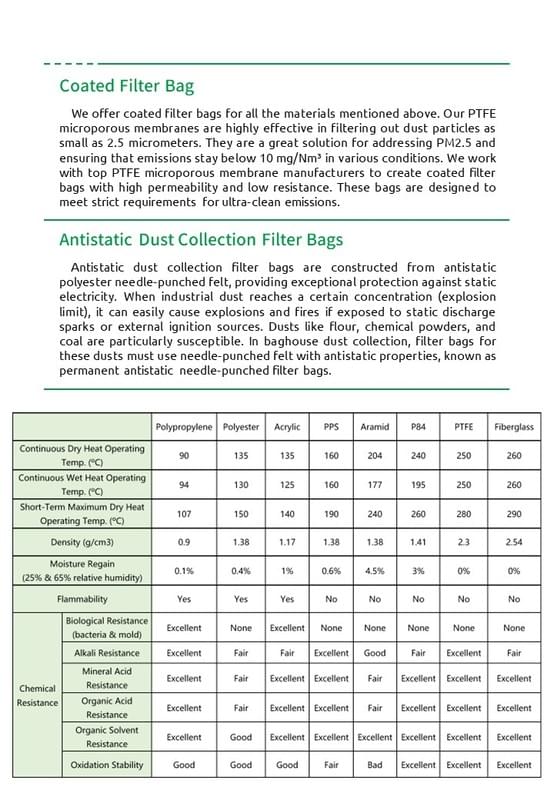

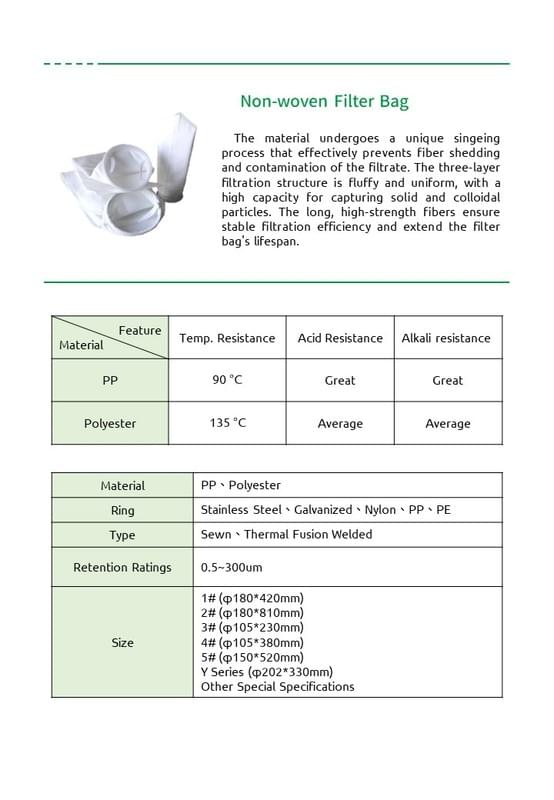

濾袋 / 濾袋式與濾芯式過濾器 Filter bags / bag-type and cartridge-type filters
消費產品 Consumer Products
戶外 · 2024 台灣精品獎銀質獎 Outdoor · 2024 Taiwan Excellence Silver Award
世界最小拇指型戶外隨身淨水器 World's smallest thumb-sized portable outdoor water filter
「世界最小」為 2024 年（第 32 屆）台灣精品銀質獎主辦單位使用的產品／獎項名稱，非工程量測數據。
"World's smallest" is the product/award name used by the 2024 Taiwan Excellence Awards (32nd, Silver Award) organizers, not a measured engineering figure.
164 克，可摺疊收納。
164 g, foldable for carrying.
2025 第 33 屆台灣精品獎 2025 (33rd) Taiwan Excellence Award
3R 隱藏式寶特瓶濾心 3R concealed PET-bottle filter cartridge
獲獎產品。規格與應用說明請索取產品資料。
Award-winning product. Please request product data for specifications and applications.
家用 Household
家用型水龍頭除菌淨水器 Faucet-mounted bacteria-removing water purifier
另有替換濾心 2 入組；採用 0.2 微米孔徑 MF-PES 中空纖維膜。
A replacement-cartridge 2-pack is also available; uses a 0.2 μm-pore MF-PES hollow-fiber membrane.
品牌聯名 · 黑熊學院 Co-branded · Kuma Academy (黑熊學院)
輕量行動淨水過濾器 / Kuma Drink 過濾水壺 Lightweight portable water filter / Kuma Drink filter bottle
可於黑熊學院、桃園嚴選 i OPEN Mall、T.Select 等通路購買。
Available through Kuma Academy (黑熊學院), 桃園嚴選 i OPEN Mall and T.Select.
依產業找產品 Find by Industry
依各規格卡型錄上所列的應用篩選下方卡片。卡片只會出現在其型錄有列出的產業；型錄沒有列應用的卡片，只會出現在「全部」。
Filters the spec cards below by the applications printed on each card's own source image. A card appears only under industries its source lists; cards whose source lists no application appear under "All" only.
濾殼與規格資料 Filter Housings & Spec Sheets
公司型錄中的濾殼與家用濾心。卡片列出重點；完整規格請展開「完整規格」或開啟型錄。
Housings and household cartridges from the company catalog. Each card lists key points; expand "Full spec" or open the original images for complete details.

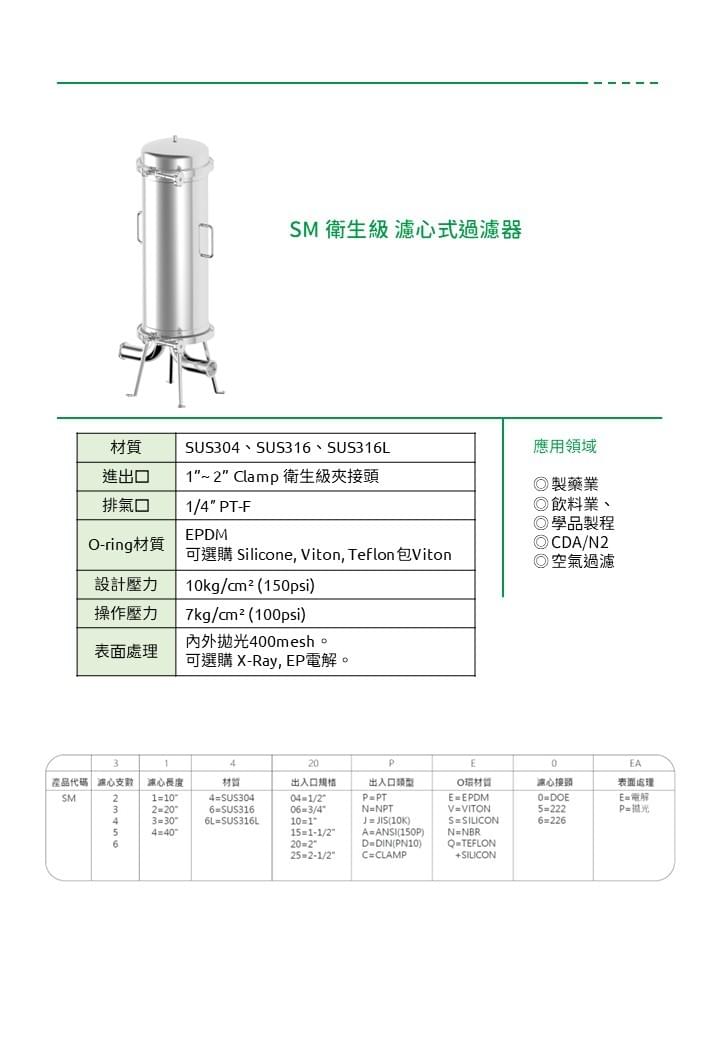

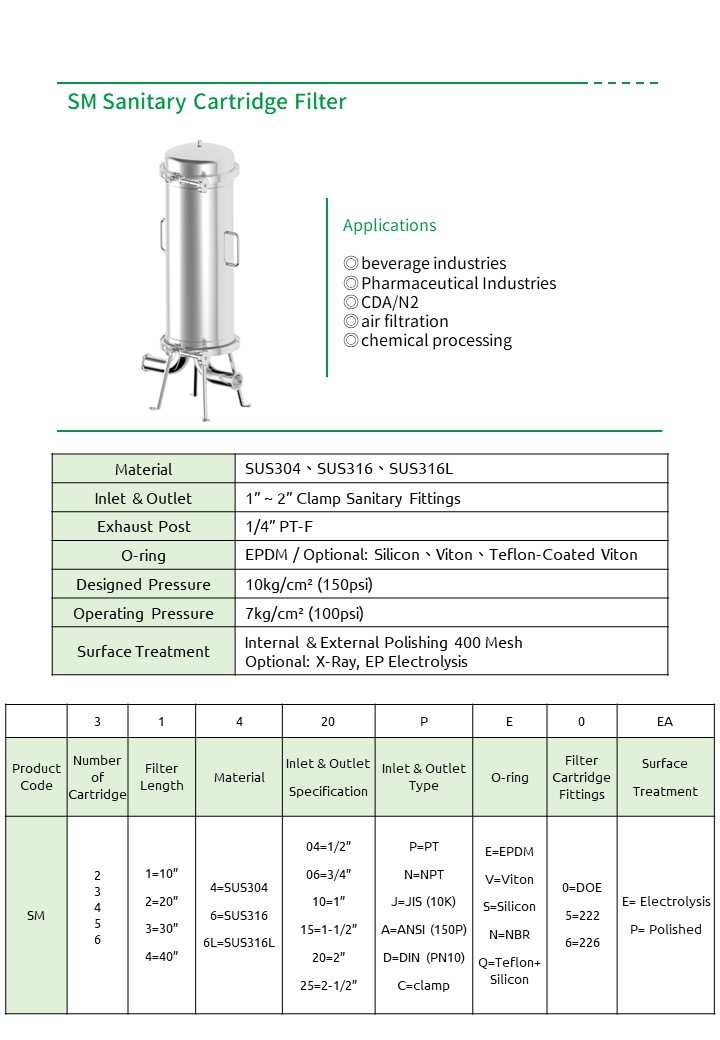

SM 衛生級 濾心式過濾器 SM — sanitary cartridge housing
- 2~6 支濾心，10"~40"；流量 3~24 m³/hr
- 材質 SUS304／SUS316／SUS316L；1"~2" 衛生級夾接頭
- 設計壓力 10 kg/cm²（150 psi）；操作壓力 7 kg/cm²（100 psi）
- 內外拋光 400 mesh
2–6 cartridges, 10"–40"; 3–24 m³/hr · SUS304 / SUS316 / SUS316L; 1"–2" sanitary clamp · Design 10 kg/cm² (150 psi); operating 7 kg/cm² (100 psi) · Internal & external polishing 400 mesh
完整規格 Full spec
- 型錄名稱：SM 衛生級濾心式過濾器。
- 型錄所列應用：飲料業、製藥業、CDA/N2、空氣過濾、化學品製程。
- 材質SUS304／SUS316／SUS316L；
- 進出口1"~2"衛生級夾接頭；
- 排氣口1/4" PT-F；
- O型環EPDM，可選Silicone、Viton或鐵氟龍包Viton；
- 設計壓力10 kg/cm²（150 psi）；
- 操作壓力7 kg/cm²（100 psi）；
- 表面處理內外拋光400 mesh，可選X光或EP電解。
- 訂購代碼：濾心支數2~6；
- 長度1~4＝10"／20"／30"／40"；
- 材質4／6／6L；
- 口徑04＝1/2"、06＝3/4"、10＝1"、15＝1-1/2"、20＝2"、25＝2-1/2"；
- 接頭P／N／J／A／D／C；
- O型環E／V／S／N／Q；
- 濾心接頭0＝DOE、5＝222、6＝226；
- 表面E電解、P拋光。

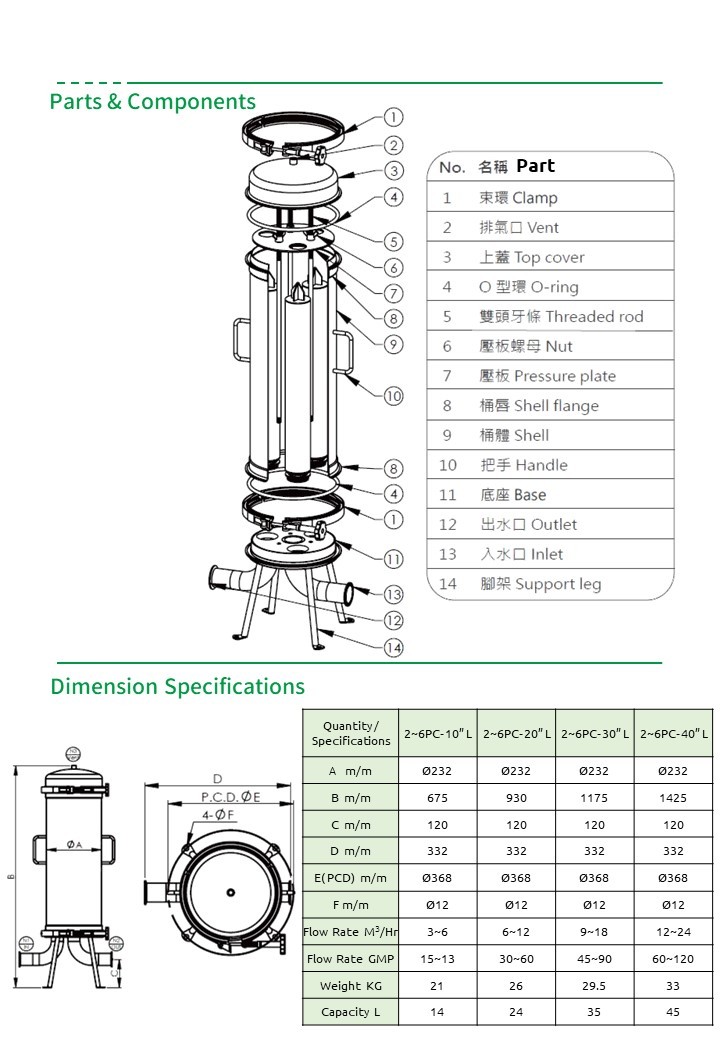

- 零件（14項，英文型錄中英對照圖）：束環、排氣口、上蓋、O型環、雙頭牙條、壓板螺母、壓板、桶唇、桶體、把手、底座、出水口、入水口、腳架。
- 尺寸（2~6支，10"／20"／30"／40"）：A Ø232；
- B 675／930／1175／1425 mm；
- C 120；
- D 332；
- E（PCD）Ø368；
- F Ø12；
- 流量3~6／6~12／9~18／12~24 m³/hr；
- 15~13（型錄如此，疑為誤植）／30~60／45~90／60~120 GPM；
- 重量21／26／29.5／33 kg；
- 容量14／24／35／45 L。
- Catalog name: SM Sanitary Cartridge Filter.
- Applications listed: beverage, pharmaceutical, CDA/N2, air filtration, chemical processing.
- Material SUS304 / SUS316 / SUS316L;
- inlet & outlet 1"–2" sanitary clamp fittings;
- exhaust port 1/4" PT-F;
- O-ring EPDM, optional silicone, Viton or Teflon-coated Viton;
- designed pressure 10 kg/cm² (150 psi);
- operating pressure 7 kg/cm² (100 psi);
- surface internal & external polishing 400 mesh, optional X-ray or EP electrolysis.
- Ordering code: cartridges 2–6;
- length 1–4 = 10"/20"/30"/40";
- material 4 / 6 / 6L;
- size 04 = 1/2", 06 = 3/4", 10 = 1", 15 = 1-1/2", 20 = 2", 25 = 2-1/2";
- connection P / N / J / A / D / C;
- O-ring E / V / S / N / Q;
- cartridge fitting 0 = DOE, 5 = 222, 6 = 226;
- finish E electrolysis, P polished.
- Parts (14, bilingual, English-site drawing): clamp, vent, top cover, O-ring, threaded rod, nut, pressure plate, shell flange, shell, handle, base, outlet, inlet, support leg.
- Dimensions for 2–6 cartridges at 10" / 20" / 30" / 40": A Ø232;
- B 675 / 930 / 1175 / 1425 mm;
- C 120;
- D 332;
- E (PCD) Ø368;
- F Ø12;
- flow 3–6 / 6–12 / 9–18 / 12–24 m³/hr;
- 15–13 (as printed;
- likely a typo) / 30–60 / 45–90 / 60–120 GPM;
- weight 21 / 26 / 29.5 / 33 kg;
- capacity 14 / 24 / 35 / 45 L.
開啟型錄原圖 Open original image中文English中英 / ZH–EN
下載型錄原圖 Download original image中文English中英 / ZH–EN

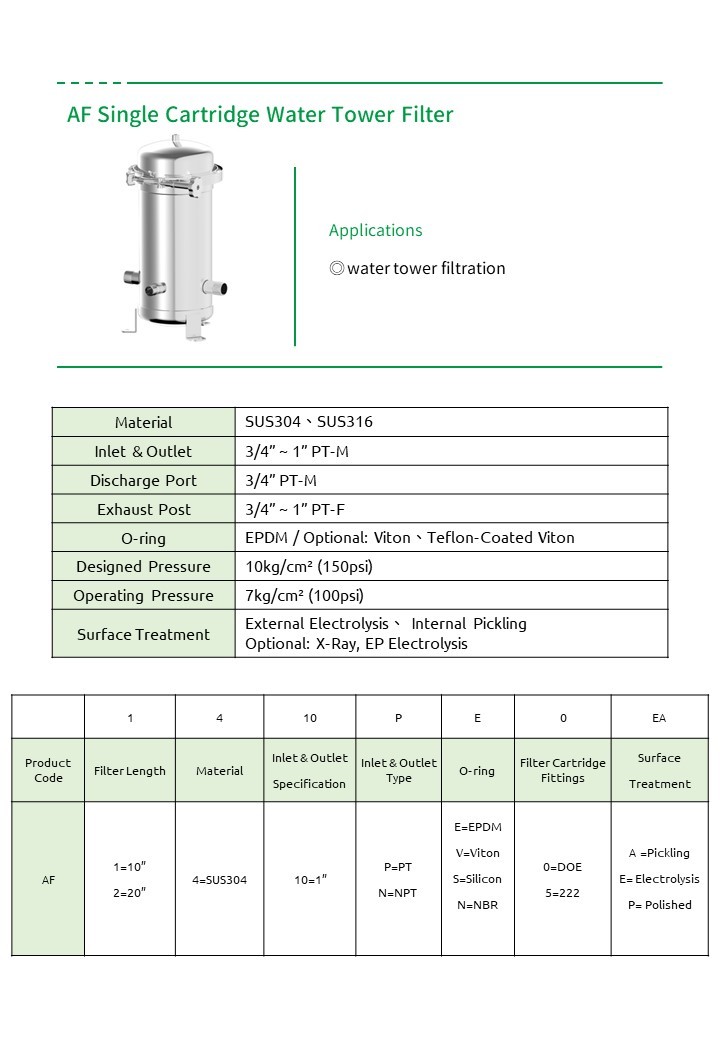

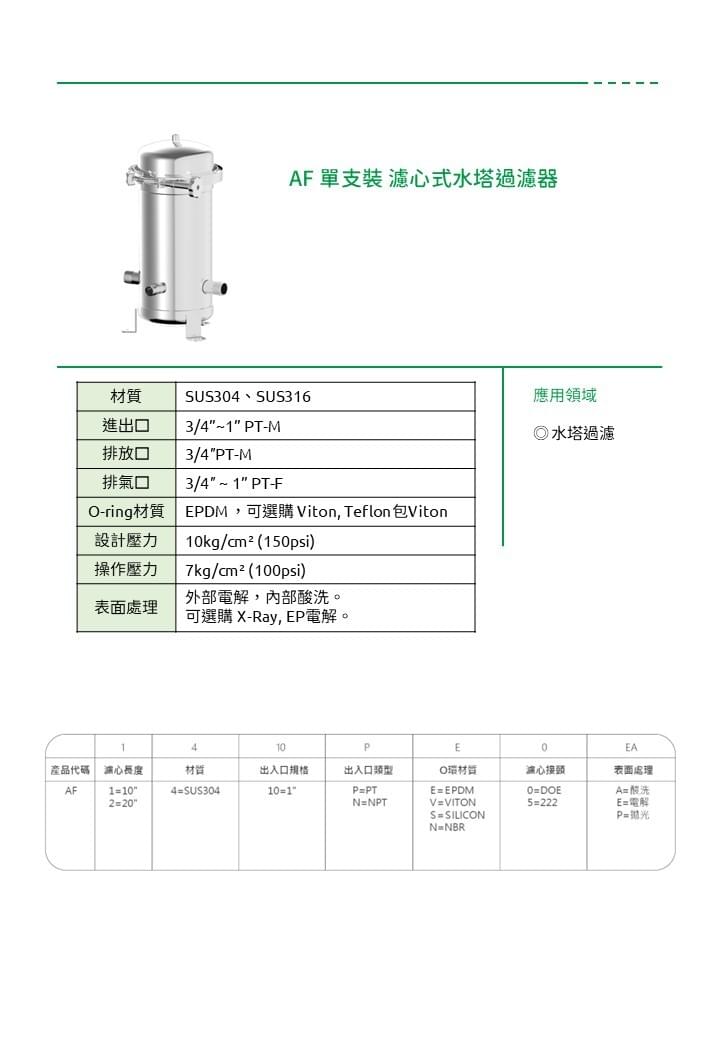

AF 單支裝 濾心式水塔過濾器 AF — single-cartridge water-tower housing
- 單支濾心，10" 或 20"，用於水塔過濾
- 材質 SUS304／SUS316；進出口 3/4"~1" PT-M
- 設計壓力 10 kg/cm²（150 psi）；操作壓力 7 kg/cm²（100 psi）
- 規格表與訂購代碼的材質／口徑不一致，見完整規格
Single cartridge, 10" or 20", for water towers · SUS304 / SUS316; 3/4"–1" PT-M · Design 10 kg/cm² (150 psi); operating 7 kg/cm² (100 psi) · Spec table and ordering codes differ on material/size — see full spec
完整規格 Full spec
- 型錄名稱：AF 單支裝濾心式水塔過濾器。
- 型錄所列應用：水塔過濾。
- 材質SUS304／SUS316；
- 進出口3/4"~1" PT-M；
- 排放口3/4" PT-M；
- 排氣口3/4"~1" PT-F；
- O型環EPDM，可選Viton或鐵氟龍包Viton；
- 設計壓力10 kg/cm²（150 psi）；
- 操作壓力7 kg/cm²（100 psi）；
- 表面處理外部電解、內部酸洗，可選X光或EP電解。
- 訂購代碼：長度1＝10"、2＝20"；
- 材質4＝SUS304；
- 口徑10＝1"；
- 接頭P＝PT、N＝NPT；
- O型環E／V／S／N；
- 濾心接頭0＝DOE、5＝222；
- 表面A酸洗、E電解、P拋光。
- 註：規格表列有SUS316與3/4"，訂購代碼卻只有SUS304與1"，照型錄並列，此處不判定。

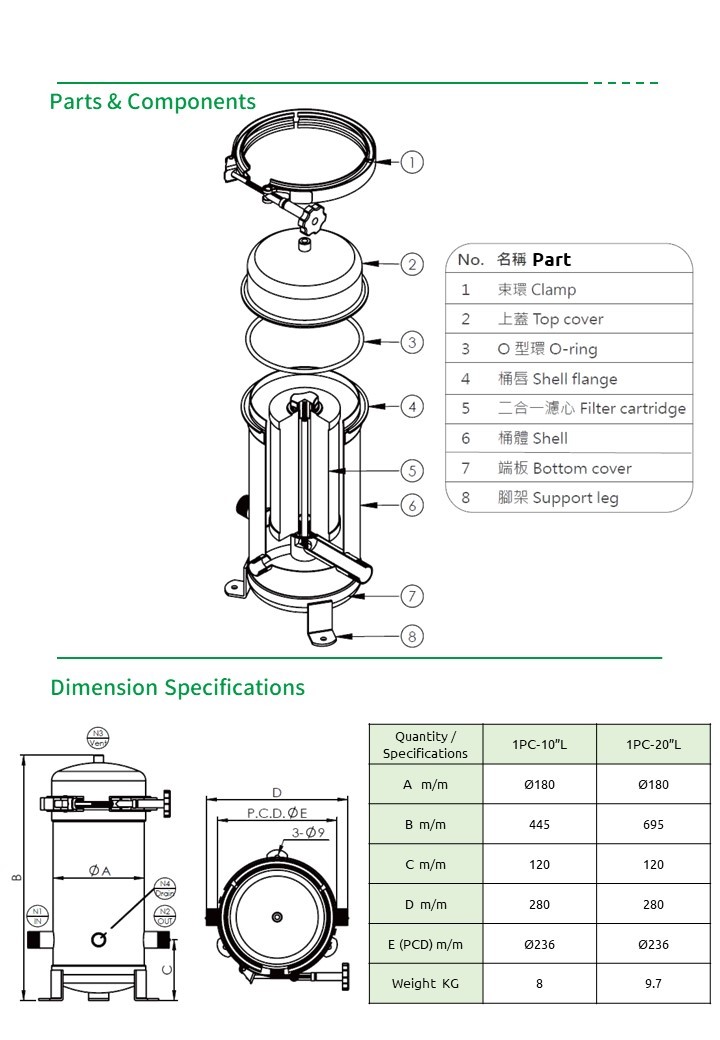

- 零件（8項，英文型錄中英對照圖）：束環、上蓋、O型環、桶唇、二合一濾心、桶體、端板、腳架。
- 尺寸1PC-10"／1PC-20"：A Ø180／Ø180；
- B 445／695 mm；
- C 120；
- D 280；
- E（PCD）Ø236；
- 重量8／9.7 kg。
- Catalog name: AF Single Cartridge Water Tower Filter.
- Application listed: water tower filtration.
- Material SUS304 / SUS316;
- inlet & outlet 3/4"–1" PT-M;
- discharge port 3/4" PT-M;
- exhaust port 3/4"–1" PT-F;
- O-ring EPDM, optional Viton or Teflon-coated Viton;
- designed pressure 10 kg/cm² (150 psi);
- operating pressure 7 kg/cm² (100 psi);
- surface external electrolysis and internal pickling, optional X-ray or EP electrolysis.
- Ordering code: length 1 = 10", 2 = 20";
- material 4 = SUS304;
- size 10 = 1";
- connection P = PT, N = NPT;
- O-ring E / V / S / N;
- cartridge fitting 0 = DOE, 5 = 222;
- finish A pickling, E electrolysis, P polished.
- Note: the spec table lists SUS316 and 3/4" connections, but the ordering codes only list SUS304 and 1" — shown as printed, not resolved here.
- Parts (8, bilingual, English-site drawing): clamp, top cover, O-ring, shell flange, 2-in-1 filter cartridge, shell, bottom cover, support leg.
- Dimensions 1PC-10" / 1PC-20": A Ø180 / Ø180;
- B 445 / 695 mm;
- C 120;
- D 280;
- E (PCD) Ø236;
- weight 8 / 9.7 kg.
開啟型錄原圖 Open original image中文English中英 / ZH–EN
下載型錄原圖 Download original image中文English中英 / ZH–EN

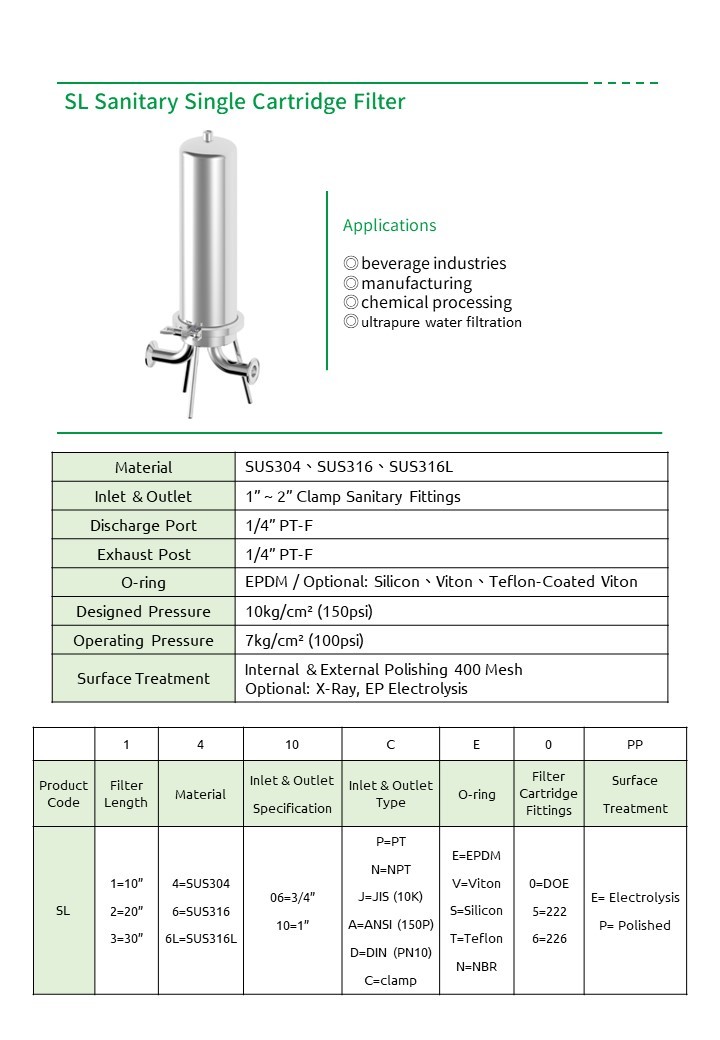

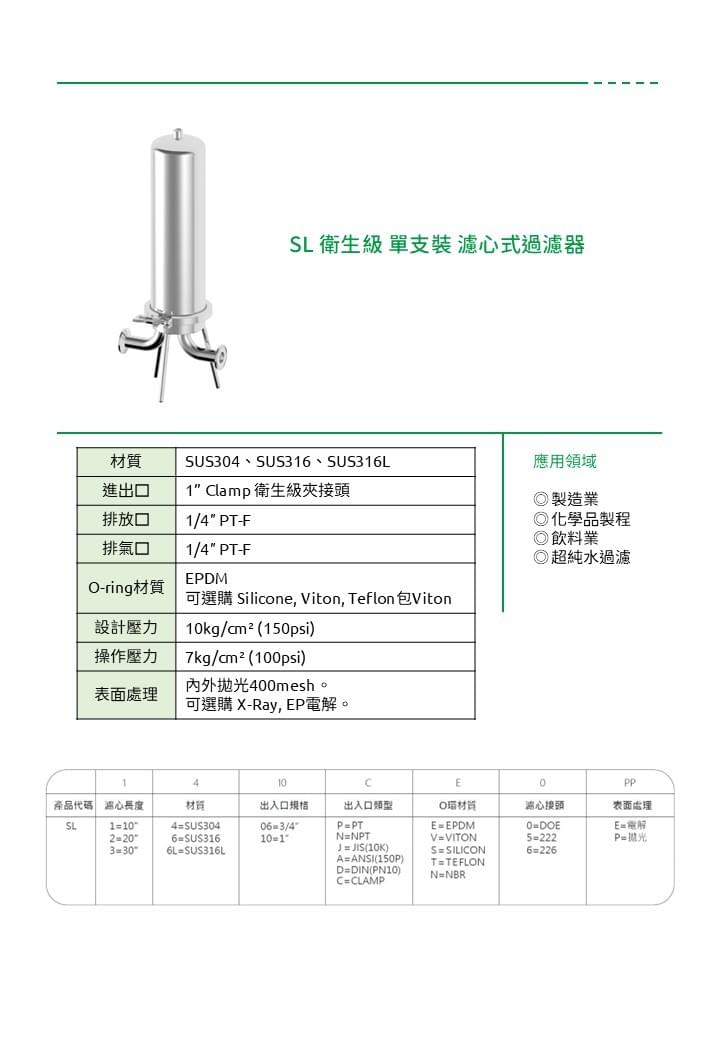

SL 衛生級 單支裝 濾心式過濾器 SL — sanitary single-cartridge housing
- 單支濾心，10"／20"／30"；流量 1~3 m³/hr
- 材質 SUS304／SUS316／SUS316L；衛生級夾接頭（兩份型錄不一致：1" 與 1"~2"）
- 設計壓力 10 kg/cm²（150 psi）；操作壓力 7 kg/cm²（100 psi）
- 內外拋光 400 mesh
Single cartridge, 10"/20"/30"; 1–3 m³/hr · SUS304 / SUS316 / SUS316L; sanitary clamp (sites differ: 1" vs 1"–2") · Design 10 kg/cm² (150 psi); operating 7 kg/cm² (100 psi) · Internal & external polishing 400 mesh
完整規格 Full spec
- 型錄名稱：SL 衛生級單支裝濾心式過濾器。
- 型錄所列應用：飲料業、製造業、化學品製程、超純水過濾。
- 材質SUS304／SUS316／SUS316L；
- 進出口：中文型錄規格寫1"衛生級夾接頭，英文型錄寫1"~2"衛生級夾接頭，而兩份型錄訂購代碼都只列06＝3/4"、10＝1"——照型錄並列，此處不判定。
- 排放口1/4" PT-F；
- 排氣口1/4" PT-F；
- O型環EPDM，可選Silicone、Viton或鐵氟龍包Viton；
- 設計壓力10 kg/cm²（150 psi）；
- 操作壓力7 kg/cm²（100 psi）；
- 表面處理內外拋光400 mesh，可選X光或EP電解。
- 訂購代碼：長度1~3＝10"／20"／30"；
- 材質4／6／6L；
- 口徑06＝3/4"、10＝1"；
- 接頭P／N／J／A／D／C；
- O型環E／V／S／T（鐵氟龍）／N；
- 濾心接頭0＝DOE、5＝222、6＝226；
- 表面E電解、P拋光。

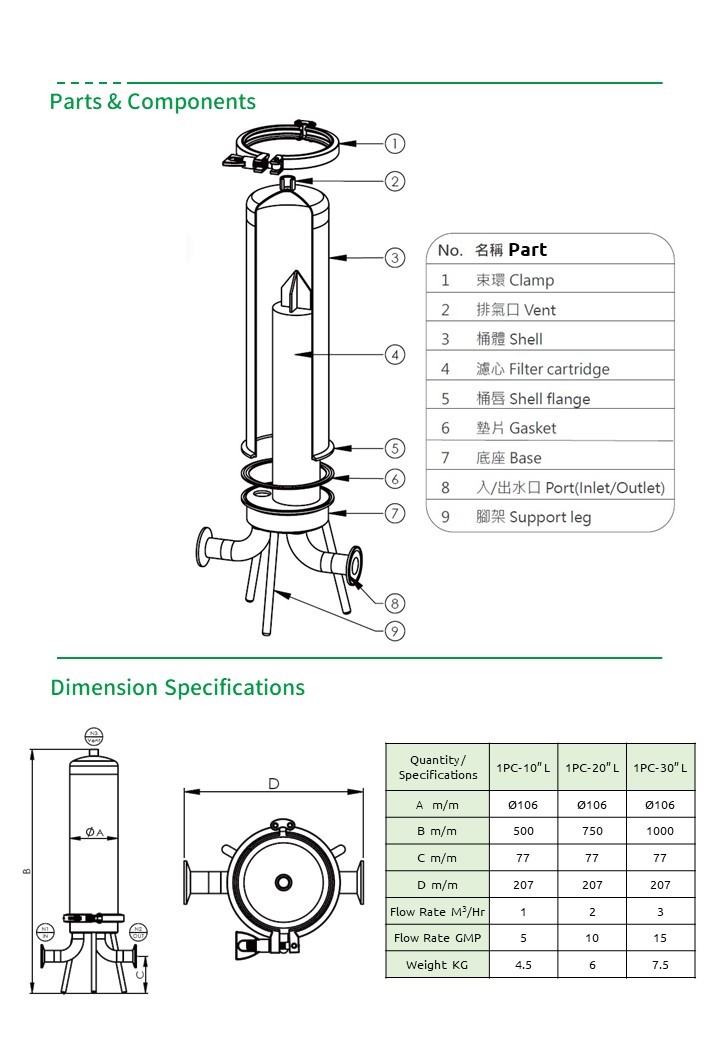

- 零件（9項，英文型錄中英對照圖）：束環、排氣口、桶體、濾心、桶唇、墊片、底座、入/出水口、腳架。
- 尺寸1PC-10"／20"／30"：A Ø106；
- B 500／750／1000 mm；
- C 77；
- D 207；
- 流量1／2／3 m³/hr；
- 5／10／15 GPM；
- 重量4.5／6／7.5 kg。
- Catalog name: SL Sanitary Single Cartridge Filter.
- Applications listed: beverage, manufacturing, chemical processing, ultrapure water filtration.
- Material SUS304 / SUS316 / SUS316L;
- inlet & outlet: the Chinese-site sheet says 1" sanitary clamp, the English-site sheet says 1"–2" sanitary clamp fittings, and both sites' ordering codes list only 06 = 3/4" and 10 = 1" — shown as printed, not resolved here.
- Discharge port 1/4" PT-F;
- exhaust port 1/4" PT-F;
- O-ring EPDM, optional silicone, Viton or Teflon-coated Viton;
- designed pressure 10 kg/cm² (150 psi);
- operating pressure 7 kg/cm² (100 psi);
- surface internal & external polishing 400 mesh, optional X-ray or EP electrolysis.
- Ordering code: length 1–3 = 10"/20"/30";
- material 4 / 6 / 6L;
- size 06 = 3/4", 10 = 1";
- connection P / N / J / A / D / C;
- O-ring E / V / S / T (Teflon) / N;
- cartridge fitting 0 = DOE, 5 = 222, 6 = 226;
- finish E electrolysis, P polished.
- Parts (9, bilingual, English-site drawing): clamp, vent, shell, filter cartridge, shell flange, gasket, base, inlet/outlet port, support leg.
- Dimensions 1PC-10" / 20" / 30": A Ø106;
- B 500 / 750 / 1000 mm;
- C 77;
- D 207;
- flow 1 / 2 / 3 m³/hr;
- 5 / 10 / 15 GPM;
- weight 4.5 / 6 / 7.5 kg.
開啟型錄原圖 Open original image中文English中英 / ZH–EN
下載型錄原圖 Download original image中文English中英 / ZH–EN

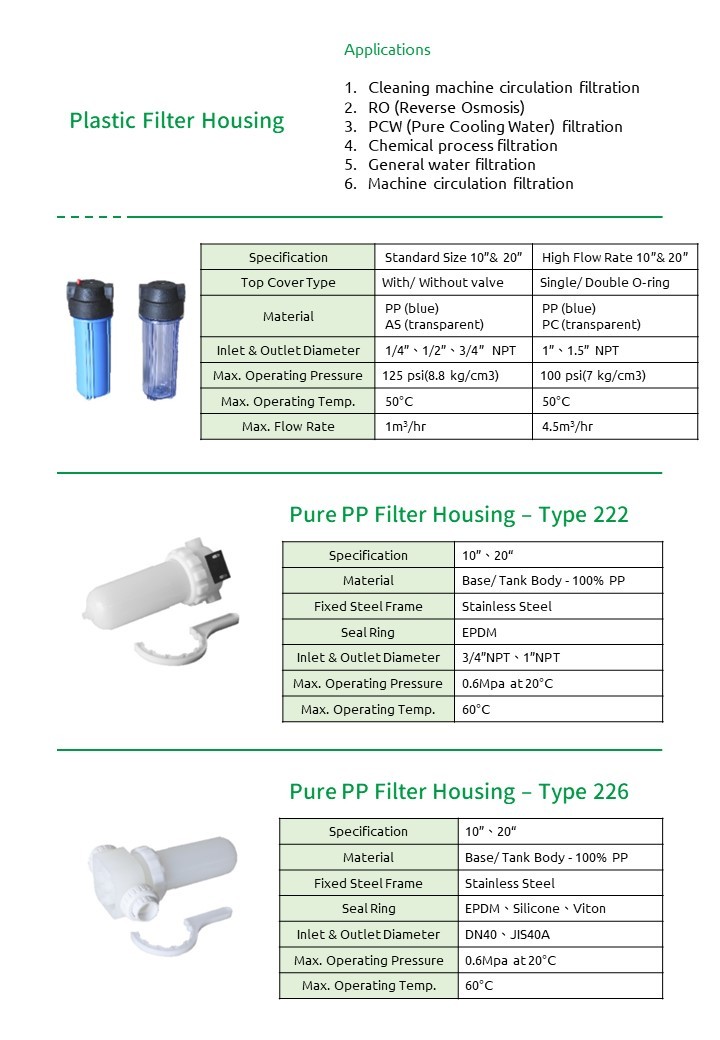

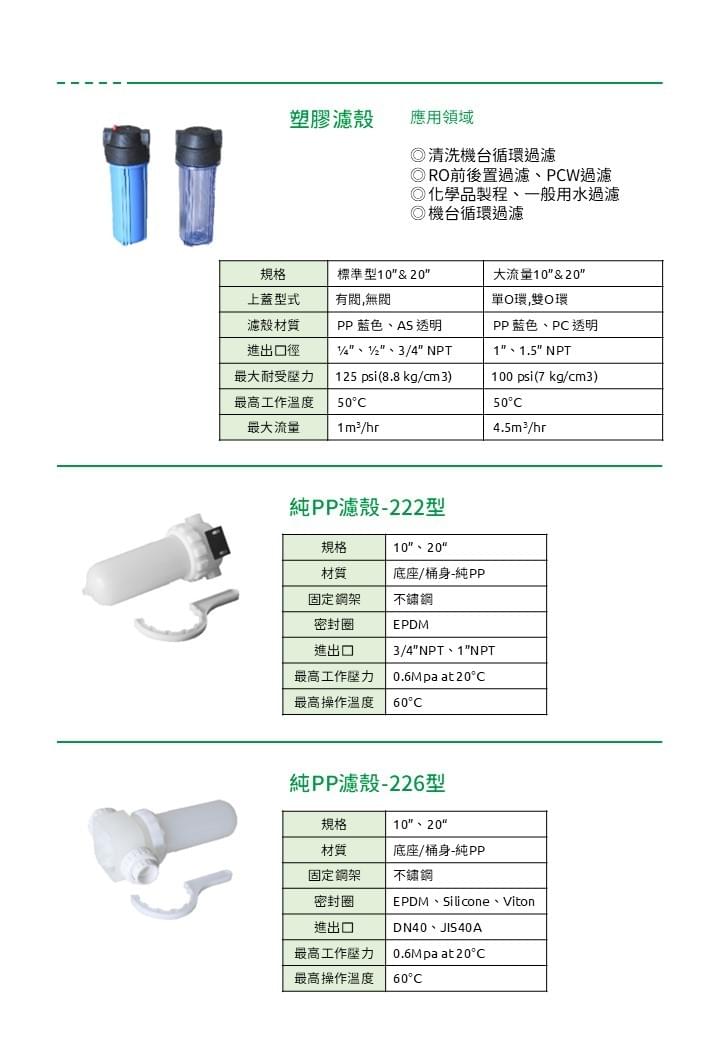

塑膠濾殼 / 純PP濾殼 222型・226型 Plastic housings & pure-PP housings (222 / 226 type)
- 塑膠濾殼：標準型（1 m³/hr）或大流量型（4.5 m³/hr），10"／20"，耐溫 50°C
- 純 PP 222 型：3/4"~1" NPT，0.6 MPa @20°C，60°C
- 純 PP 226 型：DN40／JIS40A，0.6 MPa @20°C，60°C
Plastic housings: standard (1 m³/hr) or high-flow (4.5 m³/hr), 10"/20", 50°C · Pure-PP 222 type: 3/4"–1" NPT, 0.6 MPa @20°C, 60°C · Pure-PP 226 type: DN40 / JIS40A, 0.6 MPa @20°C, 60°C
完整規格 Full spec
- 塑膠濾殼：標準型10"/20"（PP藍色／AS透明，¼"~¾" NPT，最大耐壓125psi/8.8kg/cm²（兩份型錄單位皆印為「kg/cm3」），最大流量1m³/hr）或大流量型10"/20"（PP藍色／PC透明，1"~1.5" NPT，最大耐壓100psi/7kg/cm²，最大流量4.5m³/hr），皆耐溫50°C。
- 純PP濾殼-222型：10"/20"，底座/桶身純PP，不鏽鋼固定鋼架，EPDM密封圈，3/4"NPT、1"NPT，最高工作壓力0.6MPa at 20°C，最高操作溫度60°C。
- 純PP濾殼-226型：10"/20"，同款底座/桶身/鋼架，EPDM／Silicone／Viton密封圈，DN40、JIS40A，最高工作壓力0.6MPa at 20°C，最高操作溫度60°C。
- Plastic housing: standard 10"/20" (PP blue / AS clear, ¼"–¾" NPT, 125 psi / 8.8 kg/cm² max (both sites print the unit as "kg/cm3"), 1 m³/hr) or high-flow 10"/20" (PP blue / PC clear, 1"–1.5" NPT, 100 psi / 7 kg/cm² max, 4.5 m³/hr);
- both rated to 50°C.
- Pure-PP housing, 222 type: 10"/20", PP base and body, stainless steel bracket, EPDM seal, 3/4"–1" NPT, 0.6 MPa @ 20°C, 60°C max.
- Pure-PP housing, 226 type: 10"/20", same base/body/bracket, EPDM/Silicone/Viton seal, DN40/JIS40A, 0.6 MPa @ 20°C, 60°C max.

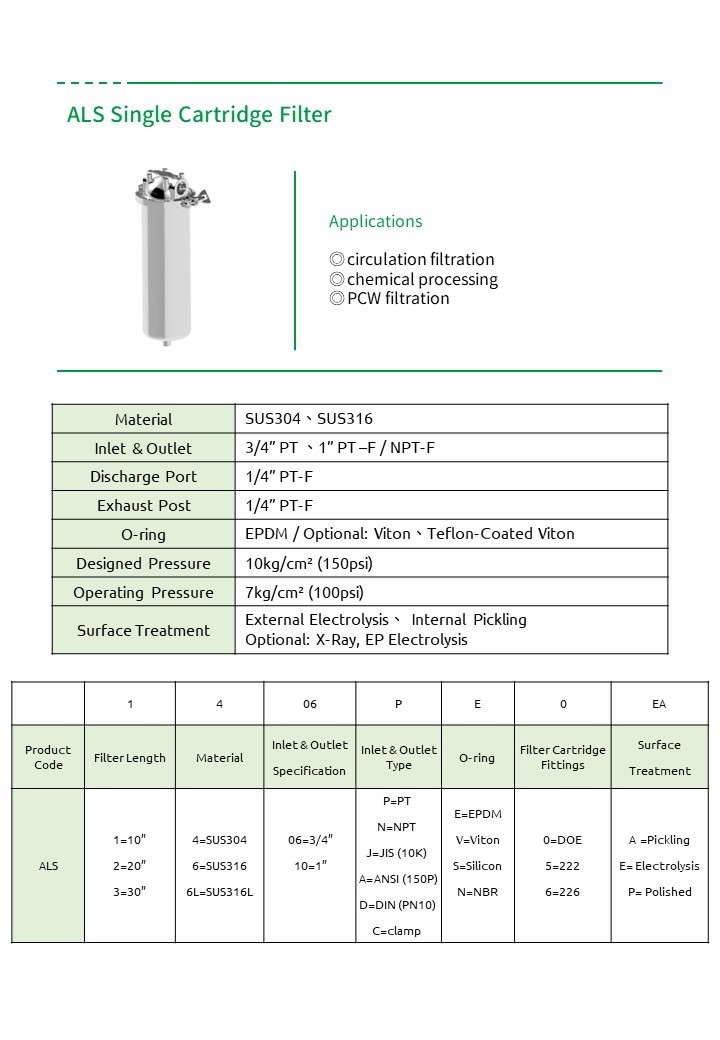

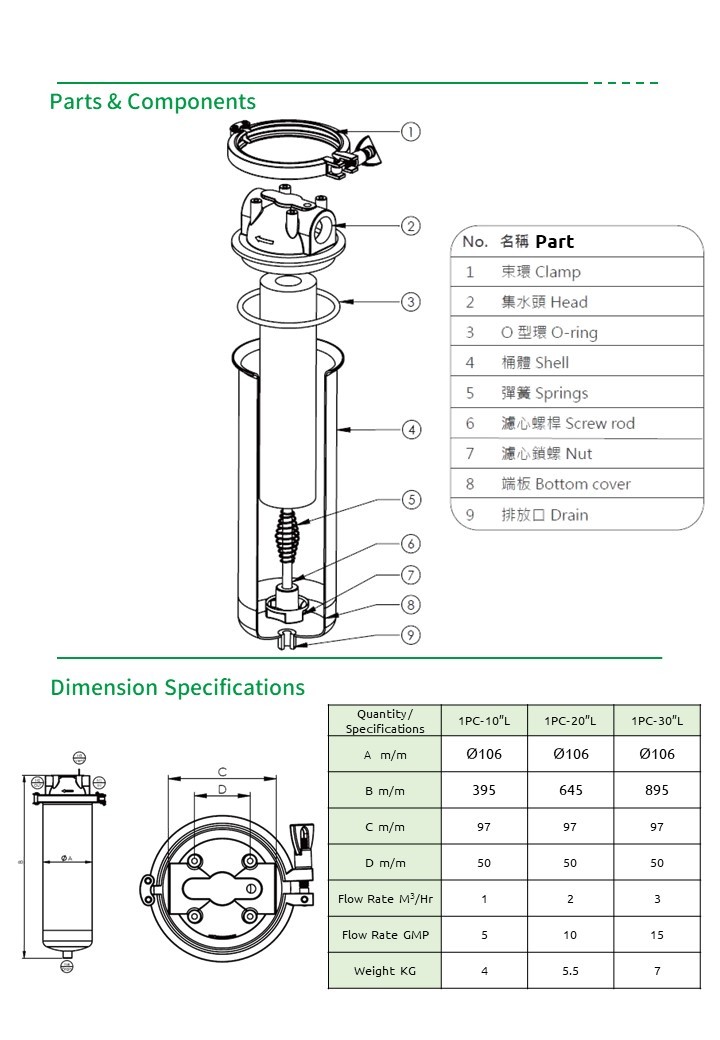

ALS 單支濾心式過濾器 ALS single-cartridge housing (catalog name: ALS Single Cartridge Filter)
- 單支濾心，10"／20"／30"；流量 1~3 m³/hr
- 材質 SUS304／SUS316；進出口 3/4" PT 或 1" PT-F／NPT-F
- 設計壓力 10 kg/cm²（150 psi）；操作壓力 7 kg/cm²（100 psi）
- 型錄用途：循環過濾、化學製程、PCW
Single cartridge, 10"/20"/30"; 1–3 m³/hr · SUS304 / SUS316; 3/4" PT or 1" PT-F / NPT-F · Design 10 kg/cm² (150 psi); operating 7 kg/cm² (100 psi) · Listed uses: circulation, chemical processing, PCW
完整規格 Full spec
- 型錄名稱：ALS Single Cartridge Filter。
- 型錄所列應用：循環過濾、化學製程、PCW過濾。
- 材質SUS304／SUS316；
- 進出口3/4" PT、1" PT-F／NPT-F；
- 排放口1/4" PT-F；
- 排氣口1/4" PT-F；
- 設計壓力10 kg/cm²（150 psi）；
- 操作壓力7 kg/cm²（100 psi）；
- O型環EPDM，可選Viton或鐵氟龍包Viton；
- 表面處理外部電解、內部酸洗，可選X光或EP電解。
- 訂購代碼：長度1~3＝10"／20"／30"；
- 材質4／6／6L（規格表只列SUS304、SUS316）；
- 口徑06＝3/4"、10＝1"；
- 接頭P／N／J／A／D／C；
- O型環E／V／S／N；
- 濾心接頭0＝DOE、5＝222、6＝226；
- 表面A酸洗、E電解、P拋光。
- 零件（9項，中英對照）：束環、集水頭、O型環、桶體、彈簧、濾心螺桿、濾心鎖螺、端板、排放口。
- 尺寸1PC-10"／20"／30"：A Ø106；
- B 395／645／895 mm；
- C 97；
- D 50；
- 流量1／2／3 m³/hr；
- 5／10／15 GPM；
- 重量4／5.5／7 kg。
- Catalog name: ALS Single Cartridge Filter.
- Applications listed: circulation filtration, chemical processing, PCW filtration.
- Material SUS304 / SUS316;
- inlet & outlet 3/4" PT, 1" PT-F / NPT-F;
- discharge port 1/4" PT-F;
- exhaust port 1/4" PT-F;
- designed pressure 10 kg/cm² (150 psi);
- operating pressure 7 kg/cm² (100 psi);
- O-ring EPDM, optional Viton or Teflon-coated Viton;
- surface external electrolysis and internal pickling, optional X-ray or EP electrolysis.
- Ordering code: length 1–3 = 10"/20"/30";
- material 4 / 6 / 6L (the spec table lists only SUS304 and SUS316);
- size 06 = 3/4", 10 = 1";
- connection P / N / J / A / D / C;
- O-ring E / V / S / N;
- cartridge fitting 0 = DOE, 5 = 222, 6 = 226;
- finish A pickling, E electrolysis, P polished.
- Parts (9, bilingual): clamp, head, O-ring, shell, springs, screw rod, nut, bottom cover, drain.
- Dimensions 1PC-10" / 20" / 30": A Ø106;
- B 395 / 645 / 895 mm;
- C 97;
- D 50;
- flow 1 / 2 / 3 m³/hr;
- 5 / 10 / 15 GPM;
- weight 4 / 5.5 / 7 kg.
開啟型錄原圖 Open original imageEnglish中英 / ZH–EN
下載型錄原圖 Download original imageEnglish中英 / ZH–EN

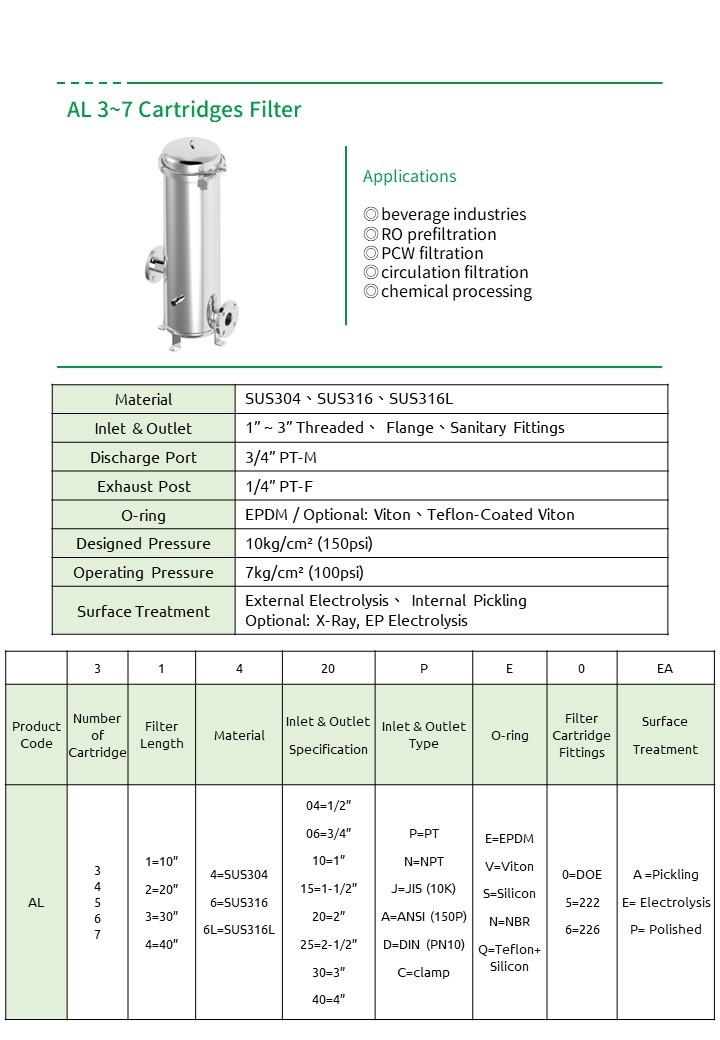

AL 3~7 支濾心式過濾器 AL 3–7 cartridge housing (catalog name: AL 3~7 Cartridges Filter)
- 3~7 支濾心，10"~40"；流量 3~28 m³/hr
- 材質 SUS304／SUS316／SUS316L；進出口 1"~3" 螺牙、法蘭或衛生級
- 設計壓力 10 kg/cm²（150 psi）；操作壓力 7 kg/cm²（100 psi）
- 規格表寫 1"~3"，訂購代碼列 1/2"~4"
3–7 cartridges, 10"–40"; 3–28 m³/hr · SUS304 / SUS316 / SUS316L; 1"–3" threaded, flange or sanitary · Design 10 kg/cm² (150 psi); operating 7 kg/cm² (100 psi) · Spec table says 1"–3"; ordering codes list 1/2"–4"
完整規格 Full spec
- 型錄名稱：AL 3~7 Cartridges Filter。
- 型錄所列應用：飲料業、RO前處理、PCW過濾、循環過濾、化學製程。
- 材質SUS304／SUS316／SUS316L；
- 進出口1"~3"螺牙、法蘭或衛生級接頭；
- 排放口3/4" PT-M；
- 排氣口1/4" PT-F；
- 設計壓力10 kg/cm²（150 psi）；
- 操作壓力7 kg/cm²（100 psi）；
- O型環EPDM，可選Viton或鐵氟龍包Viton；
- 表面處理外部電解、內部酸洗，可選X光或EP電解。
- 訂購代碼：濾心支數3~7；
- 長度1~4＝10"／20"／30"／40"；
- 材質4／6／6L；
- 口徑04＝1/2"、06＝3/4"、10＝1"、15＝1-1/2"、20＝2"、25＝2-1/2"、30＝3"、40＝4"（規格表寫1"~3"）；
- 接頭P／N／J／A／D／C；
- O型環E／V／S／N／Q；
- 濾心接頭0／5／6；
- 表面A酸洗、E電解、P拋光。

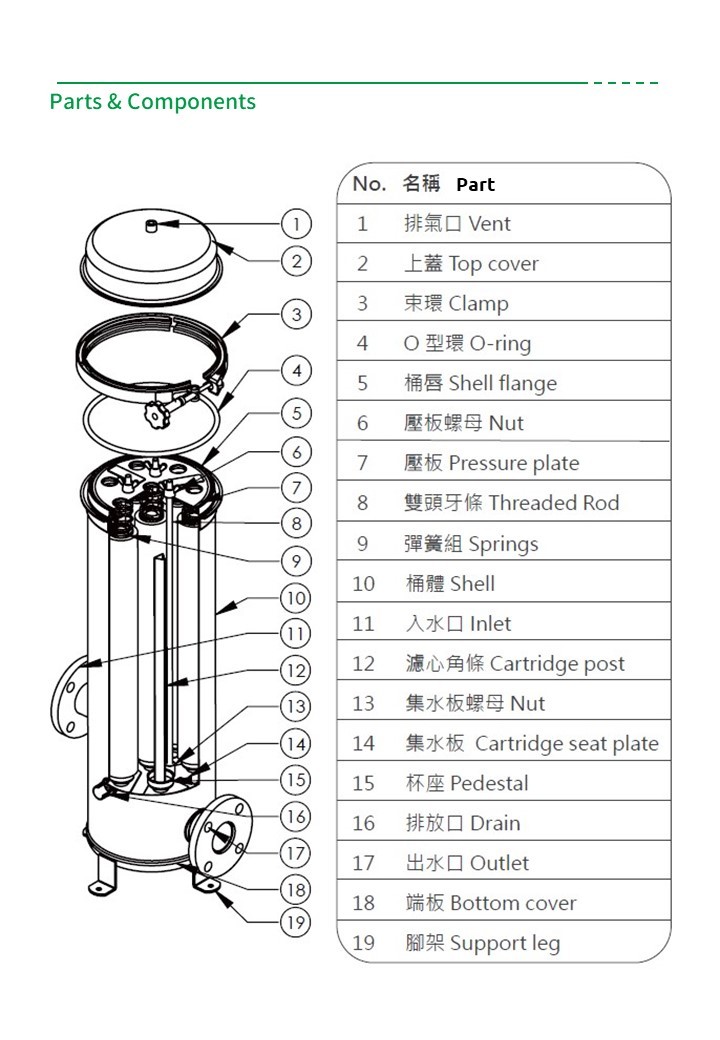

- 零件（19項，中英對照）：排氣口、上蓋、束環、O型環、桶唇、壓板螺母、壓板、雙頭牙條、彈簧組、桶體、入水口、濾心角條、集水板螺母、集水板、杯座、排放口、出水口、端板、腳架。

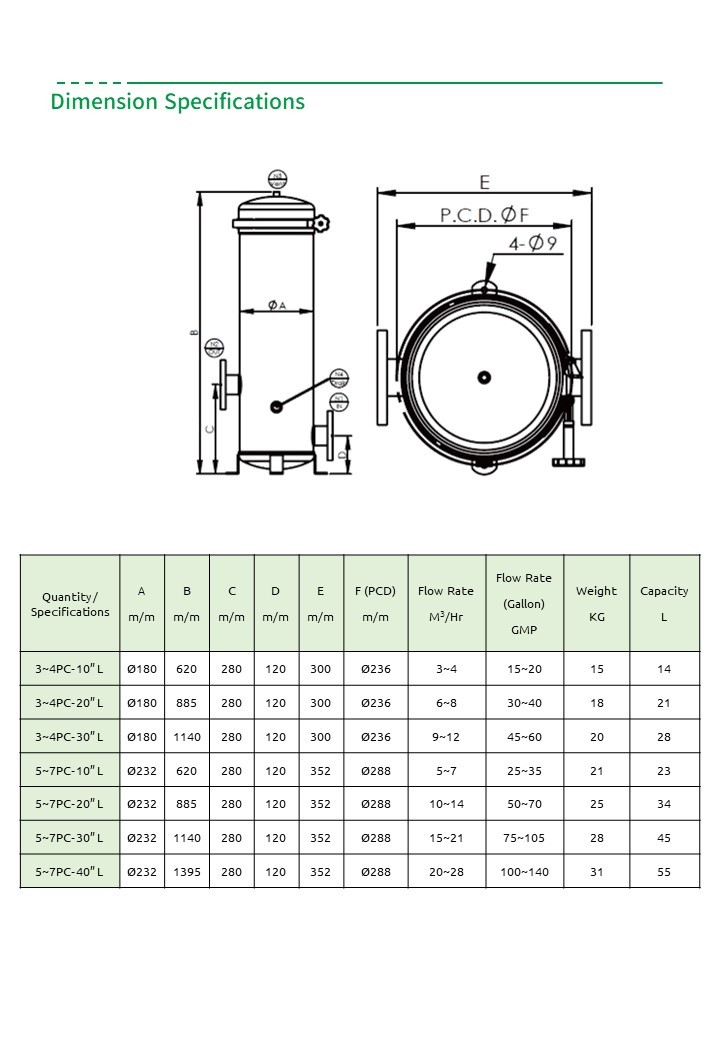

- 尺寸（A／B／C／D／E／F PCD mm；
- 流量m³/hr；
- GPM；
- kg；
- L）：3~4PC-10" Ø180／620／280／120／300／Ø236；
- 3~4；
- 15~20；15；
- 14——3~4PC-20" B 885；
- 6~8；
- 30~40；18；
- 21——3~4PC-30" B 1140；
- 9~12；
- 45~60；20；
- 28——5~7PC-10" Ø232／620／280／120／352／Ø288；
- 5~7；
- 25~35；21；
- 23——5~7PC-20" B 885；
- 10~14；
- 50~70；25；
- 34——5~7PC-30" B 1140；
- 15~21；
- 75~105；28；
- 45——5~7PC-40" B 1395；
- 20~28；
- 100~140；31；55。
- Catalog name: AL 3~7 Cartridges Filter.
- Applications listed: beverage, RO prefiltration, PCW filtration, circulation filtration, chemical processing.
- Material SUS304 / SUS316 / SUS316L;
- inlet & outlet 1"–3" threaded, flange or sanitary fittings;
- discharge port 3/4" PT-M;
- exhaust port 1/4" PT-F;
- designed pressure 10 kg/cm² (150 psi);
- operating pressure 7 kg/cm² (100 psi);
- O-ring EPDM, optional Viton or Teflon-coated Viton;
- surface external electrolysis and internal pickling, optional X-ray or EP electrolysis.
- Ordering code: cartridges 3–7;
- length 1–4 = 10"/20"/30"/40";
- material 4 / 6 / 6L;
- size 04 = 1/2", 06 = 3/4", 10 = 1", 15 = 1-1/2", 20 = 2", 25 = 2-1/2", 30 = 3", 40 = 4" (the spec table says 1"–3");
- connection P / N / J / A / D / C;
- O-ring E / V / S / N / Q;
- cartridge fitting 0 / 5 / 6;
- finish A pickling, E electrolysis, P polished.
- Parts (19, bilingual): vent, top cover, clamp, O-ring, shell flange, pressure-plate nut, pressure plate, threaded rod, springs, shell, inlet, cartridge post, seat-plate nut, cartridge seat plate, pedestal, drain, outlet, bottom cover, support leg.
- Dimensions (A / B / C / D / E / F PCD mm;
- flow m³/hr;
- GPM;
- kg;
- L): 3~4PC-10" Ø180 / 620 / 280 / 120 / 300 / Ø236;
- 3~4;
- 15~20; 15;
- 14 — 3~4PC-20" B 885;
- 6~8;
- 30~40; 18;
- 21 — 3~4PC-30" B 1140;
- 9~12;
- 45~60; 20;
- 28 — 5~7PC-10" Ø232 / 620 / 280 / 120 / 352 / Ø288;
- 5~7;
- 25~35; 21;
- 23 — 5~7PC-20" B 885;
- 10~14;
- 50~70; 25;
- 34 — 5~7PC-30" B 1140;
- 15~21;
- 75~105; 28;
- 45 — 5~7PC-40" B 1395;
- 20~28;
- 100~140; 31; 55.
開啟型錄原圖 Open original imageEnglish 1English 2中英 / ZH–EN
下載型錄原圖 Download original imageEnglish 1English 2中英 / ZH–EN

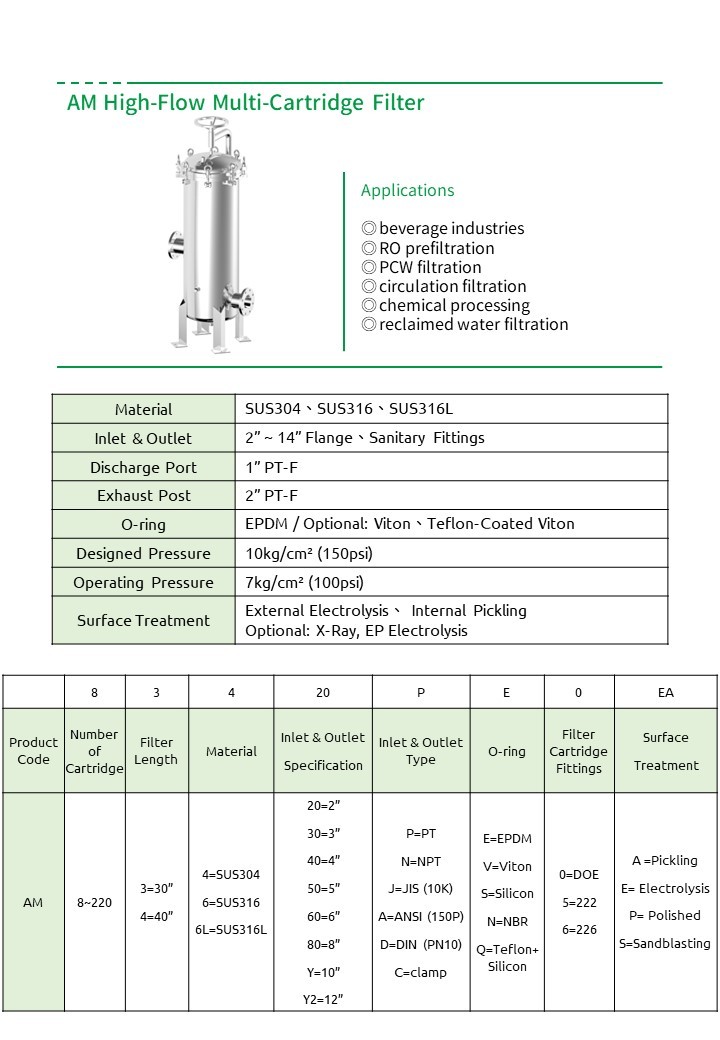

AM 大流量多支濾心式過濾器 AM high-flow multi-cartridge housing (catalog name: AM High-Flow Multi-Cartridge Filter)
- 8~220 支濾心，30" 或 40"
- 材質 SUS304／SUS316／SUS316L；進出口 2"~14" 法蘭或衛生級（訂購代碼只列到 12"）
- 設計壓力 10 kg/cm²（150 psi）；操作壓力 7 kg/cm²（100 psi）
- 22 種尺寸配置：重量 77~1247 kg，容量 89~2238 L
8–220 cartridges, 30" or 40" · SUS304 / SUS316 / SUS316L; 2"–14" flange or sanitary (codes list up to 12") · Design 10 kg/cm² (150 psi); operating 7 kg/cm² (100 psi) · 22 size configurations: 77–1247 kg, 89–2238 L
完整規格 Full spec
- 型錄名稱：AM High-Flow Multi-Cartridge Filter。
- 型錄所列應用：飲料業、RO前處理、PCW過濾、循環過濾、化學製程、回收水過濾。
- 材質SUS304／SUS316／SUS316L；
- 進出口2"~14"法蘭或衛生級接頭；
- 排放口1" PT-F；
- 排氣口2" PT-F；
- 設計壓力10 kg/cm²（150 psi）；
- 操作壓力7 kg/cm²（100 psi）；
- O型環EPDM，可選Viton或鐵氟龍包Viton；
- 表面處理外部電解、內部酸洗，可選X光或EP電解。
- 訂購代碼：濾心支數8~220；
- 長度3＝30"、4＝40"；
- 材質4／6／6L；
- 口徑20＝2"、30＝3"、40＝4"、50＝5"、60＝6"、80＝8"、Y＝10"、Y2＝12"（規格表寫最大14"）；
- 接頭P／N／J／A／D／C；
- O型環E／V／S／N／Q；
- 濾心接頭0／5／6；
- 表面A酸洗、E電解、P拋光、S噴砂。

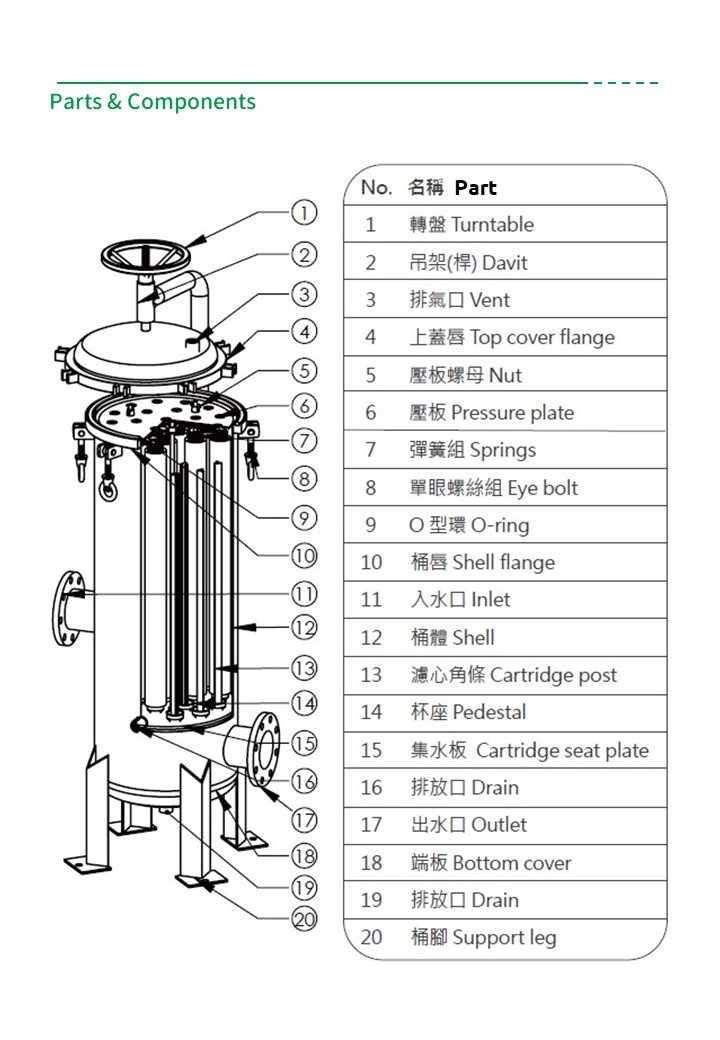

- 零件（20項，中英對照；
- 「排放口」出現兩次，第16與第19項）：轉盤、吊架（桿）、排氣口、上蓋唇、壓板螺母、壓板、彈簧組、單眼螺絲組、O型環、桶唇、入水口、桶體、濾心角條、杯座、集水板、排放口、出水口、端板、排放口、桶腳。

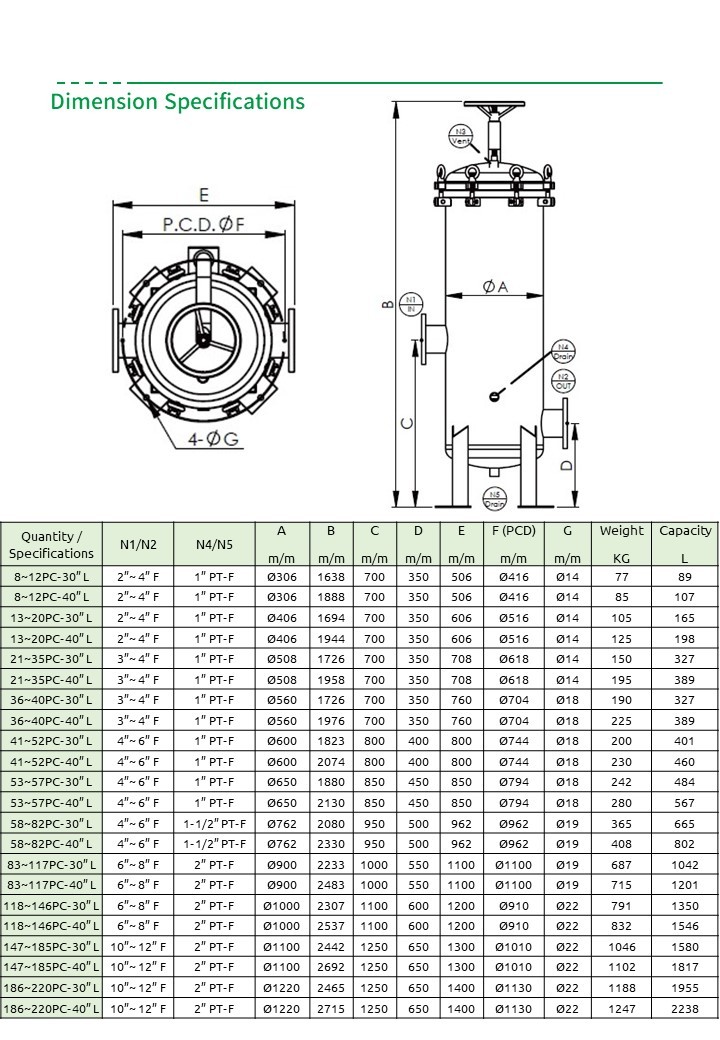

- 尺寸表共22種配置，由8~12PC-30"至186~220PC-40"：進出口2"~4" F至10"~12" F、桶徑Ø306~Ø1220 mm、總高B 1638~2715 mm、重量77~1247 kg、容量89~2238 L——各列數值請見型錄。
- Catalog name: AM High-Flow Multi-Cartridge Filter.
- Applications listed: beverage, RO prefiltration, PCW filtration, circulation filtration, chemical processing, reclaimed water filtration.
- Material SUS304 / SUS316 / SUS316L;
- inlet & outlet 2"–14" flange or sanitary fittings;
- discharge port 1" PT-F;
- exhaust port 2" PT-F;
- designed pressure 10 kg/cm² (150 psi);
- operating pressure 7 kg/cm² (100 psi);
- O-ring EPDM, optional Viton or Teflon-coated Viton;
- surface external electrolysis and internal pickling, optional X-ray or EP electrolysis.
- Ordering code: cartridges 8–220;
- length 3 = 30", 4 = 40";
- material 4 / 6 / 6L;
- size 20 = 2", 30 = 3", 40 = 4", 50 = 5", 60 = 6", 80 = 8", Y = 10", Y2 = 12" (the spec table says up to 14");
- connection P / N / J / A / D / C;
- O-ring E / V / S / N / Q;
- cartridge fitting 0 / 5 / 6;
- finish A pickling, E electrolysis, P polished, S sandblasting.
- Parts (20, bilingual;
- "drain" is listed twice, as items 16 and 19): turntable, davit, vent, top cover flange, pressure-plate nut, pressure plate, springs, eye bolt, O-ring, shell flange, inlet, shell, cartridge post, pedestal, cartridge seat plate, drain, outlet, bottom cover, drain, support leg.
- The dimension table lists 22 configurations from 8~12PC-30" to 186~220PC-40": inlet/outlet 2"–4" F up to 10"–12" F, shell Ø306–Ø1220 mm, height B 1638–2715 mm, weight 77–1247 kg, capacity 89–2238 L — see the original image for each row.
開啟型錄原圖 Open original imageEnglish 1中英 / ZH–ENEnglish 2
下載型錄原圖 Download original imageEnglish 1中英 / ZH–ENEnglish 2

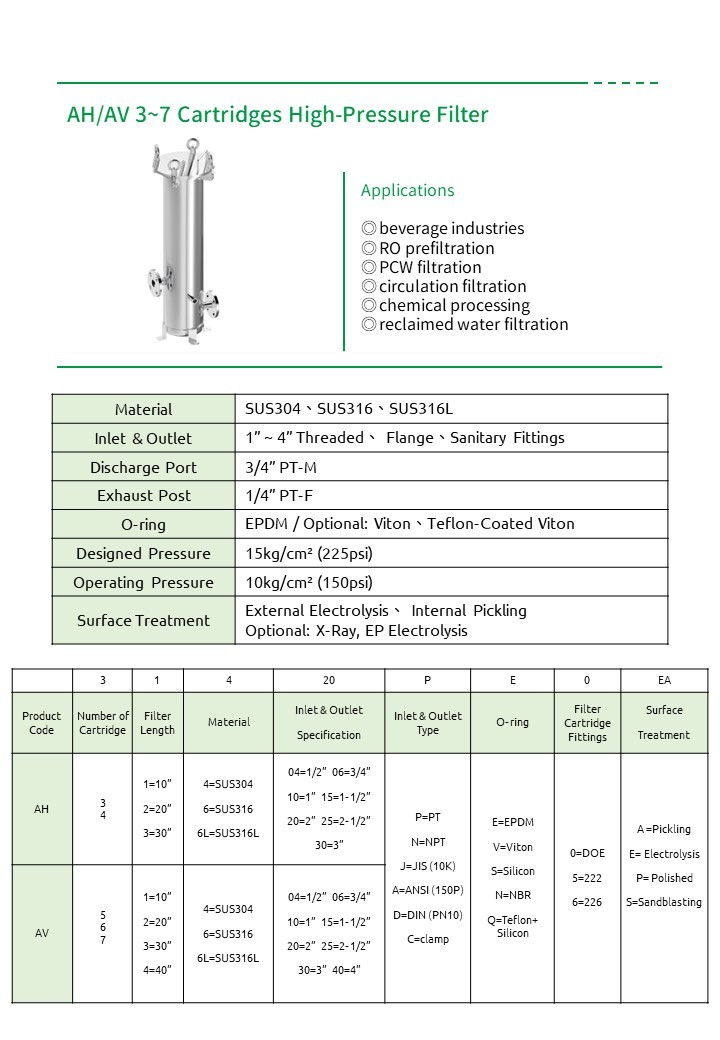

AH／AV 3~7 支濾心高壓過濾器 AH / AV 3–7 cartridge high-pressure housings (catalog name: AH/AV 3~7 Cartridges High-Pressure Filter)
- AH：3~4 支，10"~30"，流量 3~12 m³/hr
- AV：5~7 支，10"~40"，流量 5~28 m³/hr
- 設計壓力 15 kg/cm²（225 psi）；操作壓力 10 kg/cm²（150 psi）
- 材質 SUS304／SUS316／SUS316L；進出口 1"~4" 螺牙、法蘭或衛生級
AH: 3–4 cartridges, 10"–30", 3–12 m³/hr · AV: 5–7 cartridges, 10"–40", 5–28 m³/hr · Design 15 kg/cm² (225 psi); operating 10 kg/cm² (150 psi) · SUS304 / SUS316 / SUS316L; 1"–4" threaded, flange or sanitary
完整規格 Full spec
- 型錄名稱：AH/AV 3~7 Cartridges High-Pressure Filter（兩型號共用一張規格圖）。
- 型錄所列應用：飲料業、RO前處理、PCW過濾、循環過濾、化學製程、回收水過濾。
- 材質SUS304／SUS316／SUS316L；
- 進出口1"~4"螺牙、法蘭或衛生級接頭；
- 排放口3/4" PT-M；
- 排氣口1/4" PT-F；
- 設計壓力15 kg/cm²（225 psi）；
- 操作壓力10 kg/cm²（150 psi）；
- O型環EPDM，可選Viton或鐵氟龍包Viton；
- 表面處理外部電解、內部酸洗，可選X光或EP電解。
- 訂購代碼：AH為3或4支、長度1~3（10"~30"）、口徑04~30（1/2"~3"）；
- AV為5、6或7支、長度1~4（10"~40"）、口徑04~40（1/2"~4"）；
- 共用：材質4／6／6L、接頭P／N／J／A／D／C、O型環E／V／S／N／Q、濾心接頭0／5／6、表面A／E／P／S。

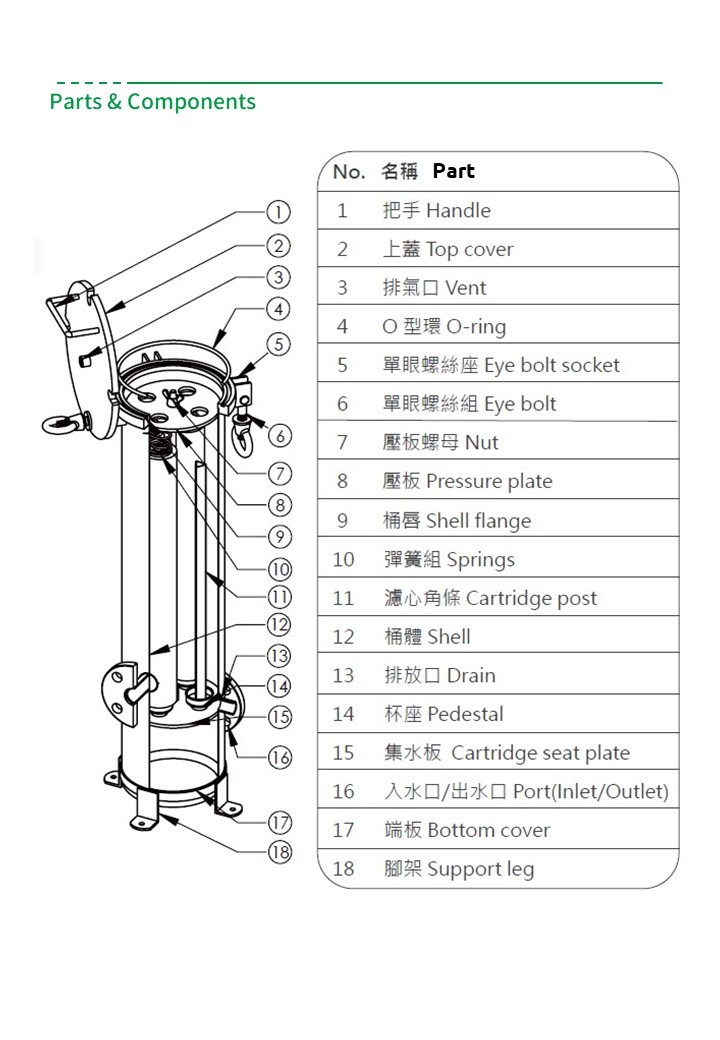

- 零件（18項，中英對照）：把手、上蓋、排氣口、O型環、單眼螺絲座、單眼螺絲組、壓板螺母、壓板、桶唇、彈簧組、濾心角條、桶體、排放口、杯座、集水板、入水口／出水口、端板、腳架。

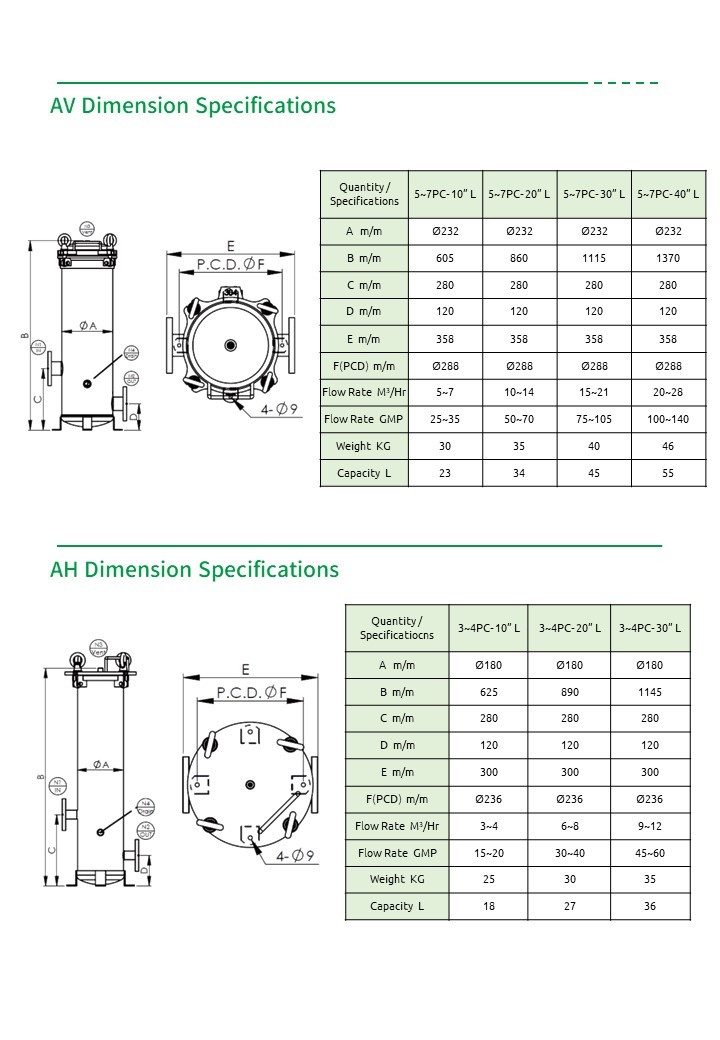

- AV尺寸5~7PC-10"／20"／30"／40"：A Ø232；
- B 605／860／1115／1370 mm；
- C 280；
- D 120；
- E 358；
- F Ø288；
- 流量5~7／10~14／15~21／20~28 m³/hr；
- 25~35／50~70／75~105／100~140 GPM；
- 30／35／40／46 kg；
- 23／34／45／55 L。
- AH尺寸3~4PC-10"／20"／30"：A Ø180；
- B 625／890／1145 mm；
- C 280；
- D 120；
- E 300；
- F Ø236；
- 流量3~4／6~8／9~12 m³/hr；
- 15~20／30~40／45~60 GPM；
- 25／30／35 kg；
- 18／27／36 L。
- Catalog name: AH/AV 3~7 Cartridges High-Pressure Filter (one shared spec sheet).
- Applications listed: beverage, RO prefiltration, PCW filtration, circulation filtration, chemical processing, reclaimed water filtration.
- Material SUS304 / SUS316 / SUS316L;
- inlet & outlet 1"–4" threaded, flange or sanitary fittings;
- discharge port 3/4" PT-M;
- exhaust port 1/4" PT-F;
- designed pressure 15 kg/cm² (225 psi);
- operating pressure 10 kg/cm² (150 psi);
- O-ring EPDM, optional Viton or Teflon-coated Viton;
- surface external electrolysis and internal pickling, optional X-ray or EP electrolysis.
- Ordering code: AH takes 3 or 4 cartridges, length 1–3 (10"–30"), sizes 04–30 (1/2"–3");
- AV takes 5, 6 or 7 cartridges, length 1–4 (10"–40"), sizes 04–40 (1/2"–4");
- shared: material 4 / 6 / 6L, connection P / N / J / A / D / C, O-ring E / V / S / N / Q, cartridge fitting 0 / 5 / 6, finish A / E / P / S.
- Parts (18, bilingual): handle, top cover, vent, O-ring, eye bolt socket, eye bolt, pressure-plate nut, pressure plate, shell flange, springs, cartridge post, shell, drain, pedestal, cartridge seat plate, inlet/outlet port, bottom cover, support leg.
- AV dimensions 5~7PC-10" / 20" / 30" / 40": A Ø232;
- B 605 / 860 / 1115 / 1370 mm;
- C 280;
- D 120;
- E 358;
- F Ø288;
- flow 5~7 / 10~14 / 15~21 / 20~28 m³/hr;
- 25~35 / 50~70 / 75~105 / 100~140 GPM;
- 30 / 35 / 40 / 46 kg;
- 23 / 34 / 45 / 55 L.
- AH dimensions 3~4PC-10" / 20" / 30": A Ø180;
- B 625 / 890 / 1145 mm;
- C 280;
- D 120;
- E 300;
- F Ø236;
- flow 3~4 / 6~8 / 9~12 m³/hr;
- 15~20 / 30~40 / 45~60 GPM;
- 25 / 30 / 35 kg;
- 18 / 27 / 36 L.
開啟型錄原圖 Open original imageEnglish 1中英 / ZH–ENEnglish 2
下載型錄原圖 Download original imageEnglish 1中英 / ZH–ENEnglish 2

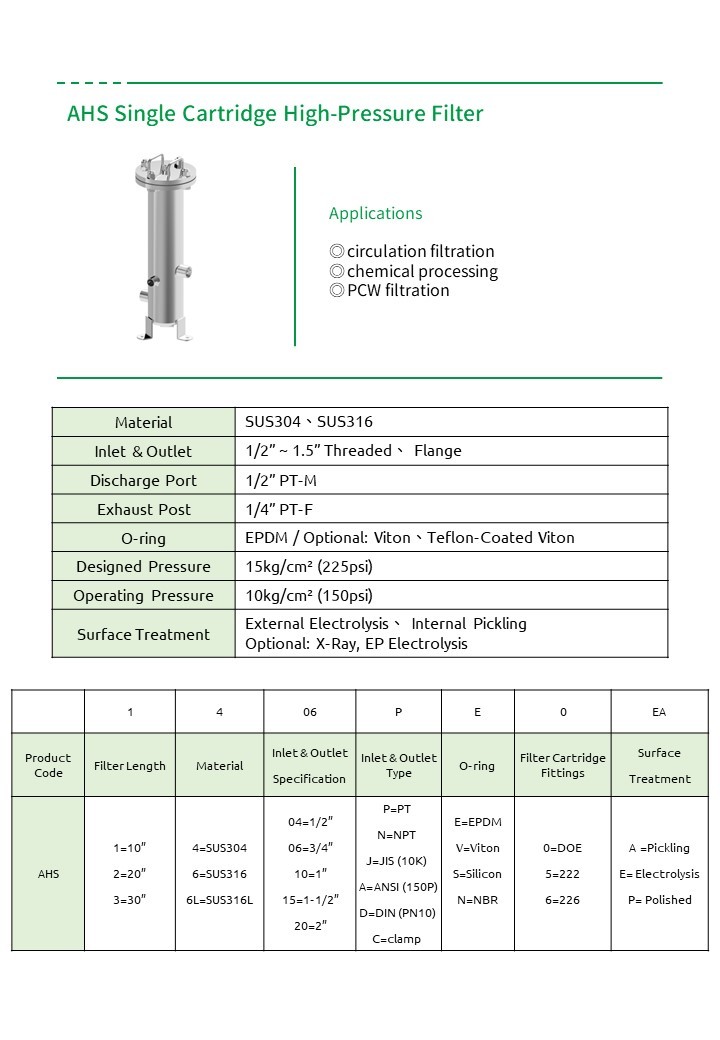

AHS 單支濾心高壓過濾器 AHS single-cartridge high-pressure housing (catalog name: AHS Single Cartridge High-Pressure Filter)
- 單支濾心，10"／20"／30"；流量 1~3 m³/hr
- 材質 SUS304／SUS316；進出口 1/2"~1.5" 螺牙或法蘭
- 設計壓力 15 kg/cm²（225 psi）；操作壓力 10 kg/cm²（150 psi）
- 型錄用途：循環過濾、化學製程、PCW
Single cartridge, 10"/20"/30"; 1–3 m³/hr · SUS304 / SUS316; 1/2"–1.5" threaded or flange · Design 15 kg/cm² (225 psi); operating 10 kg/cm² (150 psi) · Listed uses: circulation, chemical processing, PCW
完整規格 Full spec
- 型錄名稱：AHS Single Cartridge High-Pressure Filter。
- 型錄所列應用：循環過濾、化學製程、PCW過濾。
- 材質SUS304／SUS316；
- 進出口1/2"~1.5"螺牙或法蘭；
- 排放口1/2" PT-M；
- 排氣口1/4" PT-F；
- 設計壓力15 kg/cm²（225 psi）；
- 操作壓力10 kg/cm²（150 psi）；
- O型環EPDM，可選Viton或鐵氟龍包Viton；
- 表面處理外部電解、內部酸洗，可選X光或EP電解。
- 訂購代碼：長度1~3＝10"／20"／30"；
- 材質4／6／6L（規格表只列SUS304、SUS316）；
- 口徑04＝1/2"、06＝3/4"、10＝1"、15＝1-1/2"、20＝2"（規格表寫最大1.5"）；
- 接頭P／N／J／A／D／C；
- O型環E／V／S／N；
- 濾心接頭0／5／6；
- 表面A酸洗、E電解、P拋光。

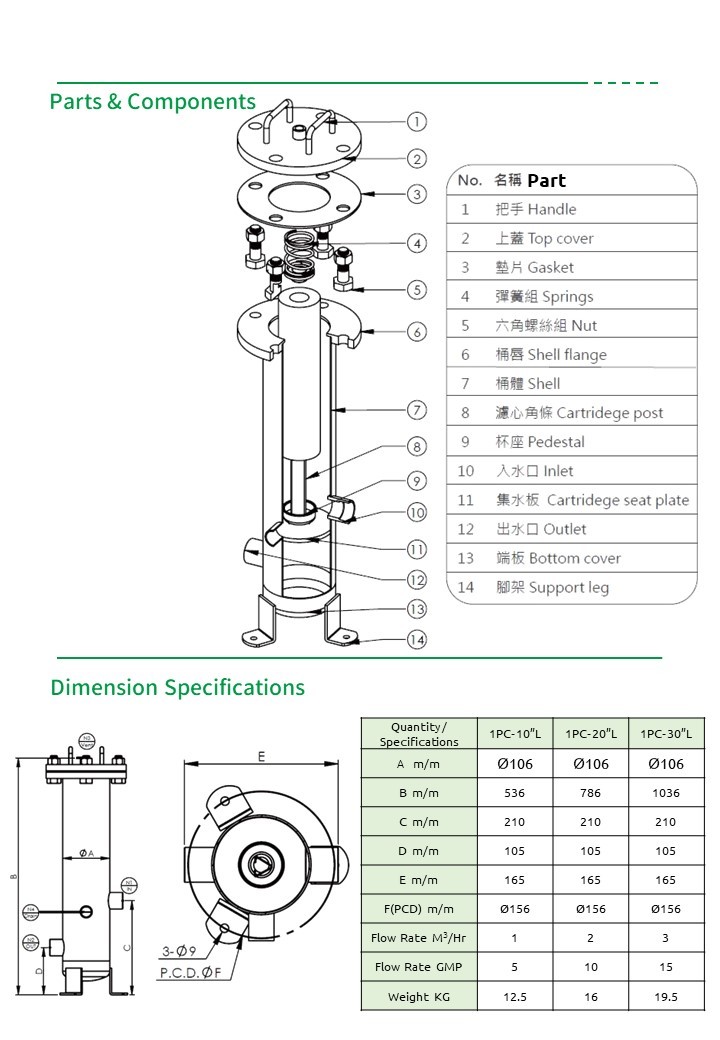

- 零件（14項，中英對照）：把手、上蓋、墊片、彈簧組、六角螺絲組、桶唇、桶體、濾心角條、杯座、入水口、集水板、出水口、端板、腳架。
- 尺寸1PC-10"／20"／30"：A Ø106；
- B 536／786／1036 mm；
- C 210；
- D 105；
- E 165；
- F Ø156；
- 流量1／2／3 m³/hr；
- 5／10／15 GPM；
- 重量12.5／16／19.5 kg。
- Catalog name: AHS Single Cartridge High-Pressure Filter.
- Applications listed: circulation filtration, chemical processing, PCW filtration.
- Material SUS304 / SUS316;
- inlet & outlet 1/2"–1.5" threaded or flange;
- discharge port 1/2" PT-M;
- exhaust port 1/4" PT-F;
- designed pressure 15 kg/cm² (225 psi);
- operating pressure 10 kg/cm² (150 psi);
- O-ring EPDM, optional Viton or Teflon-coated Viton;
- surface external electrolysis and internal pickling, optional X-ray or EP electrolysis.
- Ordering code: length 1–3 = 10"/20"/30";
- material 4 / 6 / 6L (the spec table lists only SUS304 and SUS316);
- size 04 = 1/2", 06 = 3/4", 10 = 1", 15 = 1-1/2", 20 = 2" (the spec table says up to 1.5");
- connection P / N / J / A / D / C;
- O-ring E / V / S / N;
- cartridge fitting 0 / 5 / 6;
- finish A pickling, E electrolysis, P polished.
- Parts (14, bilingual): handle, top cover, gasket, springs, hex nut set, shell flange, shell, cartridge post, pedestal, inlet, cartridge seat plate, outlet, bottom cover, support leg.
- Dimensions 1PC-10" / 20" / 30": A Ø106;
- B 536 / 786 / 1036 mm;
- C 210;
- D 105;
- E 165;
- F Ø156;
- flow 1 / 2 / 3 m³/hr;
- 5 / 10 / 15 GPM;
- weight 12.5 / 16 / 19.5 kg.
開啟型錄原圖 Open original imageEnglish中英 / ZH–EN
下載型錄原圖 Download original imageEnglish中英 / ZH–EN

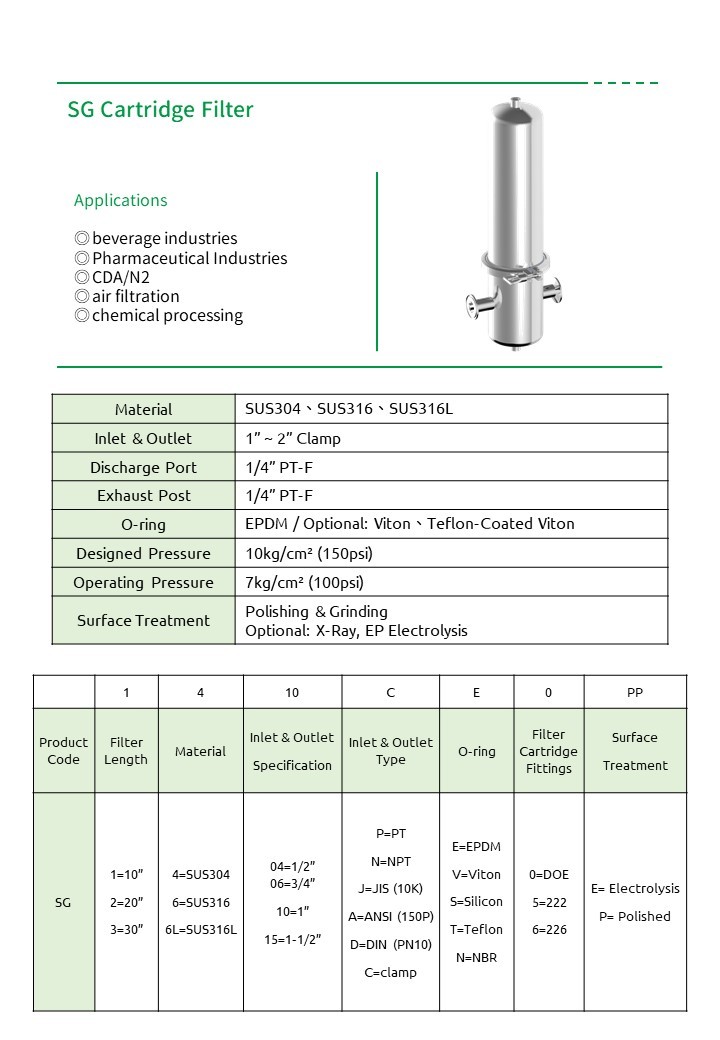

SG 濾心式過濾器 SG cartridge housing (catalog name: SG Cartridge Filter)
- 單支濾心，10"／20"／30"
- 材質 SUS304／SUS316／SUS316L；進出口 1"~2" 快拆夾
- 設計壓力 10 kg/cm²（150 psi）；操作壓力 7 kg/cm²（100 psi）
- 型錄用途：飲料、製藥、CDA/N2、空氣、化工
Single cartridge, 10"/20"/30" · SUS304 / SUS316 / SUS316L; 1"–2" clamp · Design 10 kg/cm² (150 psi); operating 7 kg/cm² (100 psi) · Listed uses: beverage, pharmaceutical, CDA/N2, air, chemical
完整規格 Full spec
- 型錄名稱：SG Cartridge Filter。
- 型錄所列應用：飲料業、製藥業、CDA/N2、空氣過濾、化學製程。
- 材質SUS304／SUS316／SUS316L；
- 進出口1"~2"快拆夾；
- 排放口1/4" PT-F；
- 排氣口1/4" PT-F；
- O型環EPDM，可選Viton或鐵氟龍包Viton；
- 設計壓力10 kg/cm²（150 psi）；
- 操作壓力7 kg/cm²（100 psi）；
- 表面處理拋光研磨，可選X光或EP電解。
- 訂購代碼：長度1~3＝10"／20"／30"；
- 材質4／6／6L；
- 口徑04＝1/2"、06＝3/4"、10＝1"、15＝1-1/2"（規格表寫1"~2"）；
- 接頭P／N／J／A／D／C；
- O型環E／V／S／T（鐵氟龍）／N；
- 濾心接頭0／5／6；
- 表面E電解、P拋光。
- 零件（8項，照型錄：第2項標為「端板」但畫在頂部，「桶體」列了兩次）：束環、端板、桶體、濾心、桶唇、墊片、底座、桶體。
- 尺寸1PC-10"／20"／30"：A Ø106；
- B 493／743／993 mm；
- C 78；
- D 192；
- 重量4／5.3／6.5 kg（型錄無流量數值）。
- Catalog name: SG Cartridge Filter.
- Applications listed: beverage, pharmaceutical, CDA/N2, air filtration, chemical processing.
- Material SUS304 / SUS316 / SUS316L;
- inlet & outlet 1"–2" clamp;
- discharge port 1/4" PT-F;
- exhaust port 1/4" PT-F;
- O-ring EPDM, optional Viton or Teflon-coated Viton;
- designed pressure 10 kg/cm² (150 psi);
- operating pressure 7 kg/cm² (100 psi);
- surface polishing & grinding, optional X-ray or EP electrolysis.
- Ordering code: length 1–3 = 10"/20"/30";
- material 4 / 6 / 6L;
- size 04 = 1/2", 06 = 3/4", 10 = 1", 15 = 1-1/2" (the spec table says 1"–2");
- connection P / N / J / A / D / C;
- O-ring E / V / S / T (Teflon) / N;
- cartridge fitting 0 / 5 / 6;
- finish E electrolysis, P polished.
- Parts (8, as printed — item 2 is labeled "bottom cover" although drawn at the top, and "shell" is listed twice): clamp, bottom cover, shell, filter cartridge, shell flange, gasket, base, shell.
- Dimensions 1PC-10" / 20" / 30": A Ø106;
- B 493 / 743 / 993 mm;
- C 78;
- D 192;
- weight 4 / 5.3 / 6.5 kg (no flow figures given).
開啟型錄原圖 Open original imageEnglish中英 / ZH–EN
下載型錄原圖 Download original imageEnglish中英 / ZH–EN
家用中空纖維膜濾心 Household Hollow-Fiber Membrane Cartridges
公司型錄中的家用 PES 中空纖維膜濾心。數值皆附型錄所註明的測試條件；實際壽命與通量依當地水質而異。
PES hollow-fiber cartridges for household tap water, from the company catalog. Figures come with the test conditions printed on each source card; actual lifespan and flow depend on local water quality.

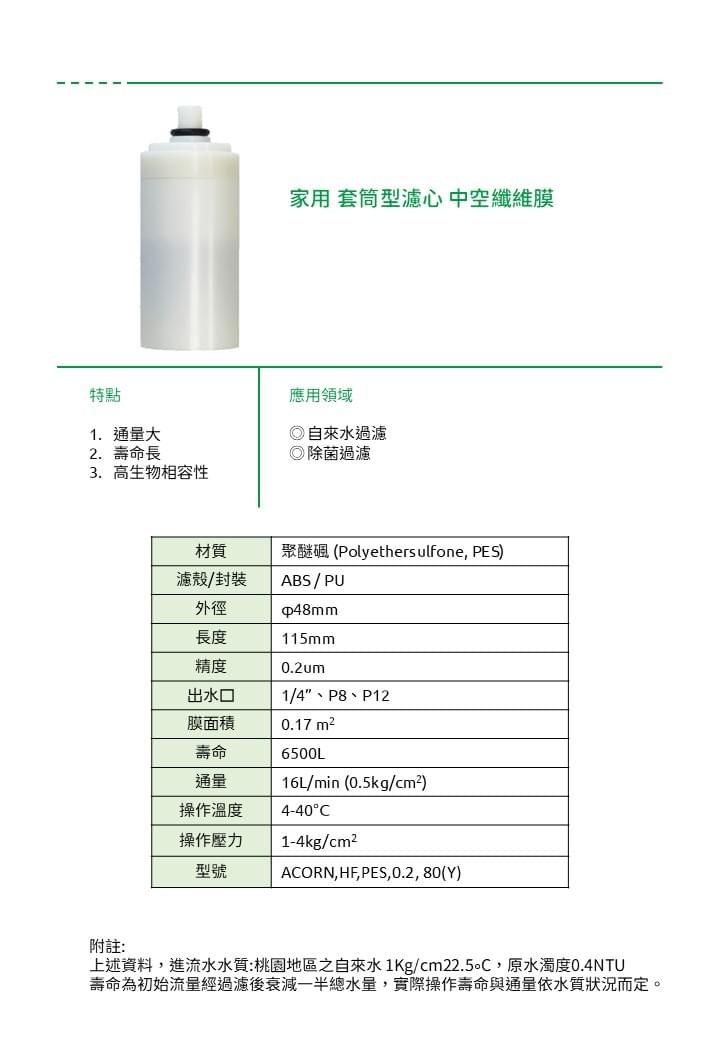

家用套筒型中空纖維膜濾心 Household cartridge-style hollow-fiber cartridge (catalog name: Household Cartridge-style Filter with Hollow Fiber Membrane)
- PES 中空纖維膜，0.2 μm，膜面積 0.17 m²；Ø48 × 115 mm
- 型錄：6,500 L／16 L/min，依其註明的自來水測試條件
- 操作 4~40°C、1~4 kg/cm²；出水口 1/4"、P8 或 P12
- 實際壽命與通量依當地水質而異
PES hollow fiber, 0.2 μm, 0.17 m²; Ø48 × 115 mm · Source: 6,500 L / 16 L/min under its stated tap-water test conditions · Operating 4–40°C, 1–4 kg/cm²; outlet 1/4", P8 or P12 · Actual lifespan and flow depend on local water quality
完整規格 Full spec
- 中文型錄名稱：家用 套筒型濾心 中空纖維膜；
- 英文型錄名稱：Household Cartridge-style Filter with Hollow Fiber Membrane——兩份型錄規格相同。
- 型錄所列特點（供應商用語，型錄未附測試依據）：通量大、壽命長、高生物相容性。
- 型錄所列應用：自來水過濾、除菌過濾。
- 材質聚醚碸（PES）；
- 濾殼／封裝ABS／PU；
- 外徑Ø48 mm；
- 長度115 mm；
- 精度0.2 μm；
- 出水口1/4"、P8、P12；
- 膜面積0.17 m²；
- 壽命6,500 L；
- 通量16 L/min（0.5 kg/cm²）；
- 操作溫度4~40°C；
- 操作壓力1~4 kg/cm²；
- 型號ACORN,HF,PES,0.2,80(Y)。
- 型錄附註：以桃園地區自來水（22.5°C、1 kg/cm²、濁度 0.4 NTU）測得；
- 壽命定義為流量衰減至初始一半時的累計水量；
- 實際表現依使用方式與水質而異。
- Chinese-site name: 家用 套筒型濾心 中空纖維膜;
- English-site name: Household Cartridge-style Filter with Hollow Fiber Membrane — same specifications on both sites.
- Features listed on the source card (the supplier's wording;
- no test basis given on the card): high flow rate, long lifespan, high biocompatibility.
- Applications listed: tap water filtration, sterilizing filtration.
- Material polyethersulfone (PES);
- housing / sealing ABS / PU;
- outer diameter Ø48 mm;
- length 115 mm;
- retention rating 0.2 μm;
- connection outlet 1/4", P8, P12;
- membrane area 0.17 m²;
- capacity 6,500 L;
- flow rate 16 L/min (0.5 kg/cm²);
- operating temperature 4–40°C;
- operating pressure 1–4 kg/cm²;
- model ACORN,HF,PES,0.2,80(Y).
- Source note: specifications based on Taoyuan municipal tap water at 22.5°C, 1 kg/cm², 0.4 NTU turbidity;
- service life counted from initial flow until flow falls to 50%;
- performance varies with use and water quality.
家用橡實型中空纖維膜濾心 Household acorn-shaped cartridge (catalog name: Household Acorn-shaped Filter Cartridge with Hollow Fiber Membrane)
- PES 中空纖維膜，0.2 μm，膜面積 0.17 m²；Ø48 × 105 mm
- 型錄：6,500 L／16 L/min，依其註明的自來水測試條件
- 操作 4~40°C、1~4 kg/cm²；出水口 1/4"、P8 或 P12
- 型號與 10 吋標準型印成相同，見完整規格
PES hollow fiber, 0.2 μm, 0.17 m²; Ø48 × 105 mm · Source: 6,500 L / 16 L/min under its stated tap-water test conditions · Operating 4–40°C, 1–4 kg/cm²; outlet 1/4", P8 or P12 · Model printed identical to the 10-inch card — see full spec
完整規格 Full spec
- 型錄名稱：Household Acorn-shaped Filter Cartridge with Hollow Fiber Membrane。
- 型錄所列特點（供應商用語，型錄未附測試依據）：高通量、長壽命、高生物相容性。
- 型錄所列應用：自來水過濾、除菌過濾。
- 材質聚醚碸（PES）；
- 濾殼／封裝ABS／PU；
- 外徑Ø48 mm；
- 長度105 mm；
- 精度0.2 μm；
- 出水口1/4"、P8、P12；
- 膜面積0.17 m²；
- 壽命6,500 L；
- 通量16 L/min（0.5 kg/cm²）；
- 操作溫度4~40°C；
- 操作壓力1~4 kg/cm²；
- 型號ACORN,HF,PES,0.2,80(N)——10吋標準型濾心（不同產品）的型錄印了完全相同的型號，照型錄列出，此處不判定。
- 型錄附註：以桃園地區自來水（22.5°C、1 kg/cm²、濁度 0.4 NTU）測得；
- 壽命定義為流量衰減至初始一半時的累計水量；
- 實際表現依使用方式與水質而異。
- Catalog name: Household Acorn-shaped Filter Cartridge with Hollow Fiber Membrane.
- Features listed on the source card (the supplier's wording;
- no test basis given on the card): high flow rate, long lifespan, high biocompatibility.
- Applications listed: tap water filtration, sterilizing filtration.
- Material polyethersulfone (PES);
- housing / sealing ABS / PU;
- outer diameter Ø48 mm;
- length 105 mm;
- retention rating 0.2 μm;
- connection outlet 1/4", P8, P12;
- membrane area 0.17 m²;
- capacity 6,500 L;
- flow rate 16 L/min (0.5 kg/cm²);
- operating temperature 4–40°C;
- operating pressure 1–4 kg/cm²;
- model ACORN,HF,PES,0.2,80(N) — exactly the same model string is printed on the 10-inch standard filter card, which is a different product;
- shown as printed, not resolved here.
- Source note: specifications based on Taoyuan municipal tap water at 22.5°C, 1 kg/cm², 0.4 NTU turbidity;
- service life counted from initial flow until flow falls to 50%;
- performance varies with use and water quality.
10 吋標準型中空纖維膜濾心 10-inch standard hollow-fiber cartridge (catalog name: 10-inch Standard Filter with Hollow Fiber Membrane)
- PES 中空纖維膜，0.2 μm，膜面積 1.8 m²；Ø68 mm × 10 吋
- 型錄：86,700 L（「75%」，壓差 0.5 kg/cm²）、46 L/min，未附水質或測試條件
- 操作 10~65°C、1~5 kg/cm²；外進內出
- 端蓋 DOE 或 2-222；O 型環 Buna-N／EPDM／Viton／矽膠
PES hollow fiber, 0.2 μm, 1.8 m²; Ø68 mm × 10" · Source: 86,700 L ("75%", ΔP 0.5 kg/cm²) and 46 L/min — card gives no water/test conditions · Operating 10–65°C, 1–5 kg/cm²; outside-to-inside flow · DOE or 2-222 end caps; Buna-N / EPDM / Viton / silicone O-rings
完整規格 Full spec
- 型錄名稱：10-inch Standard Filter with Hollow Fiber Membrane。
- 型錄所列特點（供應商用語，型錄未附測試依據）：高通量、長壽命。
- 型錄所列應用：自來水過濾、除菌過濾、精密過濾。
- 材質聚醚碸（PES）；
- 濾殼／封裝PP／PU；
- 外徑Ø68 mm；
- 長度10吋；
- 精度0.2 μm；
- 端蓋雙開口、2-222尾／鰭尾；
- 流向外進內出；
- 膜面積1.8 m²；
- 壽命86,700 L（型錄印「75%，壓差0.5 kg/cm²」，未說明75%所指為何）；
- 通量46 L/min（0.5 kg/cm²）；
- 操作溫度10~65°C；
- 操作壓力1~5 kg/cm²；
- O型環Buna-N、EPDM、Viton、矽膠；
- 型號ACORN,HF,PES,0.2,80(N)（與橡實型相同，見該卡）。
- 此卡不像其他家用濾心附有測試條件註記，因此壽命與通量數值未註明水質或測試方法。
- Catalog name: 10-inch Standard Filter with Hollow Fiber Membrane.
- Features listed on the source card (the supplier's wording;
- no test basis given on the card): high flow rate, long lifespan.
- Applications listed: tap water filtration, sterilizing filtration, precision filtration.
- Material polyethersulfone (PES);
- housing / sealing PP / PU;
- outer diameter Ø68 mm;
- length 10";
- retention rating 0.2 μm;
- end cap double open end, 2-222 tail / fin tail;
- flow direction outside to inside;
- membrane area 1.8 m²;
- capacity 86,700 L (printed "75%, differential pressure 0.5 kg/cm²" — the card does not say what the 75% refers to);
- flow rate 46 L/min (0.5 kg/cm²);
- operating temperature 10–65°C;
- operating pressure 1–5 kg/cm²;
- O-ring Buna-N, EPDM, Viton, silicone;
- model ACORN,HF,PES,0.2,80(N) (identical to the acorn-shaped card — see that card).
- Unlike the other household cards, this card has no test-conditions note, so the capacity and flow figures come without stated water quality or test method.
家用複合型中空纖維膜濾心（含活性碳） Household composite cartridge with activated carbon (catalog name: Household Composition Filter Cartridge with Hollow Fiber Membrane)
- PES 中空纖維膜＋活性碳；0.2 μm；Ø48 × 255 mm
- 型錄：6,500 L／16 L/min，依其註明的自來水測試條件
- 操作 4~40°C、1~4 kg/cm²；出水口 1/4"、P8 或 P12
- 型錄用途含去除餘氯（供應商用語）
PES hollow fiber + activated carbon; 0.2 μm; Ø48 × 255 mm · Source: 6,500 L / 16 L/min under its stated tap-water test conditions · Operating 4–40°C, 1–4 kg/cm²; outlet 1/4", P8 or P12 · Listed uses include chlorine removal (supplier wording)
完整規格 Full spec
- 型錄名稱：Household Composition Filter Cartridge with Hollow Fiber Membrane。
- 型錄所列特點（供應商用語，型錄未附測試依據）：高通量、長壽命、高生物相容性、含活性碳。
- 型錄所列應用：自來水過濾、除菌過濾、去除餘氯。
- 材質聚醚碸（PES）；
- 濾殼／封裝ABS／PU；
- 外徑Ø48 mm；
- 長度255 mm；
- 精度0.2 μm；
- 出水口1/4"、P8、P12；
- 膜面積0.17 m²；
- 壽命6,500 L；
- 通量16 L/min（0.5 kg/cm²）；
- 操作溫度4~40°C；
- 操作壓力1~4 kg/cm²；
- 型號ACORN,HF,PES,0.2,80(Y200),AC100L。
- 型錄附註：以桃園地區自來水（22.5°C、1 kg/cm²、濁度 0.4 NTU）測得；
- 壽命定義為流量衰減至初始一半時的累計水量；
- 實際表現依使用方式與水質而異。
- Catalog name: Household Composition Filter Cartridge with Hollow Fiber Membrane.
- Features listed on the source card (the supplier's wording;
- no test basis given on the card): high flow rate, long lifespan, high biocompatibility, with activated carbon.
- Applications listed: tap water filtration, sterilizing filtration, chlorine removal.
- Material polyethersulfone (PES);
- housing / sealing ABS / PU;
- outer diameter Ø48 mm;
- length 255 mm;
- retention rating 0.2 μm;
- connection outlet 1/4", P8, P12;
- membrane area 0.17 m²;
- capacity 6,500 L;
- flow rate 16 L/min (0.5 kg/cm²);
- operating temperature 4–40°C;
- operating pressure 1–4 kg/cm²;
- model ACORN,HF,PES,0.2,80(Y200),AC100L.
- Source note: specifications based on Taoyuan municipal tap water at 22.5°C, 1 kg/cm², 0.4 NTU turbidity;
- service life counted from initial flow until flow falls to 50%;
- performance varies with use and water quality.
中空纖維膜濾心：出水口、使用注意事項與性能圖 Hollow-fiber cartridge: outlets, usage precautions & performance charts (catalog alt: Hollow Fiber Filter Report)
- 出水口規格：1/4"、P8、P12
- 注意事項：避免高壓高溫；請勿冰凍
- 圖表：流量對壓力、流量對處理量、PMI 孔徑分布、SEM 影像
- 型錄自註：數值為自家量測，非保證值
Connection outlets: 1/4", P8, P12 · Precautions: avoid high pressure/temperature; do not freeze · Charts: flow vs pressure, flow vs total volume, PMI pore-size distribution, SEM images · The card itself says values are its own measurements, not guarantees
完整規格 Full spec
- 出水口規格：1/4"、P8、P12（附照片）。
- 型錄所印使用注意事項：產品細節可能不另行通知而變更；
- 零件規格為本公司量測值，非保證值；
- 避免在高壓或高溫下使用；
- 請勿冰凍，可能損壞外殼；
- 通量為單一元件數值，與其他過濾材料組合時可能降低；
- 請遵守當地法規。
- 型錄另附「流量對壓力」圖（通量 L/m²·hr 對壓力 bar）、「流量對處理量」圖（通量對累計水量 噸）、PMI 孔徑分布圖與兩張掃描式電子顯微鏡影像——型錄未附這些圖表的樣品編號或檢驗報告，因此視為公司自行提供的示意資料。
- Connection outlet specs: 1/4", P8, P12 (shown with photos).
- Usage precautions printed on the card: product details may change without notice;
- component specifications are based on the company's own measurements and are not guaranteed values;
- avoid using under high pressure or temperature;
- do not freeze, it may damage the casing;
- the flow rate is for a single component and may decrease when combined with other filtration materials;
- comply with local regulations.
- The card also shows a "Flow Rate vs.
- Pressure Increase" chart (flux in L/m²·hr against pressure in bar), a "Flow Rate vs.
- Capacity" chart (flux against total water flow in tons), a PMI pore-size distribution plot and two scanning electron microscope images — the source gives no sample ID or test report for these charts, so they are shown as the company's own illustrations.
濾芯規格資料 Filter Cartridge Spec Sheets
公司型錄中的各式濾芯。卡片列出重點；完整規格請展開「完整規格」或開啟型錄。
Cartridge types from the company catalog. Each card lists key points; expand "Full spec" or open the original image for complete details.
PP 熔噴濾心 PP melt-blown cartridge
- PP 熔噴，深層過濾，用於預過濾
- 精度 0.5~50 μm；長度 5~40 吋
- 最高 60°C；0.3 MPa @20°C
Polypropylene melt-blown, depth filtration, pre-filter stage · 0.5–50 μm; 5–40 in · Max 60°C; 0.3 MPa @20°C
完整規格 Full spec
- 材質聚丙烯(PP)，內徑φ28mm，外徑φ63mm、φ115mm，長度5~40inch，精度0.5~50um，端蓋雙開口/2-222/2-226系列，最高工作溫度60°C，最大工作壓差0.3MPa at 20°C、0.2MPa at 40°C、0.1MPa at 60°C。
- 用於液體的預過濾。
- Polypropylene, ⌀28mm inner / ⌀63mm or ⌀115mm outer, 5–40 inch lengths, 0.5–50 μm rating, DOE/2-222/2-226 end caps, 60°C max, max pressure 0.3 MPa@20°C / 0.2 MPa@40°C / 0.1 MPa@60°C.
- Depth filtration for liquids as a pre-filter stage.
PP 工業型熔噴濾心 PP industrial melt-blown cartridge
- 三層 PP 結構，用於工業製程
- 精度 0.5~50 μm；長度 5~40 吋
- 最高 70°C；0.3 MPa @20°C
Three-layer PP for industrial process filtration · 0.5–50 μm; 5–40 in · Max 70°C; 0.3 MPa @20°C
完整規格 Full spec
- 三層式PP結構，適用精密工業製程。
- 內外徑、長度、精度、端蓋規格同PP熔噴濾心（內徑φ28mm，外徑φ63mm、φ115mm，長度5~40inch，精度0.5~50um，端蓋雙開口/2-222/2-226系列），但耐溫提高至70°C，最大工作壓差0.3MPa at 20°C、0.2MPa at 40°C、0.1MPa at 70°C。
- Three-layer PP structure for precision industrial process filtration.
- Same ⌀28mm inner / ⌀63mm or ⌀115mm outer, 5–40 inch, 0.5–50 μm rating, DOE/2-222/2-226 end caps as the standard PP cartridge, but rated to 70°C, max pressure 0.3 MPa@20°C / 0.2 MPa@40°C / 0.1 MPa@70°C.

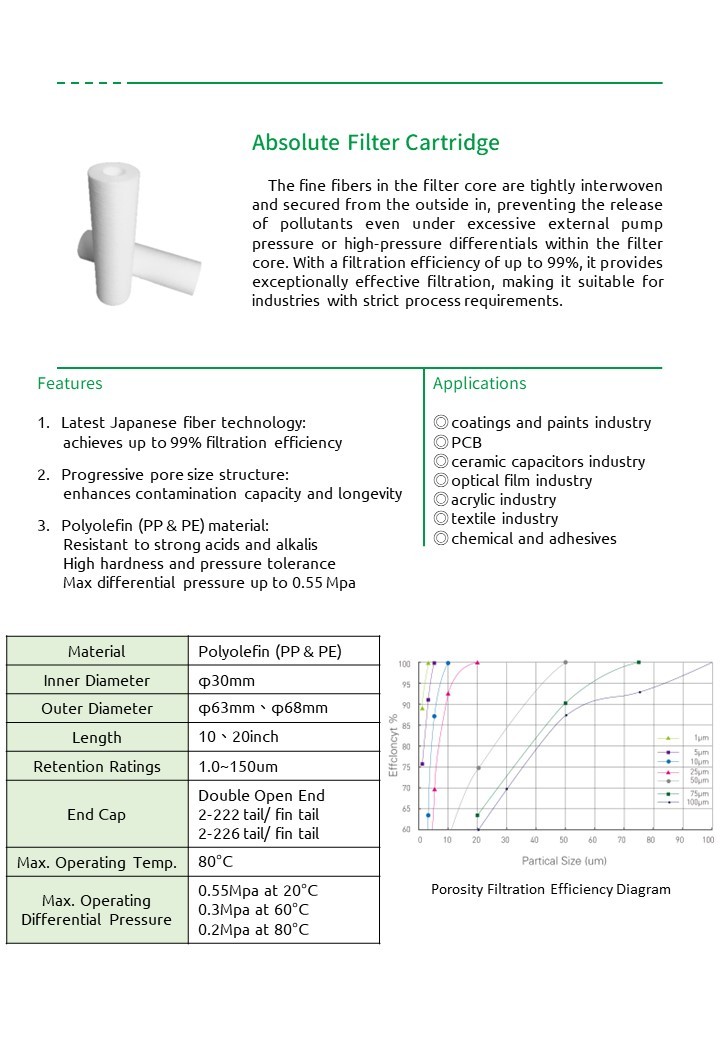

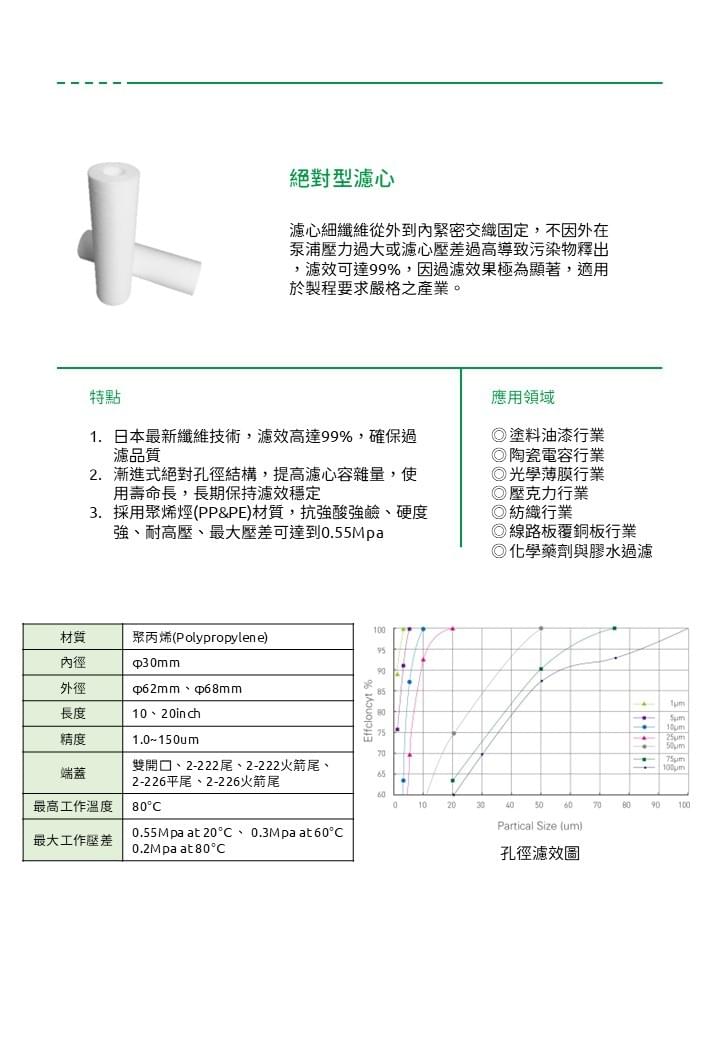

絕對型濾心 Absolute-rated cartridge
- PP&PE；精度 1.0~150 μm；10／20 吋
- 最高 80°C；0.55 MPa @20°C
- 「額定孔徑下濾效可達 99%」為型錄說法，未附測試方法
PP & PE; 1.0–150 μm; 10/20 in · Max 80°C; 0.55 MPa @20°C · "Up to 99%" at rated size is the source's claim — no test method given
完整規格 Full spec
- 材質：英文型錄規格表與兩份型錄特點欄寫聚烯烴（PP&PE），中文型錄規格表寫聚丙烯；
- 內徑φ30mm；
- 外徑：中文型錄寫φ62mm、φ68mm，英文型錄寫φ63mm、φ68mm（兩份型錄並列，此處不判定）；
- 長度10、20inch，精度1.0~150um，端蓋雙開口/2-222/2-226系列，最高工作溫度80°C，最大工作壓差0.55MPa at 20°C、0.3MPa at 60°C、0.2MPa at 80°C——型錄標示在額定孔徑下濾效「可達99%」；
- 未附測試方法或條件，屬供應商說法。
- Polyolefin (PP & PE) per the English-site table and both sites' feature lists (the Chinese-site table says polypropylene), ⌀30mm inner / outer ⌀62mm or ⌀68mm on the Chinese-site sheet but ⌀63mm or ⌀68mm on the English-site sheet (shown as printed, not resolved here), 10/20 inch, 1.0–150 μm rating, DOE/2-222/2-226 end caps, 80°C max, max pressure 0.55 MPa@20°C / 0.3 MPa@60°C / 0.2 MPa@80°C — the source states "up to 99%" efficiency at the rated micron size;
- no test method or conditions are given, so this is the supplier's claim.

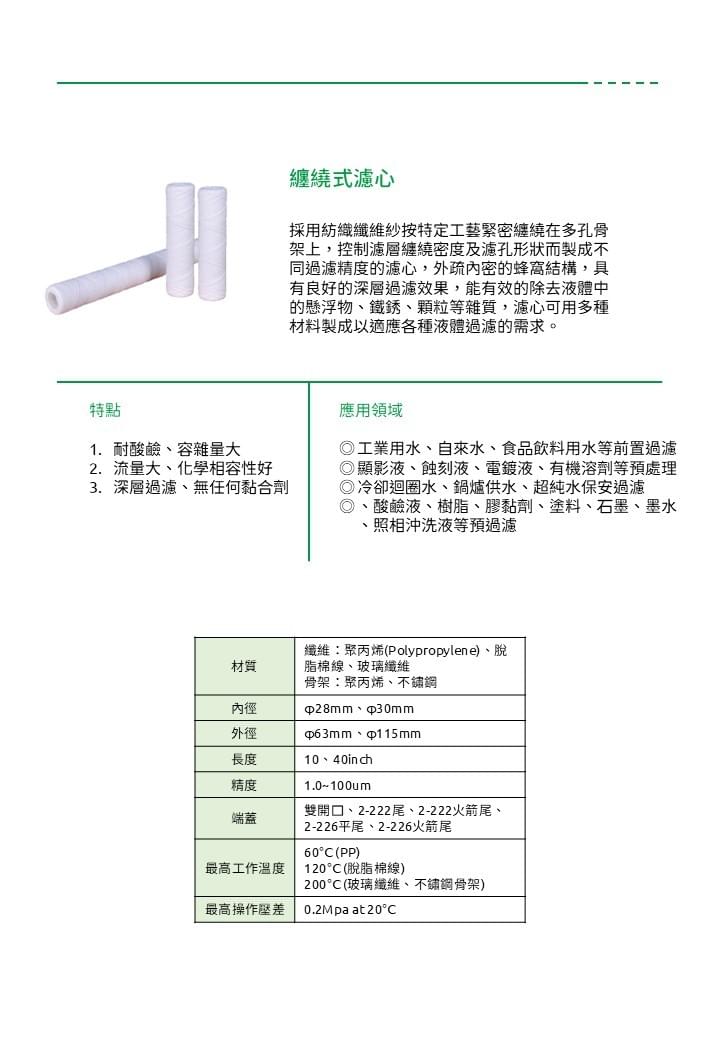

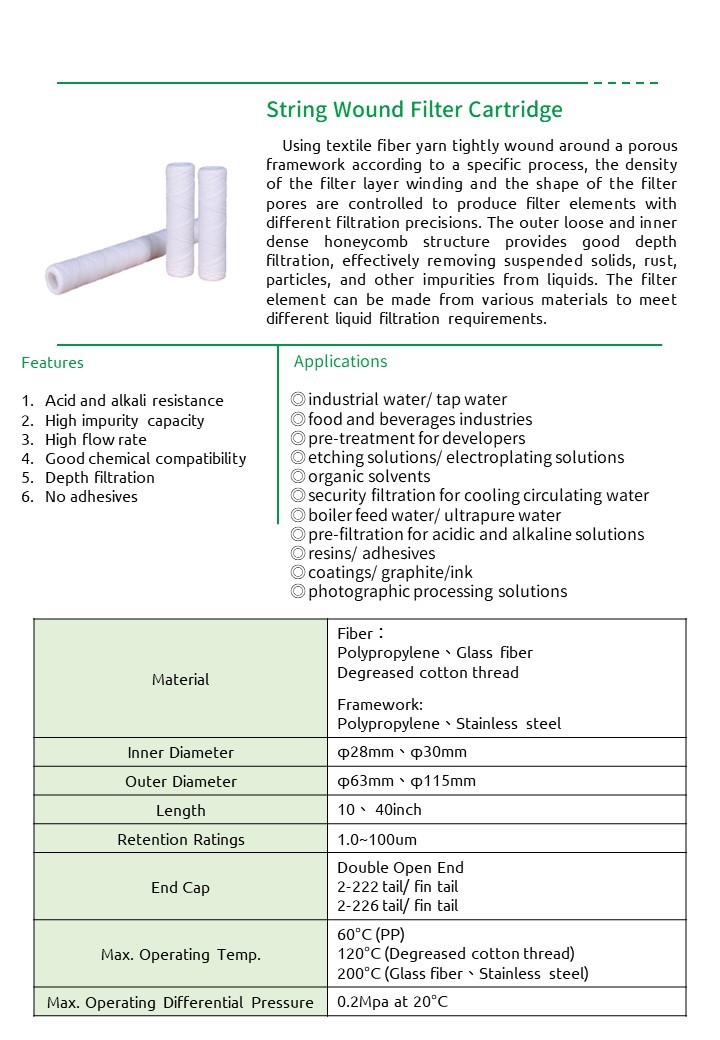

纏繞式濾心 String-wound cartridge
- 紗線纏繞於 PP 或不鏽鋼骨架；精度 1.0~100 μm
- 最高 60°C（PP）／120°C（脫脂棉紗）／200°C（玻璃纖維）
- 0.2 MPa @20°C
Yarn wound on a PP or stainless core; 1.0–100 μm · Max 60°C (PP) / 120°C (cotton) / 200°C (glass fiber) · 0.2 MPa @20°C
完整規格 Full spec
- 紡織纖維紗纏繞於多孔骨架（骨架為PP或不鏽鋼；
- 纖維可選PP、脫脂棉紗、玻璃纖維），內徑φ28mm、φ30mm，外徑φ63mm、φ115mm，長度10、40inch，精度1.0~100um，端蓋雙開口/2-222/2-226系列。
- 最高工作溫度依材質分別為60°C(PP)、120°C(脫脂棉紗)、200°C(玻璃纖維/不鏽鋼骨架)；
- 最高操作壓差0.2MPa at 20°C。
- Textile yarn wound onto a porous core (PP / degreased cotton yarn / glass fiber over a PP or stainless-steel frame), ⌀28mm or ⌀30mm inner / ⌀63mm or ⌀115mm outer, 10/40 inch, 1.0–100 μm rating, DOE/2-222/2-226 end caps.
- Max temperature 60°C (PP), 120°C (degreased cotton yarn) or 200°C (glass fiber / stainless frame);
- max pressure 0.2 MPa@20°C.

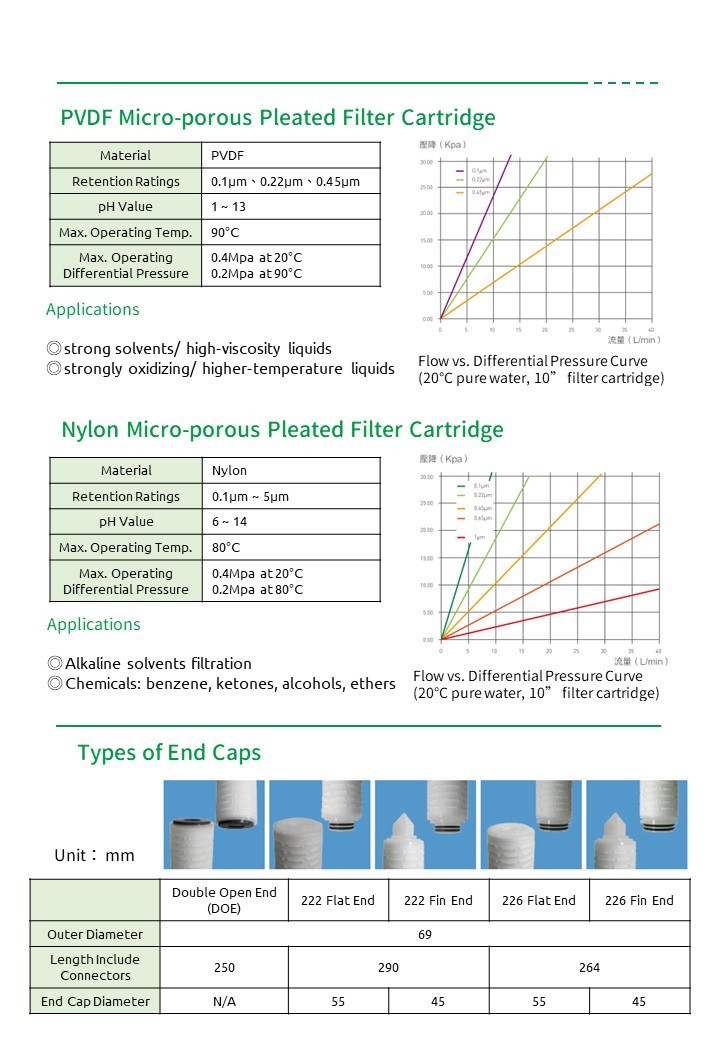

PVDF / 尼龍 微孔摺疊式濾心 PVDF & Nylon pleated cartridges
- PVDF：0.1~0.45 μm，pH 1~13，最高 90°C
- 尼龍：0.1~5 μm，pH 6~14，最高 80°C
- 0.4 MPa @20°C；DOE／222／226 端蓋
PVDF: 0.1–0.45 μm, pH 1–13, max 90°C · Nylon: 0.1–5 μm, pH 6–14, max 80°C · 0.4 MPa @20°C; DOE / 2-222 / 2-226 end caps
完整規格 Full spec
- PVDF微孔摺疊式濾心：精度0.1um、0.22um、0.45um，pH值1~13，最高工作溫度90°C，最大操作壓差0.4MPa at 20°C、0.2MPa at 90°C，適用強溶劑、高黏度、強氧化性、溫度較高液體過濾。
- 尼龍微孔摺疊式濾心：精度0.1um~5um，pH值6~14，最高工作溫度80°C，最大操作壓差0.4MPa at 20°C、0.2MPa at 80°C，適用鹼性溶劑（苯、酮、醇、醚等化學品）過濾。
- 兩者皆有雙開口/2-222/2-226端蓋。
- 型錄端蓋尺寸表（mm，外徑皆為69）：雙開（DOE）含接頭總長250，無端蓋直徑；
- 222平尾／222火箭尾290，端蓋直徑55／45；
- 226平尾／226火箭尾264，端蓋直徑55／45。
- PVDF: 0.1/0.22/0.45 μm rating, pH 1–13, 90°C max, max pressure 0.4 MPa@20°C / 0.2 MPa@90°C — for strong-solvent, high-viscosity, strong-oxidant or higher-temperature liquids.
- Nylon: 0.1–5 μm rating, pH 6–14, 80°C max, max pressure 0.4 MPa@20°C / 0.2 MPa@80°C — for alkaline-solvent filtration (benzene, ketone, alcohol, ether and similar chemicals).
- Both available in DOE/2-222/2-226 end-cap variants.
- End-cap table on the source (mm, outer diameter 69 for all): double open end (DOE) length incl. connectors 250, no end-cap diameter;
- 222 flat / 222 fin 290, end-cap diameter 55 / 45;
- 226 flat / 226 fin 264, end-cap diameter 55 / 45.
PP 微孔摺疊式濾心 PP pleated cartridge
- PP 摺疊式；精度 0.1~50 μm；5~40 吋
- 最高 80°C；0.4 MPa @20°C
- 型錄用途：酸鹼液／溶劑澄清、光阻、油墨塗料
Polypropylene pleated; 0.1–50 μm; 5–40 in · Max 80°C; 0.4 MPa @20°C · Listed uses: acid/alkali/solvent clarification, photoresist, ink and coatings
完整規格 Full spec
- 材質聚丙烯(PP)，內徑φ28mm，外徑φ69mm，長度5~40inch，精度0.1~50um，pH值1~13，端蓋雙開口/2-222/2-226系列，最高工作溫度80°C，最大操作壓差0.4MPa at 20°C、0.2MPa at 80°C。
- 適用酸鹼液/溶劑澄清過濾、光刻膠/光阻劑/顯影液終端過濾、墨水/塗料/油墨/膠黏劑終端過濾。
- Polypropylene, ⌀28mm inner / ⌀69mm outer, 5–40 inch, 0.1–50 μm rating, pH 1–13, DOE/2-222/2-226 end caps, 80°C max, max pressure 0.4 MPa@20°C / 0.2 MPa@80°C.
- For clarifying acids/alkalis/solvents, photoresist/developer final filtration, and ink/coating/adhesive final filtration.
特大流量／高流速摺疊式濾心 Extra-high-flow & high-flow pleated cartridges
- 特大流量：外徑 Ø152 mm，20~60 吋，1~100 μm
- 高流速：外徑 Ø70／115 mm，10~40 吋，1~50 μm
- 型錄用途含 RO 前處理、海水淡化預處理
Extra-high-flow: Ø152 mm, 20–60 in, 1–100 μm · High-flow: Ø70/115 mm, 10–40 in, 1–50 μm · Listed uses include RO pre-filtration and desalination pretreatment
完整規格 Full spec
- 特大流量摺疊式濾心：材質玻纖/PP，外徑φ152mm，長度20、40、60inch，精度1~100um，最高工作溫度80°C(PP)，最大操作壓差0.24MPa at 20°C，適用化學品過濾、電廠冷凝水過濾、油漆塗料過濾、RO保安過濾、海水淡化預處理。
- 高流速摺疊式濾心：材質PE/PP，外徑φ70mm、φ115mm，內徑φ28mm，長度10~40inch，精度1~50um，最高工作溫度60°C，最大操作壓差0.4MPa at 20°C，適用PCW過濾、RO前置過濾、化學品製程、飲料業。
- Extra-high-flow: fiberglass/PP, ⌀152mm outer, 20/40/60 inch, 1–100 μm rating, 80°C max, max pressure 0.24 MPa@20°C — for chemical filtration, power-plant condensate, paint/coating filtration, RO pre-filtration and seawater desalination pretreatment.
- High-flow: PE/PP, ⌀70mm or ⌀115mm outer / ⌀28mm inner, 10–40 inch, 1–50 μm rating, 60°C max, max pressure 0.4 MPa@20°C — for PCW filtration, RO pre-filtration, chemical process and beverage.
PES／PTFE（疏水性・親水性）摺疊式濾心 PES & PTFE (hydrophobic/hydrophilic) pleated cartridges
- PES：0.05~1.2 μm，pH 2~13，最高 80°C
- PTFE 疏水性：液體 0.1~0.45 μm／氣體 0.01~0.02 μm
- PTFE 親水性：0.22／0.45 μm，pH 1~14，最高 90°C
PES: 0.05–1.2 μm, pH 2–13, max 80°C · PTFE hydrophobic: liquid 0.1–0.45 μm / gas 0.01–0.02 μm · PTFE hydrophilic: 0.22 / 0.45 μm, pH 1–14, max 90°C
完整規格 Full spec
- PES微孔摺疊式濾心：精度0.05~1.2um，pH值2~13，最高工作溫度80°C，最大操作壓差0.4MPa at 20°C、0.2MPa at 80°C，型錄所列適用：超純水製備終端過濾、高純化學品（如酮、脂、醇）終端過濾。
- PTFE疏水性摺疊式濾心：精度液體0.1um/0.22um/0.45um、氣體0.01um/0.02um，pH值1~14，最高工作溫度90°C，最大操作壓差0.4MPa at 20°C、0.2MPa at 90°C，型錄所列適用：極性溶劑過濾、高純氣體過濾、腐蝕性/強氧化性液體過濾。
- PTFE親水性摺疊式濾心：精度0.22um、0.45um，pH值1~14，最高工作溫度90°C，最大操作壓差0.4MPa at 20°C、0.2MPa at 90°C，型錄所列適用：高溫液體過濾、強腐蝕性液體過濾、無菌原料藥等除菌過濾。
- PES: 0.05–1.2 μm rating, pH 2–13, 80°C max, max pressure 0.4 MPa@20°C / 0.2 MPa@80°C — listed uses: ultrapure-water final filtration and high-purity chemicals (ketones, esters, alcohols).
- PTFE hydrophobic: liquid 0.1/0.22/0.45 μm or gas 0.01/0.02 μm rating, pH 1–14, 90°C max, max pressure 0.4 MPa@20°C / 0.2 MPa@90°C — listed uses: polar-solvent filtration, high-purity gas filtration, corrosive or strong-oxidant liquids.
- PTFE hydrophilic: 0.22/0.45 μm rating, pH 1–14, 90°C max, max pressure 0.4 MPa@20°C / 0.2 MPa@90°C — listed uses: high-temperature liquids, strong-corrosive liquids, and sterile filtration of pharmaceutical raw materials.
粗胖型摺疊式濾心／囊式濾心 Large-diameter pleated cartridge & capsule cartridge
- 粗胖型摺疊式：外徑 Ø83／Ø131 mm，10 吋
- 濾材 PP／PES／PTFE／親水性 PTFE
- 囊式：PP 濾殼，濾材 PP／PES／PTFE／尼龍
Large-diameter pleated: Ø83 / Ø131 mm, 10 in · PP / PES / PTFE / hydrophilic PTFE media · Capsule: PP housing, PP / PES / PTFE / nylon media
完整規格 Full spec
- 粗胖型摺疊式濾心：濾材PP、PES、PTFE、親水性PTFE，外徑φ83mm、φ131mm，內徑φ28mm，長度10inch，精度PP 0.1~50um、PES 0.22~1.2um、PTFE 0.22~10um、親水性PTFE 0.5~1um，端蓋222雙密封圈(83mm)/226雙密封圈(83mm)/334單密封圈(131mm)，最高工作溫度PP/PES 80°C、PTFE 90°C，最大操作壓差0.4MPa at 20°C。
- 囊式濾心：濾材PP、PES、PTFE、Nylon，濾殼與支撐皆為PP，精度PP 0.1~50um、PES 0.05~1.2um、Nylon 0.1~1um、PTFE液體0.1/0.22/0.45um或氣體0.01/0.02um（兩份型錄皆印為「02 μm」），適用醫藥化工業、生物工程/電子業/化妝品過濾、食物/飲料/油墨/氣體過濾。
- Large-diameter pleated: PP/PES/PTFE/hydrophilic-PTFE media, ⌀83mm or ⌀131mm outer / ⌀28mm inner, 10 inch, rating 0.1–50 μm (PP), 0.22–1.2 μm (PES), 0.22–10 μm (PTFE) or 0.5–1 μm (hydrophilic PTFE), 222/226/334 sealed end caps, 80–90°C max, max pressure 0.4 MPa@20°C.
- Capsule cartridge: PP/PES/PTFE/Nylon media in a PP housing with PP support, rating 0.1–50 μm (PP), 0.05–1.2 μm (PES), 0.1–1 μm (Nylon), 0.1/0.22/0.45 μm liquid or 0.01/0.02 μm gas (PTFE;
- both sites print the second value as "02 μm") — for pharma/chemical, bioprocessing/electronics/cosmetics, and food/beverage/ink/gas filtration.
碳棒式／碳布式活性碳濾心 Carbon-block & carbon-cloth activated-carbon cartridges
- 碳棒式：5／10 μm，最高 75°C，去除餘氯、異味、有機物
- 碳布式：10 μm，最高 65°C，用於電鍍、PCB 藥液
- 10／20 吋
Carbon block: 5/10 μm, max 75°C — chlorine, odor, organics · Carbon cloth: 10 μm, max 65°C — plating, PCB chemicals · 10/20 in
完整規格 Full spec
- 碳棒式活性碳濾心：材質煤質碳，內徑φ28mm、φ30mm，外徑φ65mm、φ70mm，長度10、20inch，精度5、10um，最高工作溫度75°C，最大工作壓差0.3MPa at 20°C，適用飲用水、純水設備、內循環過濾，去除餘氯、異味及有機物。
- 碳布式活性碳濾心：材質活性碳布，內徑φ28mm，外徑φ65mm，長度10、20inch，精度10um，最高工作溫度65°C，最大工作壓差0.4MPa at 20°C，適用表面處理、電鍍製程、PCB藥液過濾。
- Carbon-block: coal-based carbon, ⌀28mm or ⌀30mm inner / ⌀65mm or ⌀70mm outer, 10/20 inch, 5/10 μm rating, 75°C max, max pressure 0.3 MPa@20°C — for drinking water, pure-water systems and internal-circulation filtration, removing residual chlorine, odor and organics.
- Carbon-cloth: activated-carbon cloth, ⌀28mm inner / ⌀65mm outer, 10/20 inch, 10 μm rating, 65°C max, max pressure 0.4 MPa@20°C — for surface treatment, electroplating and PCB chemical filtration.
碳纖式活性碳濾心 Carbon-fiber activated-carbon cartridge
- 活性碳纖維；精度 10 μm；10／20 吋
- 最高 65°C；0.4 MPa @20°C
- 「吸附力高 5~10 倍」為型錄說法，未附測試方法
Activated carbon fiber; 10 μm; 10/20 in · Max 65°C; 0.4 MPa @20°C · "5–10× adsorption" is the source's claim — no test method given
完整規格 Full spec
- 材質活性碳纖維，內徑φ28mm，外徑φ68mm，長度10、20inch，精度10um，最高工作溫度65°C，最大工作壓差0.4MPa at 20°C——型錄敘述專為電鍍工業和化學品工業設計，吸附力「較一般濾心高5~10倍」——屬供應商說法，未附測試方法或比較基準。
- 型錄標註「Made in Japan」。
- Activated carbon fiber, ⌀28mm inner / ⌀68mm outer, 10/20 inch, 10 μm rating, 65°C max, max pressure 0.4 MPa@20°C — the source describes it as designed for the electroplating and chemical industries, with adsorption "5–10×" that of a standard cartridge — the supplier's claim;
- no test method or comparison basis is given.
- Source card notes "Made in Japan."
燒結金屬濾芯與濾袋系列 Sintered Metal Cartridges & Filter Bags
以下為公司型錄規格圖卡。卡片列出重點；完整規格請展開「完整規格」或開啟型錄。
Spec cards from the catalog. Each card lists key points; expand "Full spec" or open the original image for complete details.
燒結金屬濾芯（3款） Sintered metal filter cartridges (3 types)
- 平板燒結、摺褶鋼網、燒結粉末 3 款
- 材質 SUS304／SUS316L／鈦／鎳／銅／其他合金
- 過濾精度 0.5~200 μm；長度 5~40 吋（可訂製）
- 型錄溫度／壓差有兩組不一致數值，待原廠確認
Planar sintered / pleated wire-mesh / sintered-powder types · SUS304, SUS316L, titanium, nickel, copper, other alloys · Retention 0.5–200 μm; length 5–40 in (custom) · Source gives two differing temperature/pressure figures — pending confirmation
完整規格 Full spec
- 型錄列出3款：平板燒結金屬濾芯（型錄僅有名稱與照片，無說明或數值）、摺褶鋼網濾芯、燒結粉末濾芯。
- 摺褶鋼網：以進口不鏽鋼燒結成多孔深層過濾材，梯形孔隙由粗到細；
- 型錄標示具絕對過濾、高持污量、高開孔面積；
- 該款文字標示最高工作溫度480°C、最大操作壓差「5 bar以上，可訂製規格」。
- 燒結粉末：不鏽鋼粉末模壓後高溫燒結；
- 該款文字標示最高工作溫度480°C、最大操作壓差「3 bar以上，可訂製規格」。
- 3款下方另有一張表格（未標明對應哪一款、哪個部件或何種工況）：材質SUS304／SUS316L／鈦／鎳／銅／其他合金；
- 長度5~40吋，可訂製；
- 過濾精度0.5~200 μm；
- 端蓋雙開放端／2-222／2-226／多種鎖固螺紋；
- 最高工作溫度65°C；
- 最高工作壓力0.5~1.5 MPa；
- 最大操作壓差0.4 MPa at 20°C。
- 未解決：表格的65°C／0.4 MPa與各款文字的480°C／3~5 bar互相矛盾，型錄未說明表格指濾芯、濾殼或密封件，或特定測試工況。
- 在原廠確認前，兩組數值都不應作為選型依據。
- Three types are pictured: Planar Sintered Metal Filter Cartridge (name and photo only — the source card gives no description or figures for this type), Pleated Wire Mesh Filter Cartridge, and Sintered Powder Filter Cartridge.
- Pleated wire mesh: sintered from imported stainless steel into a porous depth-type medium with a trapezoidal, coarse-to-fine pore structure;
- described as offering absolute filtration, high dirt-holding capacity and a high open area;
- its own text states max. operating temp 480°C and max. operating differential pressure "5 bar and above, custom specifications".
- Sintered powder: stainless-steel powder pressed in molds and sintered at high temperature;
- its own text states max. operating temp 480°C and max. operating differential pressure "3 bar and above, custom specifications".
- A table printed below all three types (with no label saying which type, component or condition it applies to) lists: material SUS304 / SUS316L / titanium / nickel / copper / other alloys;
- length 5–40 inch, custom;
- retention rating 0.5–200 μm;
- end cap double open end / 2-222 / 2-226 / various locking threads;
- max. operating temp 65°C;
- max. operating pressure 0.5–1.5 MPa;
- max. operating differential pressure 0.4 MPa at 20°C.
- Unresolved: the table's 65°C / 0.4 MPa conflict with the 480°C / 3–5 bar stated per type, and the source does not say whether the table refers to the cartridge, a housing or seal, or a specific test condition.
- Neither figure should be relied on until confirmed by the company.
不織布濾袋 Non-woven filter bag
- 材質 PP（耐溫90°C）或聚酯（耐溫135°C）
- 過濾精度 0.5~300 μm
- 車縫或熱熔焊接
- 列出 6 種尺寸，另可訂製
PP (90°C) or polyester (135°C) · Retention 0.5–300 μm · Sewn or thermal-fusion welded · 6 listed sizes, custom available
完整規格 Full spec
- 型錄標示以燒毛工藝防止纖維脫落及濾液污染；
- 三層蓬鬆過濾結構，截留固體及膠體顆粒；
- 長纖維、高強度。
- 材質PP或聚酯（型錄表：PP耐溫90°C、耐酸鹼「佳」；
- 聚酯耐溫135°C、「普通」）。
- 環材質：不鏽鋼、鍍鋅、尼龍、PP或PE。
- 類型：車縫或熱熔焊接。
- 過濾精度0.5~300 μm。
- 列出尺寸：1# φ180×420mm、2# φ180×810mm、3# φ105×230mm、4# φ105×380mm、5# φ150×520mm、Y系列 φ202×330mm（共列出6種），另可訂製特殊規格。
- A singeing process is described as preventing fiber shedding and filtrate contamination;
- three-layer fluffy filtration structure for solids and colloidal particles;
- long, high-strength fibers.
- Material PP or polyester (source table: PP 90°C, acid/alkali resistance "great";
- polyester 135°C, "average").
- Ring: stainless steel, galvanized, nylon, PP or PE.
- Type: sewn or thermal-fusion welded.
- Retention rating 0.5–300 μm.
- Sizes listed: 1# φ180×420 mm, 2# φ180×810 mm, 3# φ105×230 mm, 4# φ105×380 mm, 5# φ150×520 mm, Y series φ202×330 mm (6 listed sizes), plus other special specifications on request.
網布濾袋 Mesh filter bag
- 材質尼龍或 PEMO（聚酯）網布
- 尼龍 10~800 目；PEMO 20~420 目
- 可拆洗重複使用
- 列出 6 種尺寸，另可訂製
Nylon or PEMO (polyester) monofilament mesh · Nylon 10–800 mesh; PEMO 20–420 mesh · Removable and washable for reuse · 6 listed sizes, custom available
完整規格 Full spec
- 型錄標示高持污量、高流速、耐壓，可拆洗重複使用，適合高雜質液體。
- 規格表材質：尼龍或PEMO（型錄溫度表：尼龍耐溫160°C、耐酸「差」、耐鹼「佳」；
- 聚酯耐溫135°C、「普通」）。
- 環材質：不鏽鋼、鍍鋅、尼龍、PP或PE。
- 類型：車縫或熱熔焊接。
- 過濾精度：尼龍10~800目，PEMO 20~420目。
- 列出尺寸：1#~5#（φ180×420、φ180×810、φ105×230、φ105×380、φ150×520mm）及Y系列φ202×330mm（共列出6種），另可訂製特殊規格。
- Described as offering high dirt-holding capacity, high flow rate and pressure resistance, and as removable and washable for repeated use;
- suited to liquids with high impurity loads.
- Spec table material: Nylon or PEMO (source temperature table: nylon 160°C, acid resistance "bad", alkali "great";
- polyester 135°C, "average").
- Ring: stainless steel, galvanized, nylon, PP or PE.
- Type: sewn or thermal-fusion welded.
- Retention rating: nylon 10–800 mesh, PEMO 20–420 mesh.
- Sizes listed: 1#–5# (φ180×420, φ180×810, φ105×230, φ105×380, φ150×520 mm) and Y series φ202×330 mm (6 listed sizes), plus other special specifications.
不鏽鋼濾袋／PTFE濾袋 Stainless steel & PTFE filter bags
- 不鏽鋼：SUS304／SUS316 單絲網，60~500 目，可重複使用
- PTFE：型錄標示可連續 250°C 以上、瞬間 280°C
- 耐化性敘述為供應商說法，見完整規格
- 不鏽鋼列出 4 種、PTFE 列出 6 種尺寸，另可訂製
Stainless: SUS304/SUS316 monofilament mesh, 60–500 mesh, reusable · PTFE: source states >250°C continuous, 280°C short-term · Chemical-resistance wording is the supplier's claim — see full spec · Stainless 4 listed sizes; PTFE 6 listed sizes; custom available
完整規格 Full spec
- 不鏽鋼濾袋：SUS304或SUS316依規格編織並熱定型為單絲網布；
- 型錄標示強度高、壓力變化下不變形、表面光滑易清洗可重複使用。
- 環材質不鏽鋼或鍍鋅；
- 過濾精度60~500目；
- 列出尺寸1#~4#（φ180×420、φ180×810、φ105×230、φ105×380mm），另可訂製。
- PTFE濾袋：型錄標示可於250°C以上連續操作、承受瞬間280°C，並描述為「完全耐酸鹼與氧化、幾乎不可燃、唯一不老化的纖維」、「使用壽命極長」。
- 以上為供應商型錄用語，亦非無條件保證——PTFE實際相容性仍取決於化學品種類、濃度、溫度與機械條件。
- 環材質不鏽鋼或鍍鋅；
- 過濾精度60~500目；
- 列出尺寸1#~5#（同上另加φ150×520mm）及Y系列φ202×330mm（共列出6種），另可訂製。
- Stainless steel filter bag: SUS304 or SUS316 woven to specification and heat-set into a monofilament mesh;
- described as high-strength, not deforming under pressure changes, smooth and easy to clean for reuse.
- Ring stainless steel or galvanized;
- retention rating 60–500 mesh;
- sizes listed 1#–4# (φ180×420, φ180×810, φ105×230, φ105×380 mm), plus other special specifications.
- PTFE filter bag: the source states it can operate continuously above 250°C and withstand 280°C instantaneously, and describes it as "completely resistant to acids, alkalis and oxidation, nearly non-flammable, and the only fiber that does not age", with "an extremely long service life".
- These are the supplier's catalog wording, not an unconditional guarantee — PTFE compatibility still depends on the specific chemical, concentration, temperature and mechanical conditions.
- Ring stainless steel or galvanized;
- retention rating 60–500 mesh;
- sizes listed 1#–5# (as above plus φ150×520 mm) and Y series φ202×330 mm (6 listed sizes), plus other special specifications.
披覆濾袋／防靜電集塵濾袋 Coated & antistatic dust-collection filter bags
- 披覆：於所列濾材上加 PTFE 微孔膜
- 型錄標示可攔截至 2.5 μm 粉塵，未附測試條件
- 防靜電：防靜電聚酯針軋氈
- 型錄附 8 種材質對照表
Coated: PTFE microporous membrane on the bag materials listed · Source states capture down to 2.5 μm dust — no test conditions given · Antistatic: antistatic polyester needle-punched felt · Includes an 8-material comparison table
完整規格 Full spec
- 披覆濾袋：型錄標示卡上所列各材質皆可提供披覆版本，其PTFE微孔膜「可有效過濾小至2.5微米的粉塵」，並描述為因應PM2.5、在「各種條件下」使排放維持於10 mg/Nm³以下的方案。
- 以上為供應商說法；
- 型錄未附測試方法、操作條件或報告，實際排放取決於系統設計、粉塵特性與操作，亦非保證。
- 防靜電集塵濾袋：以防靜電聚酯針軋氈製成；
- 型錄說明可燃粉塵（如麵粉、化學粉末、煤）濃度達爆炸極限時可能因靜電火花引燃，處理此類粉塵的袋式集塵需使用防靜電針軋氈。
- 型錄另附8種材質（聚丙烯、聚酯、壓克力、PPS、芳綸、P84、PTFE、玻璃纖維）對照表：連續乾／濕熱溫度、短期最高乾熱溫度、密度、含濕率、易燃性及化學抗性。
- Coated filter bag: the source says coated versions are offered for all the materials on the card, and that its PTFE microporous membranes are "highly effective in filtering out dust particles as small as 2.5 micrometers", describing them as a solution for PM2.5 and for keeping emissions "below 10 mg/Nm³ in various conditions".
- These are the supplier's statements;
- the card gives no test method, operating conditions or report, and actual emissions depend on system design, dust properties and operation — not a guarantee.
- Antistatic dust collection filter bags: made from antistatic polyester needle-punched felt;
- the card explains that combustible dust (e.g. flour, chemical powders, coal) above its explosion limit can ignite from static discharge, and that baghouses handling such dust need antistatic needle-punched felt.
- The card also includes a comparison table for 8 materials (polypropylene, polyester, acrylic, PPS, aramid, P84, PTFE, fiberglass): continuous dry/wet heat temperature, short-term max dry heat, density, moisture regain, flammability and chemical resistance.
吸油濾袋／絕對過濾濾袋 Oil sorbent & absolute filter bags
- 吸油：多層複合材，吸油兼截留雜質
- 絕對過濾：型錄標示 100% 焊接結構、梯度深層過濾
- 效率（>99.98%）為型錄說法，未附測試方法
- 吸油濾袋列出 5 種尺寸，另可訂製
Oil sorbent: multi-layer composite, oil absorption + particle capture · Absolute: source says 100% welded construction, gradient depth filtration · Efficiency figure (>99.98%) is the source's claim, no test method given · Oil sorbent: 5 listed sizes, custom available
完整規格 Full spec
- 吸油濾袋：型錄標示可快速吸附超過自身重量的各種油類；
- 多層複合深層過濾結構，兼具吸油與截留雜質；
- 化學相容性廣、持污量高。
- 材質複合材料；
- 環材質不鏽鋼或PP；
- 列出尺寸1#~5#（φ180×420、φ180×810、φ105×230、φ105×380、φ150×520mm），另可訂製。
- 絕對過濾濾袋：型錄標示適用高精度過濾；
- 型錄並稱梯度深層過濾「效率超過99.98%」——型錄未註明粒徑、測試方法或條件，屬供應商說法。
- 型錄另稱 100% 焊接結構可防止針孔洩漏，密封邊可自動貼合。
- 型錄所列應用：食品飲料、製藥、微電子、化工、油墨與水處理。
- Oil sorbent filter bag: described as quickly adsorbing various oils exceeding its own weight;
- multi-layer composite depth-filtration structure combining oil absorption and impurity capture;
- broad chemical compatibility, high dirt-holding capacity.
- Material composite;
- ring stainless steel or PP;
- sizes listed 1#–5# (φ180×420, φ180×810, φ105×230, φ105×380, φ150×520 mm), plus other special specifications.
- Absolute filter bag: the source lists it for high-precision filtration and states gradient depth filtration "exceeding 99.98% efficiency" — no particle size, test method or conditions are given on the card, so this is the supplier's claim.
- The source also describes a 100% welded construction to avoid pinhole leakage, with a self-adjusting sealing edge.
- Applications listed: food & beverage, pharmaceutical, microelectronics, chemical, ink and water treatment.

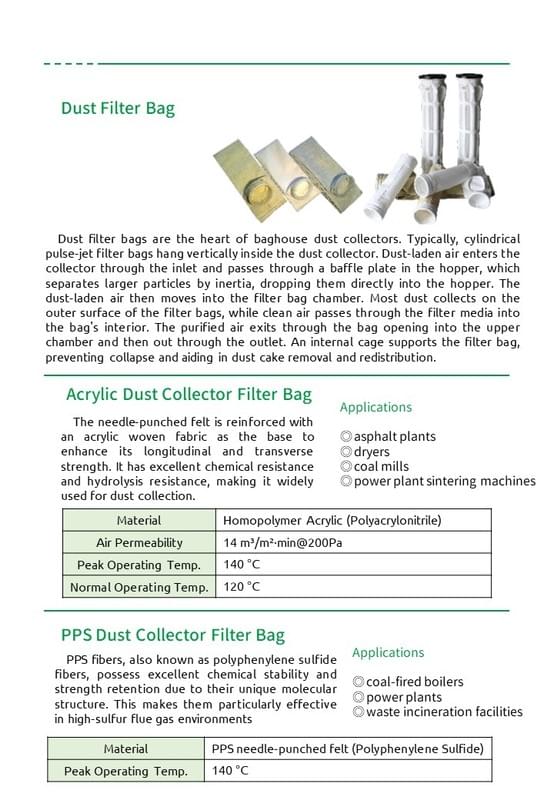

集塵濾袋（總論／壓克力／PPS） Dust collector filter bags — general, acrylic & PPS
- 袋式集塵器運作說明（附圖）
- 壓克力針軋氈：尖峰 140°C、正常 120°C
- PPS 針軋氈：尖峰 140°C，適用高硫煙氣
- 溫度為型錄值，實際依工況確認
How a baghouse dust collector works (diagram) · Acrylic felt: peak 140°C, normal 120°C · PPS felt: peak 140°C, for high-sulfur flue gas · Temperatures are catalog values — confirm for your conditions
完整規格 Full spec
- 集塵濾袋（總論）：型錄說明袋式集塵器——含塵氣流由入口進入，經擋板以慣性使較大顆粒落入集塵斗，再進入濾袋室；
- 粉塵附著於濾袋外表面，潔淨空氣穿過濾材由出口排出；
- 內部骨架支撐濾袋並輔助清灰。
- 壓克力集塵濾袋：以壓克力織布為基布強化的針軋氈，型錄標示耐化學及耐水解性佳；
- 所列用途為瀝青廠、乾燥機、煤磨機、電廠燒結機；
- 材質均聚壓克力（聚丙烯腈），透氣度14 m³/m²·min@200Pa，尖峰操作溫度140°C，正常操作溫度120°C。
- PPS集塵濾袋：聚苯硫醚纖維，型錄標示化學穩定、適用高硫煙氣；
- 所列用途為燃煤鍋爐、電廠、廢棄物焚化；
- 材質PPS針軋氈，尖峰操作溫度140°C。
- Dust filter bag (general): the card explains the baghouse dust collector — dust-laden air enters through the inlet, a baffle plate drops larger particles into the hopper by inertia, the air then passes into the filter-bag chamber;
- dust collects on the bag's outer surface while cleaned air passes through the media and exits through the outlet;
- an internal cage supports the bag and aids cake release.
- Acrylic dust collector filter bag: needle-punched felt on an acrylic woven scrim for strength, described as having good chemical and hydrolysis resistance;
- listed uses asphalt plants, dryers, coal mills, power-plant sintering machines;
- material homopolymer acrylic (polyacrylonitrile), air permeability 14 m³/m²·min @200 Pa, peak operating temp 140°C, normal operating temp 120°C.
- PPS dust collector filter bag: polyphenylene-sulfide fiber, described as chemically stable and suited to high-sulfur flue gas;
- listed uses coal-fired boilers, power plants, waste incineration;
- material PPS needle-punched felt, peak operating temp 140°C.
集塵濾袋（芳綸／P84／PTFE／玻璃纖維） Dust collector filter bags — aramid, P84, PTFE & fiberglass
- 芳綸：長期 204°C、短期 240°C
- P84（聚醯亞胺）：最高 260°C
- PTFE、玻璃纖維針軋氈用於嚴苛煙氣
- 溫度為型錄值，實際依工況確認
Aramid: 204°C long-term, 240°C short-term · P84 (polyimide): up to 260°C · PTFE and fiberglass felts for harsh flue gas · Temperatures are catalog values — confirm for your conditions
完整規格 Full spec
- 芳綸濾袋：型錄列長期耐溫204°C、短期240°C，耐鹼性強、耐酸性中等，適用約180~220°C氣體；
- 所列用途：鋼鐵、水泥、電力、化工。
- P84高溫濾袋：聚醯亞胺針軋氈，型錄列最高260°C；
- 型錄標示其葉狀纖維截面可提升過濾效率，並耐水解與氧化；
- 所列用途：混凝土攪拌、水泥、廢棄物焚化、燃煤鍋爐。
- PTFE集塵濾袋：型錄標示耐高溫、耐磨、耐腐蝕、耐化學反應；
- 適用鋼鐵、發電、廢棄物焚化等嚴苛煙氣。
- 玻璃纖維濾袋：型錄標示耐高溫耐腐蝕、尺寸穩定、伸縮率低、強度高；
- 三維微孔氈，孔隙率高、氣阻低；
- 所列用途：鋼鐵、冶金、碳黑、電力、水泥、化工。
- Aramid filter bag: listed as withstanding 204°C long-term and 240°C short-term, with strong alkali and moderate acid resistance, for gases around 180–220°C;
- uses listed: steel, cement, power, chemical.
- P84 high-temperature filter bag: needle-punched polyimide felt, listed up to 260°C;
- the source says its lobed fiber cross-section improves filtration efficiency, with hydrolysis and oxidation resistance;
- uses listed: concrete mixing, cement, waste incineration, coal-fired boilers.
- PTFE dust collector filter bag: described as resistant to high temperature, abrasion, corrosion and chemical attack;
- for harsh flue gas in steel, power generation, waste incineration.
- Fiberglass filter bag: described as heat- and corrosion-resistant, dimensionally stable with low elongation and high strength;
- 3D microporous felt with high porosity and low air resistance;
- uses listed: steel, metallurgy, carbon black, power, cement, chemical.
空壓機濾芯相容對照表 Air-compressor filter cartridge cross-reference chart
- 對照參考表，非產品規格
- 對應 8 個第三方空壓濾芯品牌型號
- 不代表與這些品牌有隸屬關係
Reference chart, not a product spec · Maps cartridges to 8 third-party compressor-filter brands · Not a claim of affiliation with those brands
完整規格 Full spec
- 相容對照表，非膜淨材料獨立產品規格：此圖將公司空壓機濾芯對應到8個第三方空壓濾芯品牌的型號範圍與過濾等級——Domnick Hunter（K009~K620）、Donaldson/Ultrafilter（02/05~30/50）、Zander（1030~3075）、Hankison（12~48）、Hiross（004~240）、Parker（10-25~85-360）、BEA（30~1400）、SMC（150~850），各附過濾等級代碼。
- 僅供參考對照，不代表膜淨材料為這些品牌製造或與其有隸屬關係。
- A compatibility/cross-reference chart, not a standalone mbranfiltra product spec: it maps the company's air-compressor filter cartridges against 8 third-party compressor-filter brands' model ranges and filtration grades — Domnick Hunter (K009–K620), Donaldson/Ultrafilter (02/05–30/50), Zander (1030–3075), Hankison (12–48), Hiross (004–240), Parker (10-25–85-360), BEA (30–1400), SMC (150–850) — each with its own filtration-grade code list.
- Shown for reference only, not as a claim that mbranfiltra manufactures for or is affiliated with these brands.
溫度、耐化性、過濾效率、排放等性能敘述皆引自原型錄圖卡的供應商說明，非獨立檢測結果，亦非無條件保證；實際適用性依工況而定，請洽詢確認。
Performance statements (temperature, chemical resistance, efficiency, emissions) are quoted from the supplier's original catalog graphics — they are not independent test results or unconditional guarantees. Actual suitability depends on operating conditions; please confirm with us for your application.
袋式過濾器殼體 Bag Filter Housings
裝載濾袋、用於液體過濾的不鏽鋼殼體。型號名稱沿用原型錄；卡片列出重點，完整規格與型錄可展開或開啟。
Stainless-steel housings that hold filter bags for liquid filtration. Catalog model names are kept as printed; each card lists key points, with the full spec and original images behind it.
PT 頂入式袋式過濾器 PT top-inlet bag filter (catalog name: PT Top-Inlet Baghouse Filter)
- 不鏽鋼袋式過濾器殼體，型錄標示為液體進出口
- 材質 SUS304／SUS316／SUS316L
- 設計壓力 15 kg/cm²（225 psi）；操作壓力 10 kg/cm²（150 psi）
- 型錄用途：石化、化工、高溫高壓、高黏度過濾
Stainless-steel bag filter housing for liquids (per the source drawing) · SUS304 / SUS316 / SUS316L · Design 15 kg/cm² (225 psi); operating 10 kg/cm² (150 psi) · Listed uses: petrochemical, chemical, high-temp/pressure, high-viscosity
完整規格 Full spec
- 型錄原名：PT Top-Inlet Baghouse Filter。
- 附金屬籃網的不鏽鋼袋式過濾器殼體；
- 公司零件圖將進出口標為「入水口／出水口」，流量以m³/hr與GPM、容量以公升標示。
- 型錄所列應用：石化製程、化學製程、高溫／高壓過濾、高黏度過濾。
- 材質SUS304／SUS316／SUS316L；
- 入出口2"~2.5"螺牙或法蘭（註：同圖訂購代碼表另列30＝3"）；
- 排放口1/4" PT-F；
- 排氣口1/4" PT-F；
- O型環EPDM，可選Viton或鐵氟龍披覆Viton；
- 設計壓力15 kg/cm²（225 psi）；
- 操作壓力10 kg/cm²（150 psi）；
- 表面處理外部電解、內部酸洗，可選X光或EP電解。
- 訂購代碼：濾袋尺寸1＝No.1／2＝No.2；
- 材質4＝SUS304、6＝SUS316、6L＝SUS316L；
- 進出口位置SB＝側進底出、SS＝側進側出；
- 口徑20＝2"、25＝2-1/2"、30＝3"；
- 接頭P＝PT、N＝NPT、J＝JIS 10K、A＝ANSI 150P、D＝DIN PN10、C＝快拆夾；
- O型環E＝EPDM、V＝Viton、S＝矽膠、N＝NBR、Q＝鐵氟龍＋矽膠；
- 表面A＝酸洗、E＝電解、P＝拋光、S＝噴砂。
- Catalog name: PT Top-Inlet Baghouse Filter.
- A stainless-steel bag filter housing with a perforated basket;
- the company's parts drawing labels the ports water inlet / water outlet (入水口 / 出水口) and gives flow in m³/hr and GPM and capacity in litres.
- Applications listed: petrochemical processing, chemical processing, high-temperature/pressure filtration, high-viscosity filtration.
- Material SUS304 / SUS316 / SUS316L;
- inlet & outlet 2"–2.5" threaded or flange (note: the ordering-code table on the same card also lists 30 = 3");
- discharge port 1/4" PT-F;
- exhaust port 1/4" PT-F;
- O-ring EPDM, optional Viton or Teflon-coated Viton;
- designed pressure 15 kg/cm² (225 psi);
- operating pressure 10 kg/cm² (150 psi);
- surface treatment external electrolysis and internal pickling, optional X-ray or EP electrolysis.
- Ordering code: bag size 1 = No.1 / 2 = No.2;
- material 4 = SUS304, 6 = SUS316, 6L = SUS316L;
- position SB = side inlet/bottom outlet, SS = side inlet/side outlet;
- size 20 = 2", 25 = 2-1/2", 30 = 3";
- connection P = PT, N = NPT, J = JIS 10K, A = ANSI 150P, D = DIN PN10, C = clamp;
- O-ring E = EPDM, V = Viton, S = silicone, N = NBR, Q = Teflon + silicone;
- finish A = pickling, E = electrolysis, P = polished, S = sandblasting.
PT 頂入式袋式過濾器：零件與尺寸 PT top-inlet bag filter — parts & dimensions
- 12 項零件，含金屬內網與入／出水口
- No.1：流量 20 m³/hr（90 GPM）、16 L、40 kg
- No.2：流量 45 m³/hr（200 GPM）、31 L、48 kg
12 labeled parts incl. basket and water inlet/outlet · No.1: flow 20 m³/hr (90 GPM), 16 L, 40 kg · No.2: flow 45 m³/hr (200 GPM), 31 L, 48 kg
完整規格 Full spec
- 零件（型錄本身中英對照）：1 把手、2 排氣口、3~4 O型環、5 上蓋、6 桶唇、7 單眼螺絲組、8 入水口、9 桶體、10 金屬內網、11 出水口、12 活動腳架。
- 尺寸（mm），1PC-Bag No.1／No.2：A Ø216／Ø216；
- B 555／905；
- C 390／740；
- D 270／270；
- E 515／515；
- F（PCD）Ø310／Ø310；
- G Ø12／Ø12；
- 流量20／45 m³/hr、90／200 GPM（型錄誤印為「GMP」）；
- 重量40／48 kg；
- 容量16／31 L。
- Parts (labeled bilingually on the original): 1 handle, 2 vent, 3–4 O-rings, 5 top cover, 6 shell flange, 7 eye bolt, 8 inlet (入水口), 9 shell, 10 basket, 11 outlet (出水口), 12 support leg.
- Dimensions (mm), 1PC-Bag No.1 / No.2: A Ø216 / Ø216;
- B 555 / 905;
- C 390 / 740;
- D 270 / 270;
- E 515 / 515;
- F (PCD) Ø310 / Ø310;
- G Ø12 / Ø12;
- flow rate 20 / 45 m³/hr and 90 / 200 GPM (printed "GMP" on the source);
- weight 40 / 48 kg;
- capacity 16 / 31 L.
PL 單袋式袋式過濾器 PL single-bag filter housing (catalog name: PL Single Bag Baghouse Filter)
- 4 種尺寸（Bag No.1~No.4）：流量 4.5~45 m³/hr、容量 11~46 L
- 材質 SUS304／SUS316／SUS316L；進出口 1/2"~3" 螺牙、法蘭或衛生級接頭
- 設計壓力 15 kg/cm²（225 psi）；操作壓力 10 kg/cm²（150 psi）
- 型錄用途：飲料、RO 前處理、PCW、循環過濾、化工、回收水、電泳塗裝
4 sizes (Bag No.1–No.4): 4.5–45 m³/hr, 11–46 L · SUS304 / SUS316 / SUS316L; 1/2"–3" threaded, flange or sanitary fittings · Design 15 kg/cm² (225 psi); operating 10 kg/cm² (150 psi) · Listed uses: beverage, RO prefiltration, PCW, circulation, chemical, reclaimed water, electrophoretic coating
完整規格 Full spec
- 型錄原名：PL Single Bag Baghouse Filter。
- 型錄所列應用：飲料業、RO前處理、PCW過濾、循環過濾、化學製程、回收水過濾、電泳塗裝過濾。
- 材質SUS304／SUS316／SUS316L；
- 入出口1/2"~3"螺牙、法蘭或衛生級接頭；
- 排放口3/4" PT-M；
- 排氣口1/4" PT-F；
- O型環EPDM，可選Viton或鐵氟龍披覆Viton；
- 設計壓力15 kg/cm²（225 psi）；
- 操作壓力10 kg/cm²（150 psi）；
- 表面處理外部電解、內部酸洗，可選X光或EP電解。
- 訂購代碼：濾袋1~4＝Bag No.1~No.4；
- 材質4／6／6L＝SUS304／SUS316／SUS316L；
- 進出口位置SB側進底出、SS側進側出；
- 口徑04＝1/2"、06＝3/4"、10＝1"、15＝1-1/2"、20＝2"、25＝2-1/2"、30＝3"；
- 接頭P＝PT、N＝NPT、J＝JIS 10K、A＝ANSI 150P、D＝DIN PN10、C＝快拆夾；
- O型環E／V／S／N／Q（EPDM／Viton／矽膠／NBR／鐵氟龍＋矽膠）；
- 表面A酸洗、E電解、P拋光。
- 零件（型錄中英對照）：束環、排氣口、上蓋、O型環、桶唇、濾袋座、入水口、桶體、金屬內網、端板、出水口、活動腳架。
- 尺寸（A／B／C／D／E／F PCD／G，mm；
- 流量m³/hr／GPM；
- 重量kg；
- 容量L）：No.1 Ø232／735／550／176／515／Ø323／Ø12；20／90；21；
- 27——No.2 Ø232／1190／1005／176／515／Ø323／Ø12；45／200；26；
- 46——No.3 Ø180／535／360／150／350／Ø252／Ø12；4.5／20；14；
- 11——No.4 Ø180／670／495／150／350／Ø252／Ø12；9／45；15；14。
- （型錄將GPM誤印為「GMP」。）
- Catalog name: PL Single Bag Baghouse Filter.
- Applications listed: beverage industries, RO prefiltration, PCW filtration, circulation filtration, chemical processing, reclaimed water filtration, electrophoretic coating filtration.
- Material SUS304 / SUS316 / SUS316L;
- inlet & outlet 1/2"–3" threaded, flange or sanitary fittings;
- discharge port 3/4" PT-M;
- exhaust port 1/4" PT-F;
- O-ring EPDM, optional Viton or Teflon-coated Viton;
- designed pressure 15 kg/cm² (225 psi);
- operating pressure 10 kg/cm² (150 psi);
- surface external electrolysis and internal pickling, optional X-ray or EP electrolysis.
- Ordering code: bag 1–4 = Bag No.1–No.4;
- material 4 / 6 / 6L = SUS304 / SUS316 / SUS316L;
- position SB side-in/bottom-out, SS side-in/side-out;
- size 04 = 1/2", 06 = 3/4", 10 = 1", 15 = 1-1/2", 20 = 2", 25 = 2-1/2", 30 = 3";
- connection P = PT, N = NPT, J = JIS 10K, A = ANSI 150P, D = DIN PN10, C = clamp;
- O-ring E / V / S / N / Q (EPDM / Viton / silicone / NBR / Teflon + silicone);
- finish A pickling, E electrolysis, P polished.
- Parts (bilingual on the original): clamp, vent, top cover, O-ring, shell flange, filter bag plate, inlet (入水口), shell, basket, bottom cover, outlet (出水口), support leg.
- Dimensions (A / B / C / D / E / F PCD / G, mm;
- flow m³/hr / GPM;
- weight kg;
- capacity L): No.1 Ø232 / 735 / 550 / 176 / 515 / Ø323 / Ø12; 20 / 90; 21;
- 27 — No.2 Ø232 / 1190 / 1005 / 176 / 515 / Ø323 / Ø12; 45 / 200; 26;
- 46 — No.3 Ø180 / 535 / 360 / 150 / 350 / Ø252 / Ø12; 4.5 / 20; 14;
- 11 — No.4 Ø180 / 670 / 495 / 150 / 350 / Ø252 / Ø12; 9 / 45; 15;
- 14. (GPM is printed "GMP" on the source.)
開啟型錄原圖 Open original imageEnglish中英 / ZH–EN
下載型錄原圖 Download original imageEnglish中英 / ZH–EN
PV／PH 單袋高壓袋式過濾器 PV / PH single-bag high-pressure filter housings (catalog name: PV/PH Single Bag High-Pressure Baghouse Filter)
- PV：Bag No.1／No.2，流量 20／45 m³/hr，容量 23／37 L
- PH：Bag No.3／No.4，流量 4.5／9 m³/hr，容量 6.3／7.8 L
- 材質 SUS304／SUS316／SUS316L；設計 15 kg/cm²（225 psi）、操作 10 kg/cm²（150 psi）
- 型錄用途：飲料、RO 前處理、PCW、循環過濾、化工、回收水
PV: Bag No.1/No.2, 20 / 45 m³/hr, 23 / 37 L · PH: Bag No.3/No.4, 4.5 / 9 m³/hr, 6.3 / 7.8 L · SUS304 / SUS316 / SUS316L; design 15 kg/cm² (225 psi), operating 10 kg/cm² (150 psi) · Listed uses: beverage, RO prefiltration, PCW, circulation, chemical, reclaimed water
完整規格 Full spec
- 型錄原名：PV/PH Single Bag High-Pressure Baghouse Filter（兩型號共用一張規格圖）。
- 型錄所列應用：飲料業、RO前處理、PCW過濾、循環過濾、化學製程、回收水過濾。
- 材質SUS304／SUS316／SUS316L；
- 入出口1/2"~3"螺牙或法蘭；
- 排放口3/4" PT-M；
- 排氣口1/4" PT-F；
- O型環EPDM，可選Viton或鐵氟龍披覆Viton；
- 設計壓力15 kg/cm²（225 psi）；
- 操作壓力10 kg/cm²（150 psi）；
- 表面處理外部電解、內部酸洗，可選X光或EP電解。
- 訂購代碼：PV用濾袋1／2（No.1／No.2）、口徑04~30（1/2"~3"）；
- PH用濾袋3／4（No.3／No.4）、口徑04~25（1/2"~2-1/2"）；
- 共用選項：材質4／6／6L、進出口位置SB／SS、接頭P／N／J／A／D／C、O型環E／V／S／N／Q、表面A酸洗、E電解、P拋光、S噴砂。
- PV零件（12項，中英對照）：把手、排氣口、O型環、上蓋、桶唇、單眼螺絲組、濾袋座、入水口、桶體、金屬內網、出水口、活動腳架。
- PV尺寸（A／B／C／D／E／F PCD／G，mm；
- 流量m³/hr／GPM；
- kg；
- L）：No.1 Ø232／735／545／176／515／Ø323／Ø12；20／90；34；
- 23——No.2 Ø232／1115／925／176／515／Ø323／Ø12；45／200；43；37。
- PH零件（13項，中英對照）：把手、上蓋、排氣口、O型環、單眼螺絲座、桶唇、單眼螺絲組、金屬內網、濾袋座、入/出水口、桶體、端板、活動腳架。
- PH尺寸：No.3 Ø180／485／350／150／350／Ø252／Ø12；4.5／20；18；
- 6.3——No.4 Ø180／585／450／150／350／Ø252／Ø12；9／45；21；7.8。
- （型錄將GPM誤印為「GMP」。）
- Catalog name: PV/PH Single Bag High-Pressure Baghouse Filter (one shared spec sheet for both models).
- Applications listed: beverage industries, RO prefiltration, PCW filtration, circulation filtration, chemical processing, reclaimed water filtration.
- Material SUS304 / SUS316 / SUS316L;
- inlet & outlet 1/2"–3" threaded or flange;
- discharge port 3/4" PT-M;
- exhaust port 1/4" PT-F;
- O-ring EPDM, optional Viton or Teflon-coated Viton;
- designed pressure 15 kg/cm² (225 psi);
- operating pressure 10 kg/cm² (150 psi);
- surface external electrolysis and internal pickling, optional X-ray or EP electrolysis.
- Ordering code: PV takes bag 1 / 2 (No.1 / No.2) and sizes 04–30 (1/2"–3");
- PH takes bag 3 / 4 (No.3 / No.4) and sizes 04–25 (1/2"–2-1/2");
- shared options: material 4 / 6 / 6L, position SB / SS, connection P / N / J / A / D / C, O-ring E / V / S / N / Q, finish A pickling, E electrolysis, P polished, S sandblasting.
- PV parts (12, bilingual): handle, vent, O-ring, top cover, shell flange, eye bolt, filter bag plate, inlet (入水口), shell, basket, outlet (出水口), support leg.
- PV dimensions (A / B / C / D / E / F PCD / G, mm;
- flow m³/hr / GPM;
- kg;
- L): No.1 Ø232 / 735 / 545 / 176 / 515 / Ø323 / Ø12; 20 / 90; 34;
- 23 — No.2 Ø232 / 1115 / 925 / 176 / 515 / Ø323 / Ø12; 45 / 200; 43; 37.
- PH parts (13, bilingual): handle, top cover, vent, O-ring, eye bolt socket, shell flange, eye bolt, basket, filter bag plate, inlet/outlet port (入/出水口), shell, bottom cover, support leg.
- PH dimensions: No.3 Ø180 / 485 / 350 / 150 / 350 / Ø252 / Ø12; 4.5 / 20; 18;
- 6.3 — No.4 Ø180 / 585 / 450 / 150 / 350 / Ø252 / Ø12; 9 / 45; 21;
- 7.8. (GPM is printed "GMP" on the source.)
開啟型錄原圖 Open original imageEnglish中英 1 / ZH–EN 1中英 2 / ZH–EN 2
下載型錄原圖 Download original imageEnglish中英 1 / ZH–EN 1中英 2 / ZH–EN 2
PM 大流量多袋式袋式過濾器 PM high-flow multi-bag filter housing (catalog name: PM High-Flow Multi-Bag Baghouse Filter)
- 每台 2~12 袋；尺寸表流量 90~540 m³/hr
- 材質 SUS304／SUS316／SUS316L；規格表寫 2"~15" 法蘭（訂購代碼只列到 12"）
- 設計壓力 10 kg/cm²（150 psi）；操作壓力 7 kg/cm²（100 psi）
- 型錄用途：飲料、RO 前處理、PCW、循環過濾、化工、回收水、電泳塗裝
2–12 bags per housing; 90–540 m³/hr in the dimension table · SUS304 / SUS316 / SUS316L; 2"–15" flange per spec table (order codes list up to 12") · Design 10 kg/cm² (150 psi); operating 7 kg/cm² (100 psi) · Listed uses: beverage, RO prefiltration, PCW, circulation, chemical, reclaimed water, electrophoretic coating
完整規格 Full spec
- 型錄原名：PM High-Flow Multi-Bag Baghouse Filter。
- 型錄所列應用：飲料業、RO前處理、PCW過濾、循環過濾、化學製程、回收水過濾、電泳塗裝過濾。
- 材質SUS304／SUS316／SUS316L；
- 入出口2"~15"法蘭；
- 排放口2" PT-M；
- 排氣口1/2" PT-F；
- O型環EPDM，可選Viton或鐵氟龍披覆Viton；
- 設計壓力10 kg/cm²（150 psi）；
- 操作壓力7 kg/cm²（100 psi）；
- 表面處理外部電解、內部酸洗，可選X光或EP電解。
- 訂購代碼：濾袋數2~12；
- 濾袋1／2（No.1／No.2）；
- 材質4／6／6L；
- 進出口位置BB底進底出、SS側進側出；
- 口徑20＝2"、25＝2-1/2"、30＝3"、40＝4"、50＝5"、60＝6"、80＝8"、Y＝10"、Y2＝12"；
- 接頭P／N／J／A／D／C；
- O型環E／V／S／N／Q；
- 表面A酸洗、E電解、P拋光、S噴砂。
- 註：規格表寫最大15"，訂購代碼只列到12"，此處不自行判定。
- 零件（18項，中英對照）：轉盤、螺桿、吊架（桿）、排氣口、上蓋、上蓋唇、環首螺母座、O型環、濾袋座、桶唇、單眼螺絲座、單眼螺絲組、桶體、金屬內網、端板、入/出水口、排放口、腳架。
- 尺寸表共27種配置（2PC~12PC，皆為Bag No.2，接頭3F~10F）：桶徑Ø406~Ø965 mm、總高B 1422~2161 mm、流量90 m³/hr（2袋）至540 m³/hr（12袋）、重量97~735 kg、容量116~854 L——各列數值請見型錄。
- Catalog name: PM High-Flow Multi-Bag Baghouse Filter.
- Applications listed: beverage industries, RO prefiltration, PCW filtration, circulation filtration, chemical processing, reclaimed water filtration, electrophoretic coating filtration.
- Material SUS304 / SUS316 / SUS316L;
- inlet & outlet 2"–15" flange;
- discharge port 2" PT-M;
- exhaust port 1/2" PT-F;
- O-ring EPDM, optional Viton or Teflon-coated Viton;
- designed pressure 10 kg/cm² (150 psi);
- operating pressure 7 kg/cm² (100 psi);
- surface external electrolysis and internal pickling, optional X-ray or EP electrolysis.
- Ordering code: number of bags 2–12;
- bag 1 / 2 (No.1 / No.2);
- material 4 / 6 / 6L;
- position BB bottom-in/bottom-out, SS side-in/side-out;
- size 20 = 2", 25 = 2-1/2", 30 = 3", 40 = 4", 50 = 5", 60 = 6", 80 = 8", Y = 10", Y2 = 12";
- connection P / N / J / A / D / C;
- O-ring E / V / S / N / Q;
- finish A pickling, E electrolysis, P polished, S sandblasting.
- Note: the spec table says up to 15" while the ordering codes stop at 12" — not resolved here.
- Parts (18, bilingual): turntable, screw rod, davit, vent, top cover, top cover flange, eye nut socket, O-ring, filter bag plate, shell flange, eye bolt socket, eye bolt, shell, basket, bottom cover, inlet/outlet port (入/出水口), drain, support leg.
- The dimension table lists 27 configurations (2PC to 12PC, all Bag No.2, with 3F–10F connections): shell Ø406–Ø965 mm, height B 1422–2161 mm, flow 90 m³/hr (2 bags) to 540 m³/hr (12 bags), weight 97–735 kg, capacity 116–854 L — see the original image for each row.
開啟型錄原圖 Open original imageEnglish 1中英 / ZH–ENEnglish 2
下載型錄原圖 Download original imageEnglish 1中英 / ZH–ENEnglish 2
檢驗、設備與封裝 Testing, Equipment & Packaging
檢驗認證 Testing & Certification
SGS 報告 PX/2020/A011301（受測樣品 MF02-M1，2020-10-23）：大腸桿菌除菌／清除率大於 99.9%。
SGS report PX/2020/A011301 (sample MF02-M1, 2020-10-23): E. coli removal/clearance rate above 99.9%.
明基透析科技報告 BDT-NT-231207（受測樣品 MF002，2023-12-20）：大腸桿菌除菌／清除率大於 99.9%。
BenQ Dialysis Technology report BDT-NT-231207 (sample MF002, 2023-12-20): E. coli removal/clearance rate above 99.9%.
台美檢驗科技（SUPERLAB）報告 M61-200200105（製造日期 2019/12，2020-02-13；同一份 5 頁報告的第 1、2 頁）：塑化劑與重金屬未檢出（僅適用該受測樣品）。
Taiwan–US Testing Technology (SUPERLAB) report M61-200200105 (mfd. 2019/12, 2020-02-13; pages 1–2 of the same 5-page report): no plasticizers or heavy metals detected (applies to this sample only).
各結果僅適用該受測樣品與日期，並非全產品線或本頁所列濾殼、濾芯的保證。
Each result applies only to the sample and date tested — not a guarantee for the whole product line or for the housings and cartridges listed on this page.
實驗設備 Laboratory Equipment
擁有通孔孔徑分析儀、水質分析儀等專業設備，提供孔徑、材料與水樣分析相關服務。
Our laboratory has a capillary flow porometer, a water-quality analyzer and other specialized equipment for pore-size, material and water-sample analysis.
討論分析需求時，可先提供樣品類型、材料或水樣來源、希望了解的項目及預定用途，方便確認適合的分析內容。
To discuss an analysis, describe the sample type, the material or water source, the questions you want answered and the intended application.
需要了解膜材孔徑或水樣分析項目，可洽詢技術資料與送樣需求。
Contact us for technical information and to discuss sample requirements.
客製化封裝 Custom Packaging
中空纖維膜可封裝為多種濾心尺寸，配合產品開發與設備整合需求，討論膜材、濾心尺寸及外部搭配方式。
Hollow-fiber membranes can be packaged into cartridges of different sizes for product development and equipment integration. Discuss membrane materials, cartridge dimensions and how the cartridge will fit your product.
洽詢時可提供預定用途、安裝空間、既有殼體或接口資料，以及預估數量；如已有尺寸圖或樣品，也可一併說明，作為討論封裝需求的依據。
For an inquiry, provide the intended application, available installation space, housing or connection details and estimated quantity. If drawings or samples are available, mention them to help define the packaging requirements.
需要規格或客製？ Need specifications or customization?
告訴我們用途、型號與數量，我們依可提供的資料回覆。
Tell us the use, model and quantity; we will reply with what we can provide.
